Hanwha XD 32 H Lathe

Show in original language

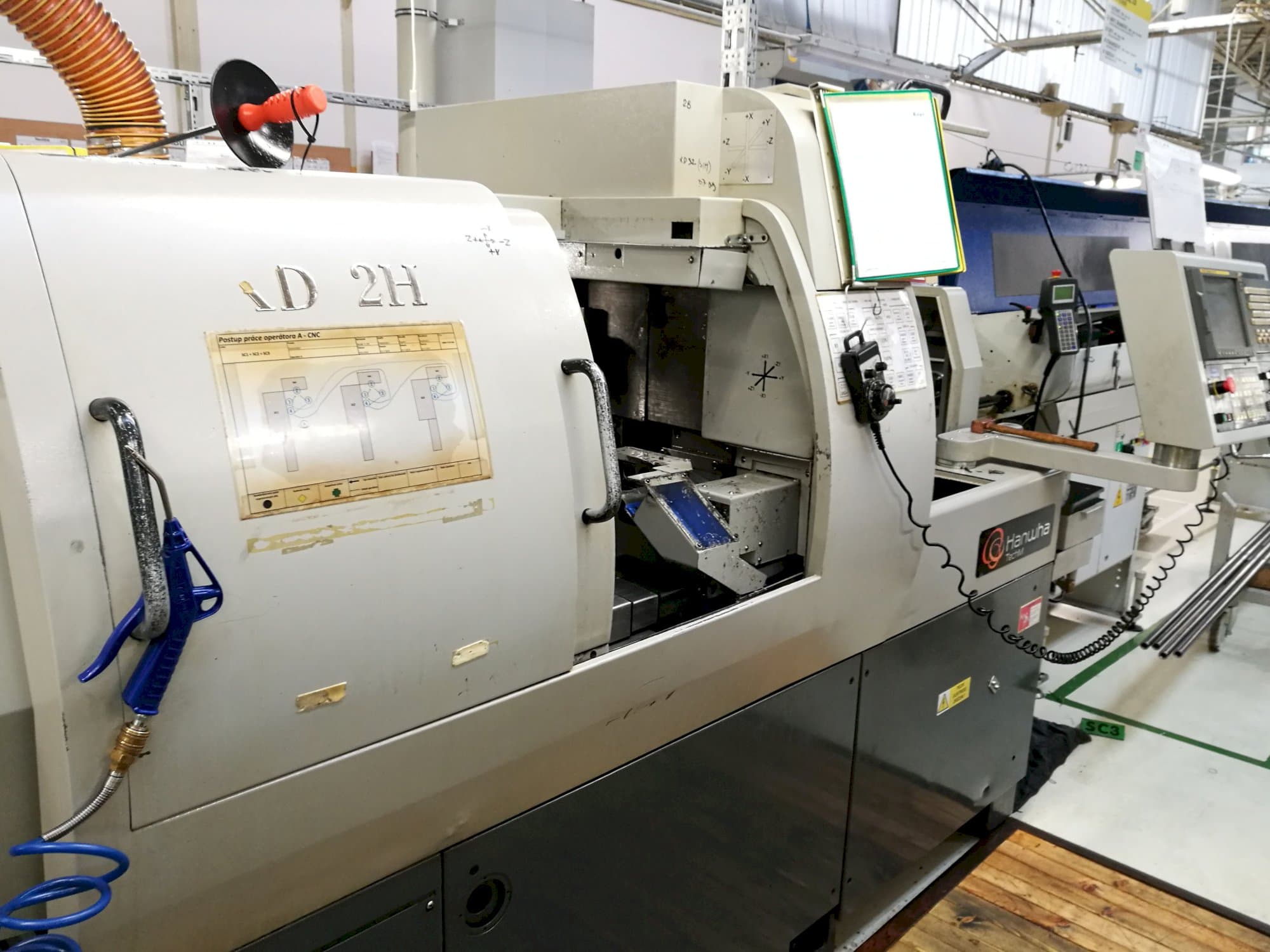

This Hanwha XD 32 H Lathe from 2007 was manufactured in South Korea and has a working record of 33000 production hours. Equipped with a FANUC Series 18i-TB, this machine counts with 5 axis, from which 2 are simultaneously controlled. It counts with 2 spindles working up to 8000 rpm with a boring of 38 mm. It presents outstanding conditions as it was was regularly serviced & maintained.

Overview

brand: Hanwha
year: 2007
MODEL: XD 32 H
production hours: 33000
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Hanwha XD 32 H

General Data

Measurements width: 2711 mm
Measurements depth: 1468 mm
Measurements height: 1793 mm
Machine weight: 4050 kg

Control Unit

Model: Series 18i-TB
CNC main language: Czech
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 8000 rpm 1/MIN

Movement

Z-AXIS Movement: 70 mm

Workpiece

Workpiece drm: 32 mm

Media

Chip conveyor: Yes

Additional Equipment

- Bar feeder SMART 332 E/R 44 LL (Year 2007)
- 125 collets + 50 pneumatic collets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
