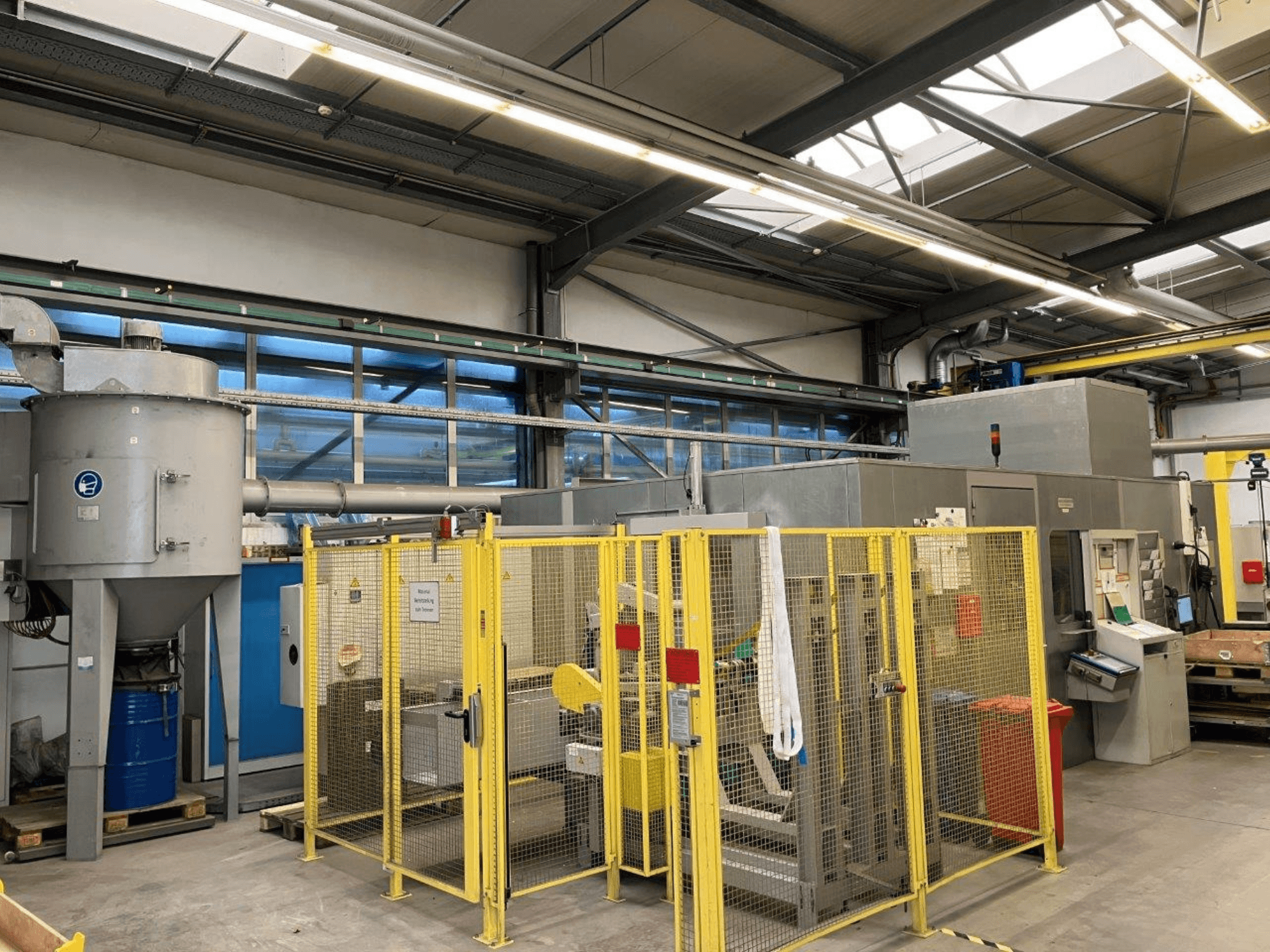

Complete cut-off grinding system manufactured in 2014. This HARALD BAUGMARTEN TM 400 S features a press force of 3500 kN and a cutting speed of approximately 30 mm/s at 500 kN. It includes a robust hydraulic system with a total drive power of 30 kW and a machine weight of around 13,000 kg. If you are looking to get high-quality cutting capabilities, consider the HARALD BAUGMARTEN TM 400 S complete cut-off grinding system we have for sale. Contact us for further details.
Overview
- brand: HARALD BAUGMARTEN
- year: 2014
- MODEL: TM 400 S
- production hours: 20652
- application type: Grinding
- Location: Germany
- machine type: Centerless Grinding Machine
- Available from: 01/05/2026
Technical Information - HARALD BAUGMARTEN TM 400 S
Dimensions
- Machine Height: 2380 mm
- Machine Length: 6800 mm
- Machine Weight: 13000 kg
- Machine Width: 1200 mm
Additional Information
Press (holding)
Force: 3500 kN
Stroke: 50 mm
Speed at 500 kN: approx. 30 mm/s
Speed at 3500 kN: approx. 4 mm/s
Return speed: 60 mm/s
Press (cutting)
Force: 2500 kN
Stroke: 100 mm
Speed at 500 kN: approx. 30 mm/s
Speed at 2500 kN: approx. 5 mm/s
Shock damping stroke: 20 mm
Drive and power
Hydraulic pump power: 2 × 15 kW
Total hydraulic drive power: 30 kW
Cooling unit power: 3 kW
Hydraulic unit power: 3 kW
Dimensions
Hydraulic unit footprint: approx. 1,770 × 2,380 mm
Pipe connections (machine to hydraulic unit)
2 × Ø38 × 4 mm
2 × Ø30 × 4 mm
1 × Ø20 × 3 mm
Mechanical adjustment tolerance: ±5 mm
Operating hours
Hydraulic unit 1: 20,652.8 h
Hydraulic unit 2: 20,641.8 h
Main system components (core machine)
Cut-off grinding machine type TM 400 S (manufacturer: Sema Systemtechnik)
Four-column press (manufacturer: Winter Pressen)
Hydraulic power unit with hydraulic pumps
Control cabinet and operator panel
Additional equipment
Automatic bar feeder with bundle loader
Bar breaking device
Bar rotary drive / measuring station
Weighing station with section sorting
Extraction and filter system
Soundproof booth (HüWa Schallschutz und Anlagenbau) and protective fencing
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
