➤ Used HARTFORD MVP-8A For Sale | gindumac.com

Show in original language

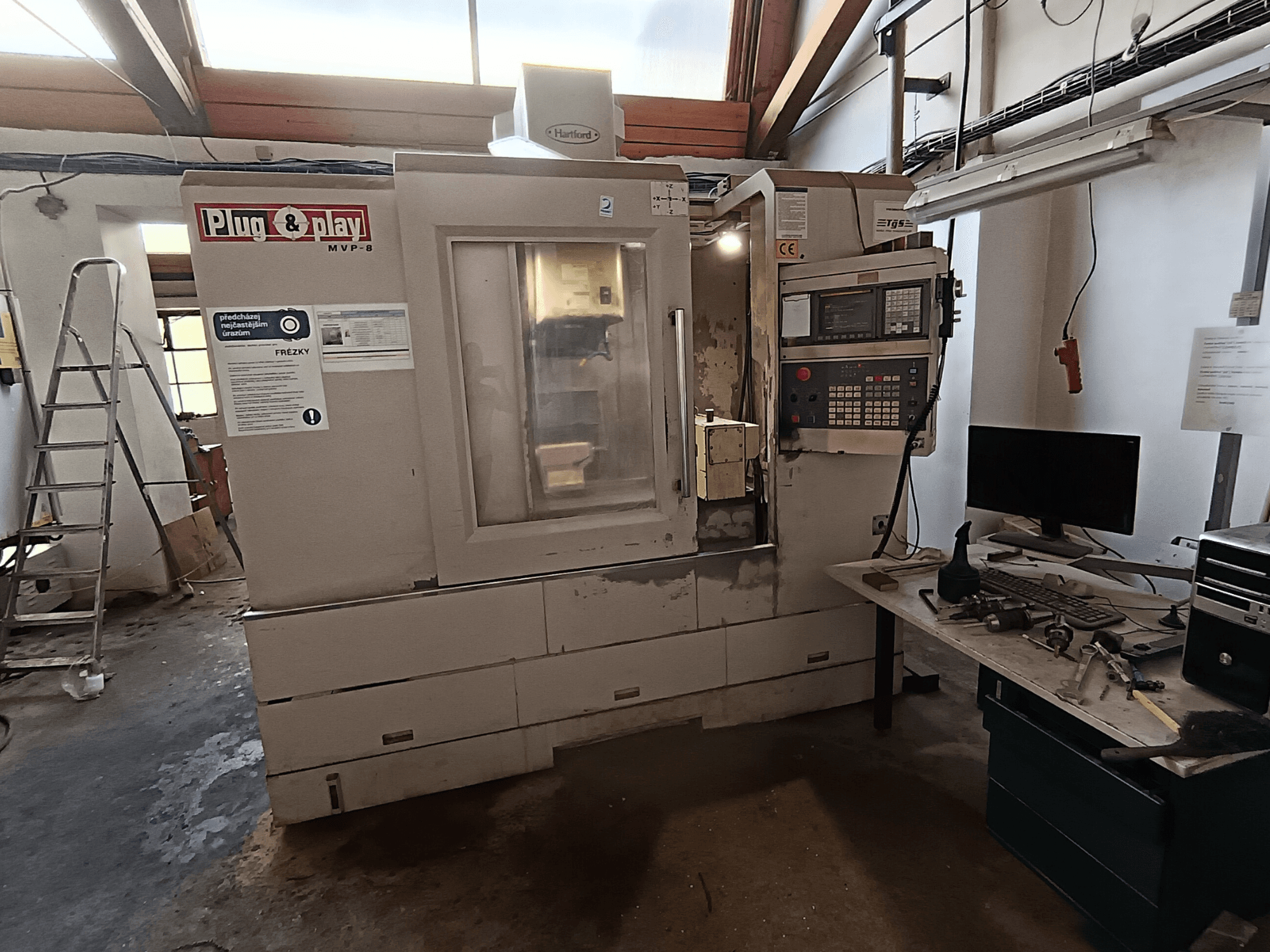

This 4-axis HARTFORD MVP-8A was manufactured in 2004. It features impressive travels of 860 mm in the X-axis, 530 mm in the Y-axis, and 630 mm in the Z-axis. The machine includes a robust table size of 1000 x 560 mm with a load capacity of 500 kg, and a maximum spindle speed of 10,000 rpm. If you are looking to get high-quality machining capabilities, consider the HARTFORD MVP-8A vertical machining centre we have for sale. Contact us for further details.

Overview

brand: HARTFORD
year: 2004
MODEL: MVP-8A
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - HARTFORD MVP-8A

Control Unit

Control Brand: FANUC

Dimensions

Machine Weight: 6600 kg
Table Load: 500 kg

Movement

Number of Axes: 4
X-axis Travel: 860 mm
Y-axis Travel: 530 mm
Z-axis Travel: 630 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40
Tool Stations: 24

Additional Information

Distance table–spindle face: max. 705 mm
Table dimensions: 1000 × 560 mm
Rapid traverse (X/Y/Z): 24 / 24 / 24 m/min (linear guides)
Automatic tool changer (ATC): 24 positions, arm-type
Control system: Fanuc 21i (black and white display) + Hartrol AI100

Additional equipment

4th axis rotary table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
