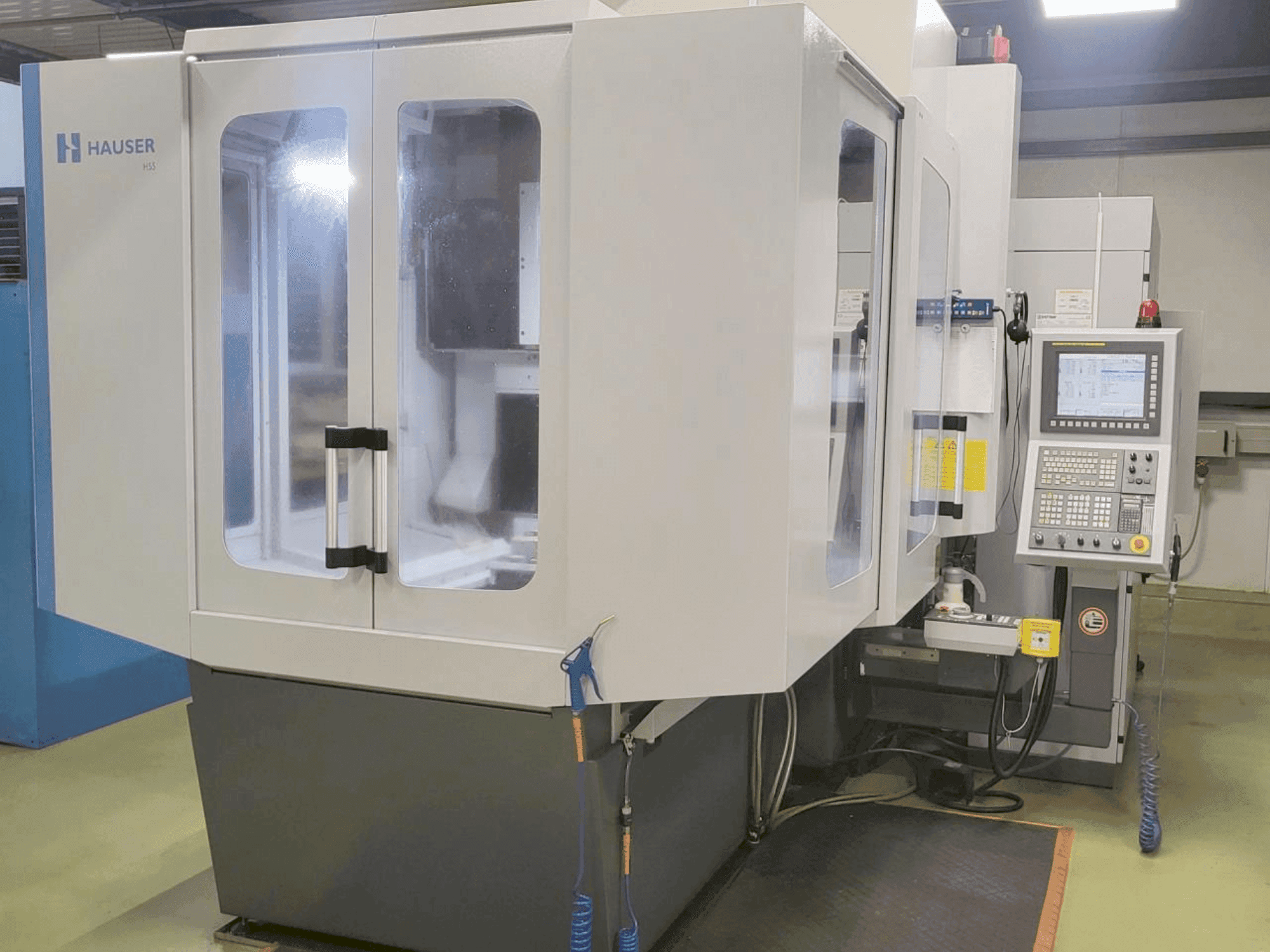

This 5-axis HAUSER KELLENBERGER H55-400 was manufactured in 2019, designed for precision internal grinding. Ideal for complex geometries, it offers advanced control for high accuracy. Consider the opportunity to buy this HAUSER KELLENBERGER H55-400 internal grinding machine. Contact us for more information.
Overview
- brand: HAUSER
- year: 2019
- MODEL: KELLENBERGER H55-400
- application type: Grinding
- Location: Switzerland
- machine type: Internal Grinding Machine
- control unit brand: FANUC
Technical Information - HAUSER KELLENBERGER H55-400
Control Unit
- Control Brand: FANUC
- Control Model: §==I
Movement
- Number of Axes: 5
Additional Information
Machine Benefits
Technical Machine Benefits
- Grinding spindle (z-c-u):spindle sleeve diameter: 125 mm
- Standard speed ranges (40s motor): continuously adjustable, programmable 4000–40000 rpm
Extra Information
Workpiece Machine Capacity: X, Y axis travel: 1300 x 800 mm Vertical travel of grinding head (W axis): 635 mm Clearance between table and U-axis grinding motor mounting plate: 905 mm Clearance between table and HSK25 tool holder (70S grinding motor nose): 0–710 mm Distance between columns: 970 mm Grinding Diameters (Planetary Grinding Mode): With Ø50mm wheel (70S motor): Automatic mode (central U-axis position): max. 144 mm Semi-automatic mode (offset U-axis position): max. 234 mm With intermediate plate: max. 360 mm With Ø100mm wheel (40S motor): Automatic mode (central U-axis position): max. 194 mm Semi-automatic mode (offset U-axis position): max. 284 mm With intermediate plate: max. 360 mm Taper grinding (option): Up to 120° (divergent/convergent) Table Usable surface: 1440 x 860 mm Movement Feed Rates: X/Y axis slides: Working feed: 0–2000 mm/min Rapid traverse: 4000 mm/min W axis (vertical slide): Working feed: 0–2000 mm/min Rapid traverse: 4000 mm/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
