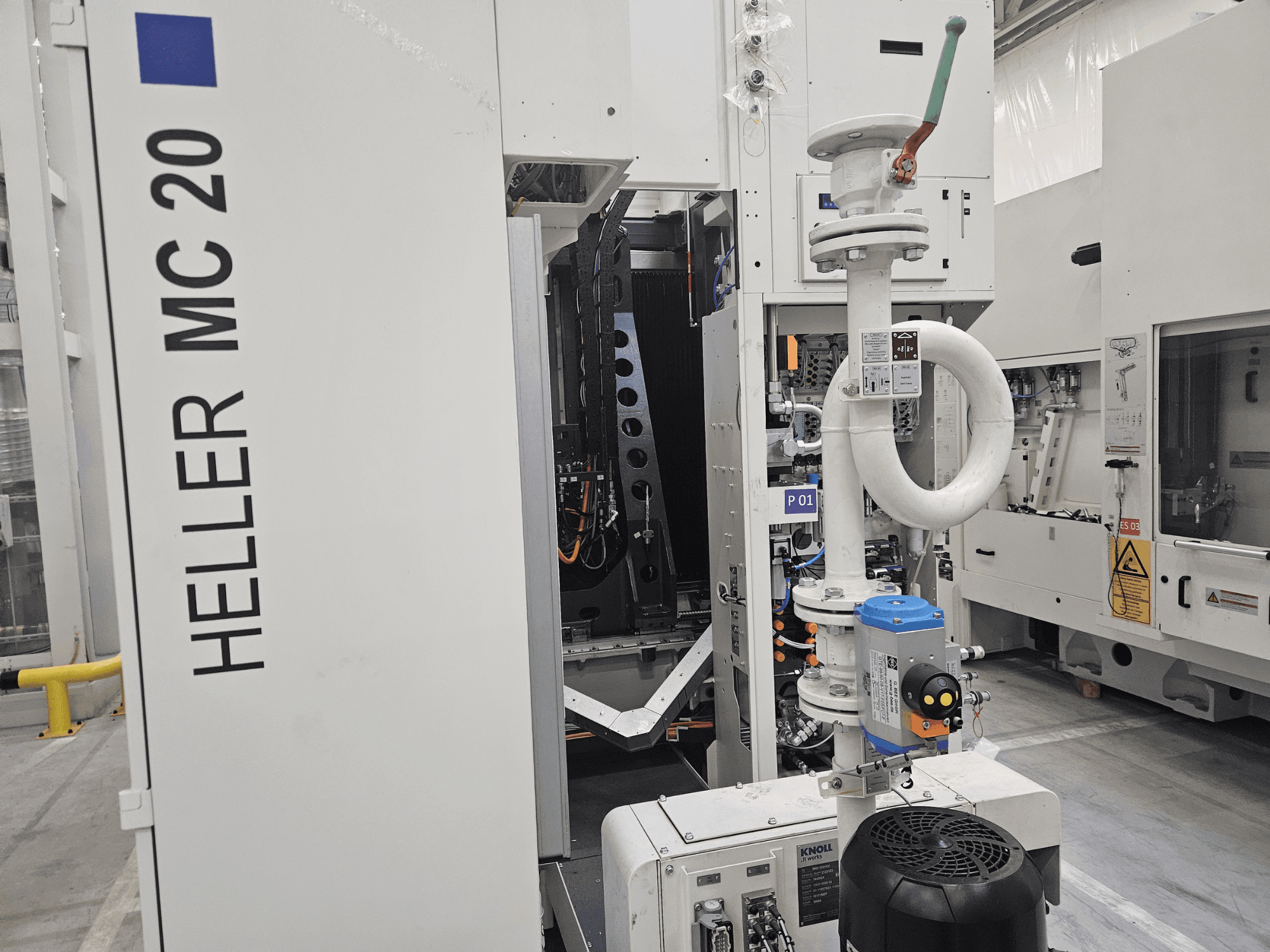

This 5-axis HELLER MC 20 was manufactured in 2019. It features a Siemens 840D sl control system, X/Y/Z travels of 800/750/800 mm, and rapid traverse rates up to 60,000 mm/min. The spindle supports HSK-A63 tools with speeds up to 16,000 rpm. Includes a 44-position tool magazine and a rotary table with a 520 mm diameter. Ideal for complex machining tasks. Contact us for more information about this machine.
Overview
- brand: HELLER
- year: 2019
- MODEL: MC 20
- application type: Milling
- Location: Poland
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER MC 20
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D sl
Dimensions
- Machine Height: 4000 mm
- Machine Length: 5300 mm
- Machine Weight: 13000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 750 mm
- Z-axis Travel: 800 mm
Technical Specification
- Max. Tool Weight: 12 kg
- Spindle Power: 34 kW
- Spindle Speed: 16000 RPM
Additional Information
Working area
Feed forces (X/Y/Z): 10,000 N
Speeds and dynamics
Rapid traverse X/Y/Z: 60,000 mm/min
Acceleration: X 7 m/s², Y 8 m/s², Z 6 m/s²
Spindle / machining unit (HSK-A63)
Tool interface: HSK-A63
Spindle diameter in front bearing: 70 mm
Tool management
Tool magazine type: HSK-A63
Number of tool positions: 44
Max tool weight with all pockets occupied: 6 kg
Max tool length: 550 mm
Max tool diameter: with all pockets occupied 120/80/80 mm; with adjacent pockets free 150 mm
Minimum chip-to-chip time (VDI): approx. 3.3–4.4 s
Rotary axes (A/B/AB)
Rotary table diameter (A/B axis): 520 mm
Interference circle diameter: A-axis 1260 mm; AB-axis/B-axis 800/900 mm
Speed: A-axis 17 rpm; B-axis/AB-axis 40/50 rpm
Indexing resolution: A-axis 360,000 × 0.001°; B-axis 360,000 × 0.001°
Indexing accuracy (VDI/DGQ 3441): A-axis 12 arc sec; B-axis 10 arc sec
Measuring system
Position measuring system: Direct, absolute linear scales
Installation data
Power supply: 400 V / 50 Hz
Total connected load: approx. 27–30 kVA
Compressed air requirement: 4.5–6 bar
Additional equipment
Machine is in very good technical condition
Complete service documentation available
Dedicated loading and unloading system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
