HERMLE - C 30 UDE-MIL-HER-2003-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HERMLE C 30 U For Sale | gindumac.com

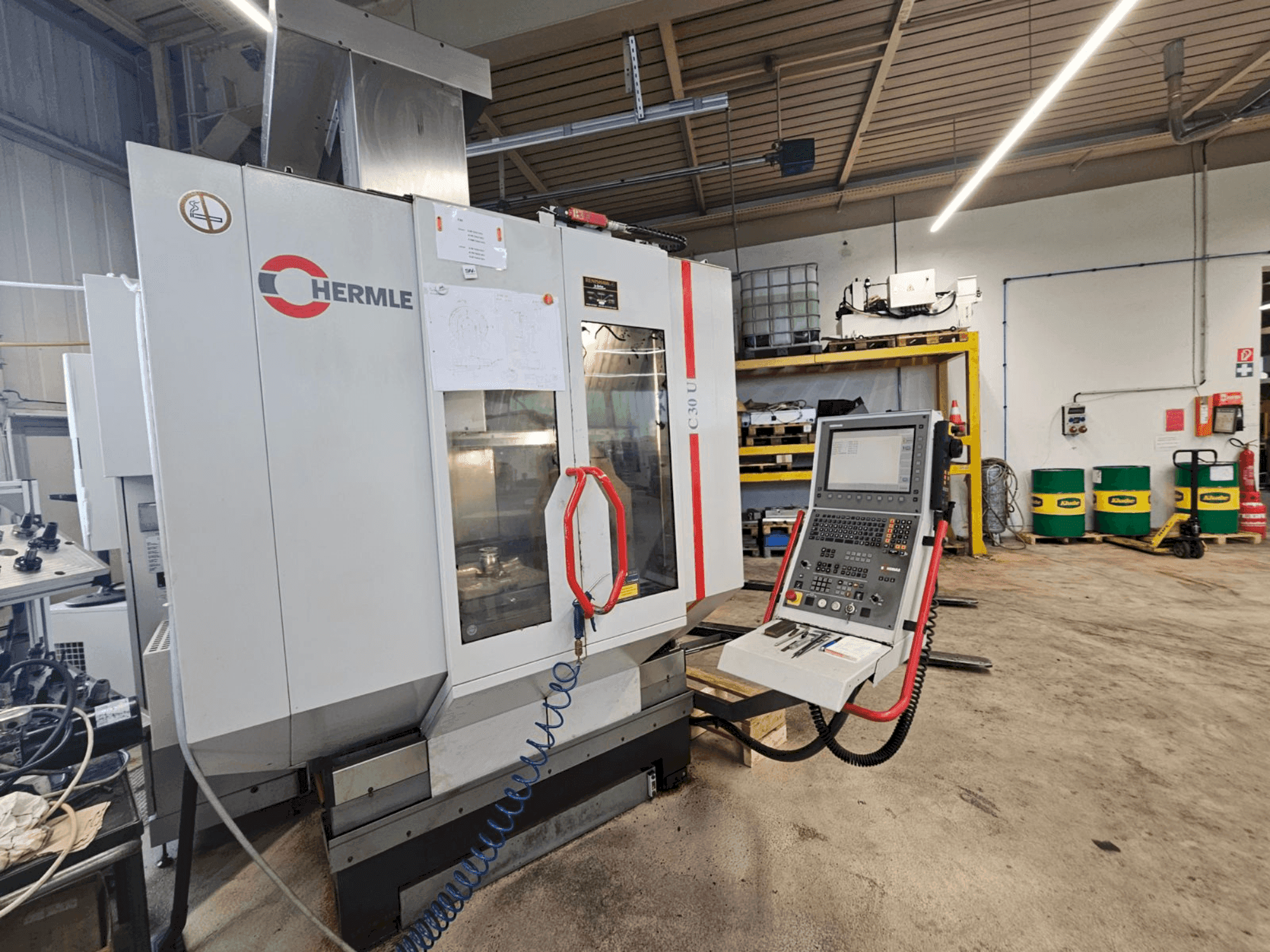

This 5-axis HERMLE C 30 U was manufactured in 2003, featuring a Heidenhain iTNC 530 control, 650 mm X-travel, 600 mm Y-travel, and 500 mm Z-travel. It includes a rotary table diameter of 630 mm and a high-speed spindle up to 18,000 rpm. Ideal for complex, multi-dimensional machining. If you are looking to get high-quality milling capabilities consider the HERMLE C 30 U machine we have for sale. Contact us for more information.
Overview
- brand: HERMLE
- year: 2003
- MODEL: C 30 U
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C 30 U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 1500 mm
- Machine Height: 3500 mm
- Machine Weight: 9500 kg
- Table Load: 1000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 650 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 10 kW
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- 3D probe included
Machine Benefits
Technical Machine Benefits
- Acceleration: 10 m/s²
- Feed force: 8500 n
- Rotary table diameter: 630 mm
- Centering bore: 32 h7
- Rotatable c: 360°
- Number of tool positions: 32 positions
- Max. Tool diameter with free adjacent tool box: 125 mm
- Total power requirement: 43 kva
Extra Information
Machine still under power
