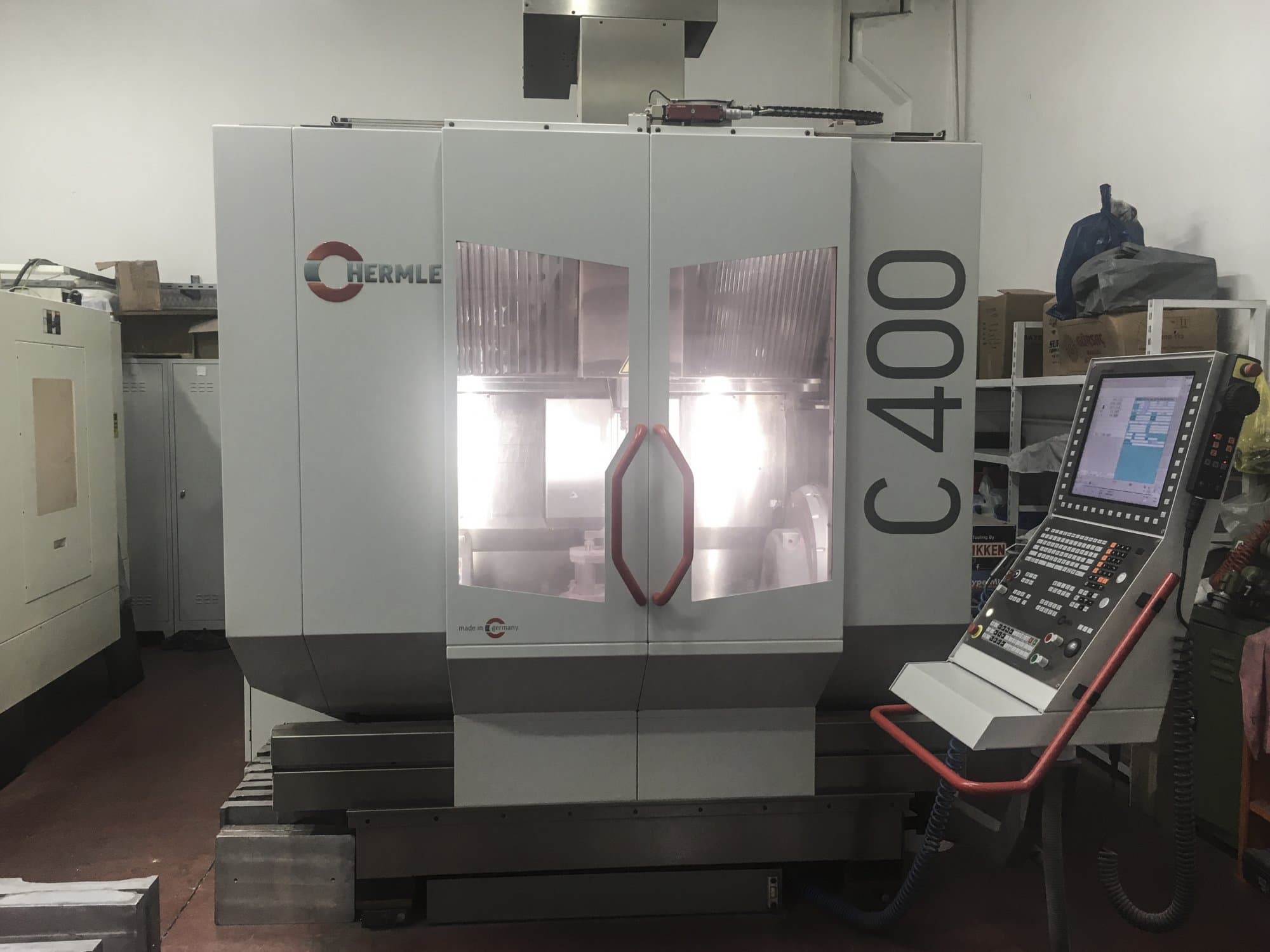

This HERMLE C 400 U Vertical Machining Center from 2015 was manufactured in Germany and has a total of only 9118 production hours. Equipped with a HEIDENHAIN iTNC 530 Control unit, this 5 axis machine with 440 mm rotary table has exclusively worked with SIBA materials during the past and is in excellent conditions. This machine has a standard non-pressurized internal coolant supply with paper band filter installed. It can be upgraded to a pressurized system with a manually adjustable capacity of up to 40 bar or 27L/min max. pressure.
Overview
- brand: HERMLE
- year: 2015
- MODEL: C 400 U
- production hours: 9118
- application type: Milling
- Location: Turkey
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
- GINDUMAC ID: TR-MIL-HER-2015-00001
Technical Information
General Data
- Machine weight: 10500 kg
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC 530
Main drive
- Number of spindles: 1
- Spindle speed range: 18000 1/min
Movement
- X-AXIS Movement: 850 mm
- Y-AXIS Movement: 700 mm
- Z-AXIS Movement: 500 mm
Workpiece
- Workpiece weight: 600 kg
Tools
- Slots in storage: 38
- Max weight: 152 kg
- Max tool diameter: 80 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 34 kVA
- Lubrication tank: 250 L
- Internal cooling: Yes
- Cooling pressure: 40 bar / 27 l/min
Additional Equipment
- - KinematicOpt hardware
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
