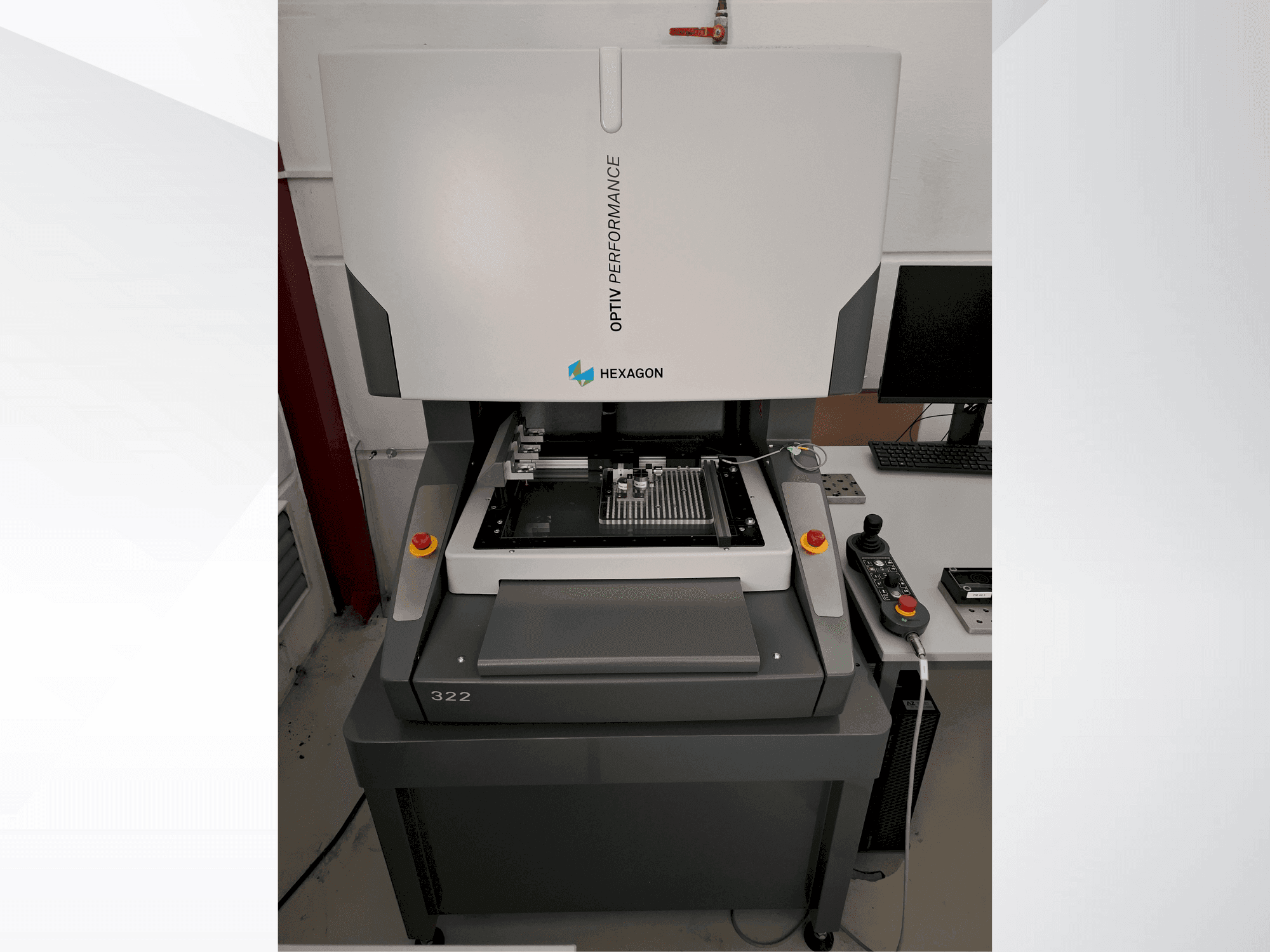

Hexagon - Optiv Performance 322DE-MEA-HEX-2019-00001

Machine Benefits

Qualitative Machine Benefits

• Frequency: 50/60 hz ± 5%
• Power consumption: 600 va
• Noise emission: a-weighted sound pressure level < 70 db(a)

Technical Machine Benefits

• Vision: 300 mm (x), 200 mm (y), 200 mm (z)
• Probe: 300 mm (x), 200 mm (y), 200 mm (z)
• Cws: 260 mm (x), 200 mm (y), 20 0mm (z)
• Vision/probe: 240 mm (x), 200 mm (y)
• All sensors: 158 mm (x), 200 mm (y), 200 mm (z)
• Max traverse speed: 300 mm/s (per axis), 500 mm/s (vector)
• Uncertainty: iso 10360-7 (optical): ex, ey = (1. 5 + l/250) µm, exy = (1. 9 + l/250) µm, ez = (1. 9 + l/250) µm iso 10360-2 (hp-s-x1c): mpes = (1. 9 + l/250) µm, mpep = 1. 9 µm, mperhp = 2. 9 µm (t = 75 sec)
• Scale resolution: 5 nm
• Max load capacity on glass plate: 20 kg
• Voltage: 115–230 v ± 10%

Extra Information

Machine still under power
