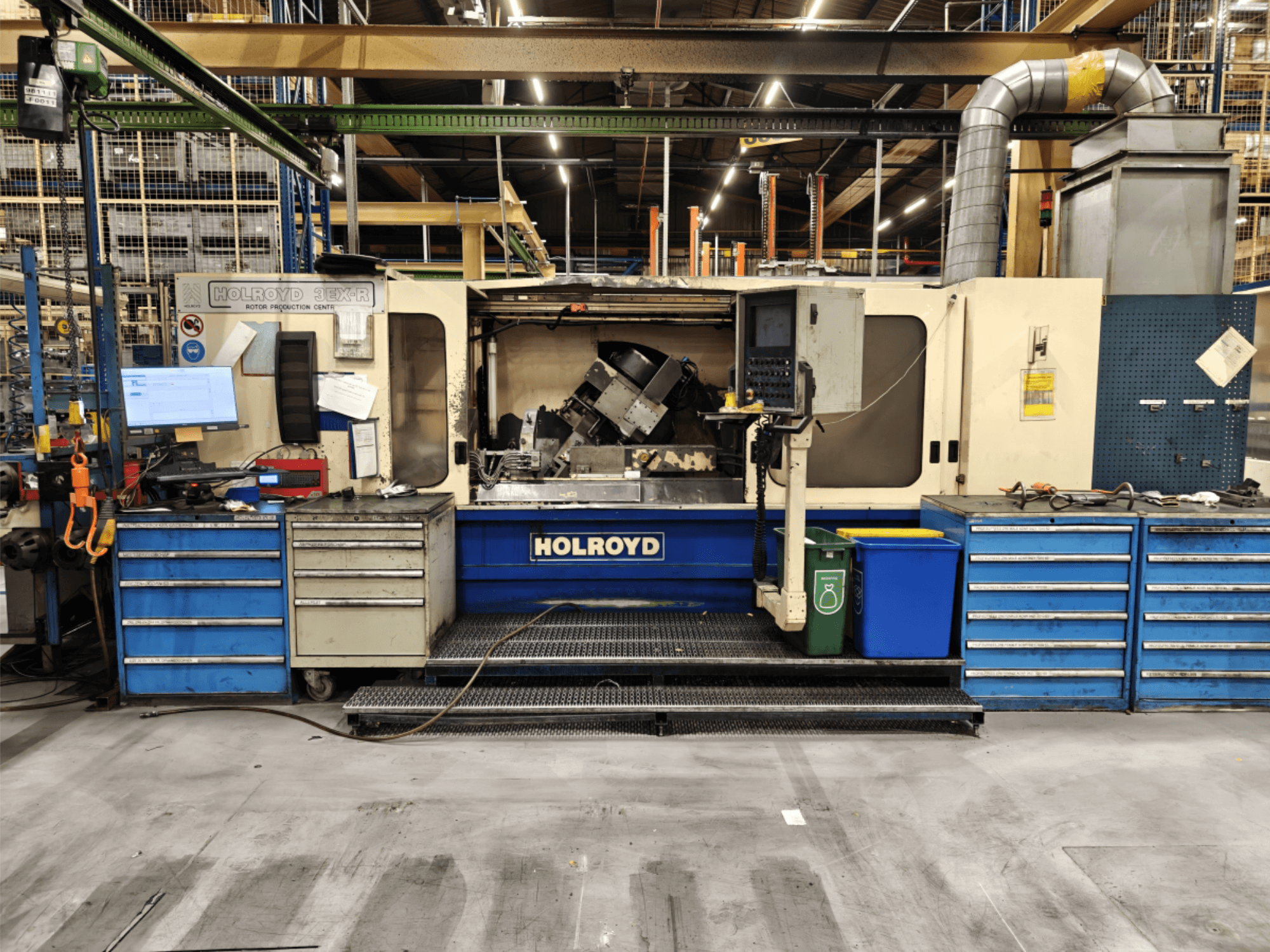

This 4-axis Holroyd 3EX-R CNC rotor profile milling machine was manufactured in 1999. It features a maximum workpiece diameter of approximately 350 mm and a length capacity of 1,550 mm, making it suitable for high-precision rotor and shaft machining. If you are looking to get high-quality milling capabilities, consider the Holroyd 3EX-R machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: HOLROYD
- year: 1999
- MODEL: 3EX-R
- application type: Other Machine Tools
- Location: Belgium
- machine type: Machine Tool
- control unit brand:
Technical Information - HOLROYD 3EX-R
Dimensions
- Machine Length: 7700 mm
- Machine Weight: 13000 kg
- Machine Width: 6670 mm
Movement
- Number of Axes: 4
Technical Specification
- Spindle Speed: 500 RPM
Additional Information
Machine Type: Holroyd 3EX-R CNC Rotor Production Centre
Maximum Work Diameter: 350 mm
Minimum Work Diameter: 100 mm
Maximum Length (Workspindle Chuck to Tailstock Centre): 1550 mm
Maximum Travel of Workhead Gearbox: 1160 mm
Maximum Length (Workspindle Nose to Cutter Spindle Centre-line): 1363 mm
Minimum Distance (Workspindle Nose to Cutter Spindle Centre-line): 203 mm
Maximum Distance (Workspindle Centre-line to Cutter Spindle Centre-line): 460 mm
Minimum Distance (Workspindle Centre-line to Cutter Spindle Centre-line): 160 mm
Range of Leads: 10-2000 mm
Range of Feedrates (along the helix): 25-1000 mm/min
Rapid Traverse Rate (traverse): 10,000 mm/min
Rapid Traverse Rate (infeed): 4,000 mm/min
Workhead Spindle Speed: 0.5-5 RPM
Tailstock Quill Stroke: 150 mm
Range of Cutter Spindle Speeds: 50-500 RPM
Maximum Diameter of Cutter: 400 mm
Recommended Diameter of Cutter: 250 mm
Maximum Width of Cutter: 160 mm
Cutter Spindle Interface: ISO 50 Type 'B' ("ANSI")
Angle Setting of Cutter Spindle from Horizontal: $0\pm55^{\circ}$
Infeed Position Repeatability: 0.005 mm
Divide Accuracy of Machine (on 250 dia): 0.010 mm
Lead Accuracy of Machine (in 300mm): 0.010 mm
Cutter Drive Motor Power: 63 KW (1500-2500 RPM)
Approximate Weight (Machine Only): 13,000 kg
Approximate Floor Space: $7,700 \times 6,670$ mm
Electrical Supply: 3 phase A.C. (variation no more than +/- 6% from nominal)
Included Features: Climb milling, Multi-pass milling cycle, Taper cutting, Tungsten carbide cutter equipment, Hydraulic tailstock, Recirculating Filtermist Unit, Automatic lubrication system, Calibrated recirculating ball lead screws, Machine lighting, Air-conditioned control cabinet
CNC Control: Holroyd designed closed loop system with 3.5" disc storage and automatic diagnostics
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
