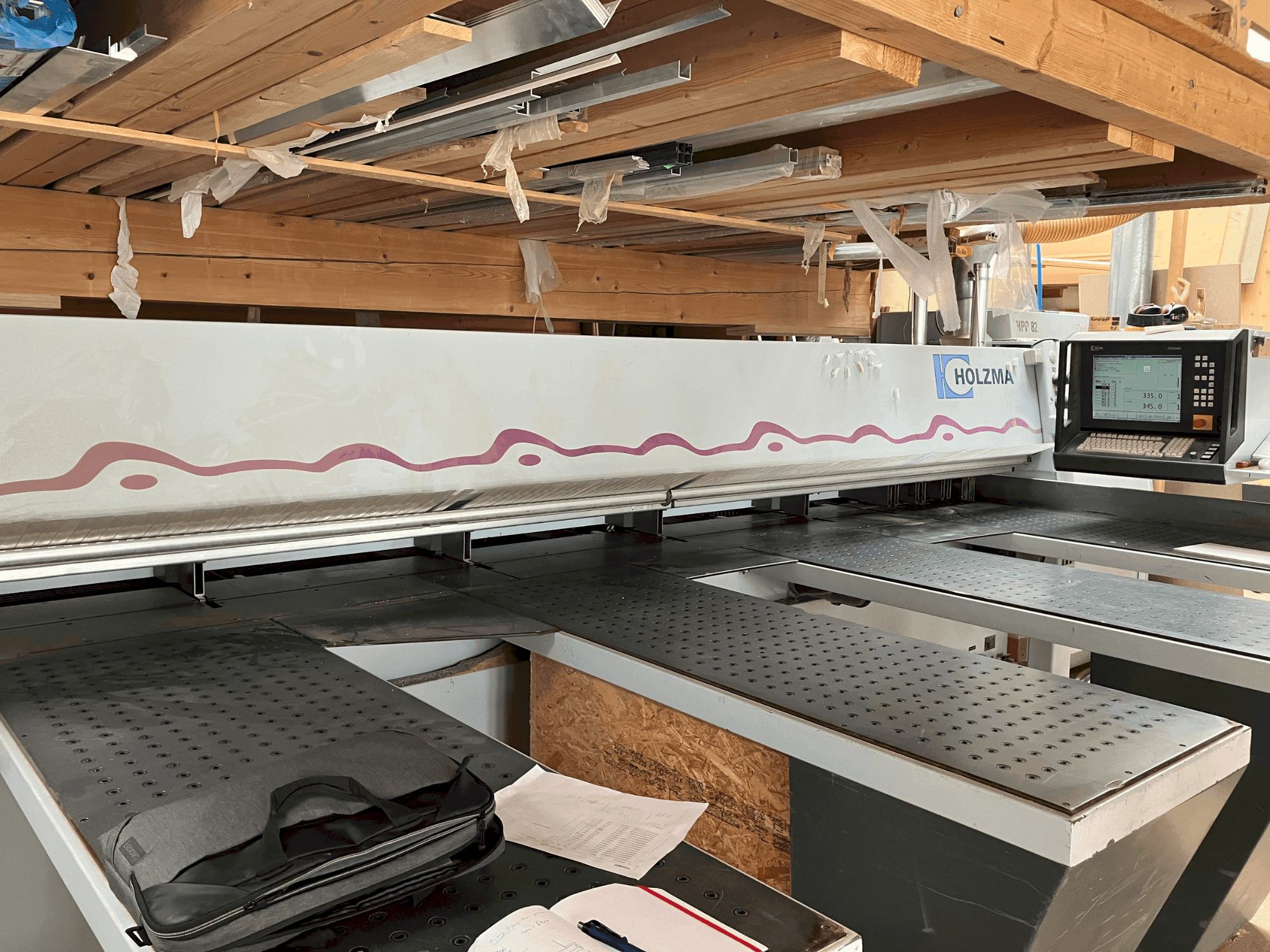

HOLZMA - HPP 82/43DE-SAW-HOL-2001-00001

Additional Equipment

• - 7 Collets: First three are two-fingered, all others are single-fingered
• - 2 Additional Two-Fingered Collets Possible
• - 1 Additional Single-Fingered Collet Possible

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Ce-tested // gs-tested fph // dust-tested
  • - Collet opening max. : 100 mm
  • - Cutting length: 4300 mm
  • - Cutting width: 4250 mm
  • - Air cushion table: 1 table 2160 x 650 mm and 3 tables 1760 x 650 mm with blower
  • - Saw carriage feed forward speed: 5 - 125 m/min // saw carriage feed reverse speed: 125 m/min
  • - Program slide speed forward/reverse max. : 80 m/min
  • - Saw blade diameter: 380 mm // saw blade projection: 95 mm
  • - Main saw blade: hm 380 x 48 x 60
  • - Scoring saw blade: hm 180 x 48 - 58 x 45

Extra information

• - Media Compressed Air: 6 bar Operating Voltage: 400 V / 50 Hz Operating Temperature Min.: +5 °C Operating Temperature Max.: +35 °C Minimum Extraction Speed at Extraction Nozzle: Approx. 26 m/s Extraction Connection for Chip Channel: 1 x 200 mm Extraction Connection for Pressure Beam: 1 x 150 mm
