HULLER HILLE - DVH 150 DuoDE-TUR-HUL-1999-00001

Name: HULLER HILLE DVH 150 Duo
Brand: HULLER HILLE
SKU: DE-TUR-HUL-1999-00001
Price: 14000 EUR
Availability: InStock

14,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HULLER HILLE DVH 150 Duo For Sale | gindumac.com

Show in original language

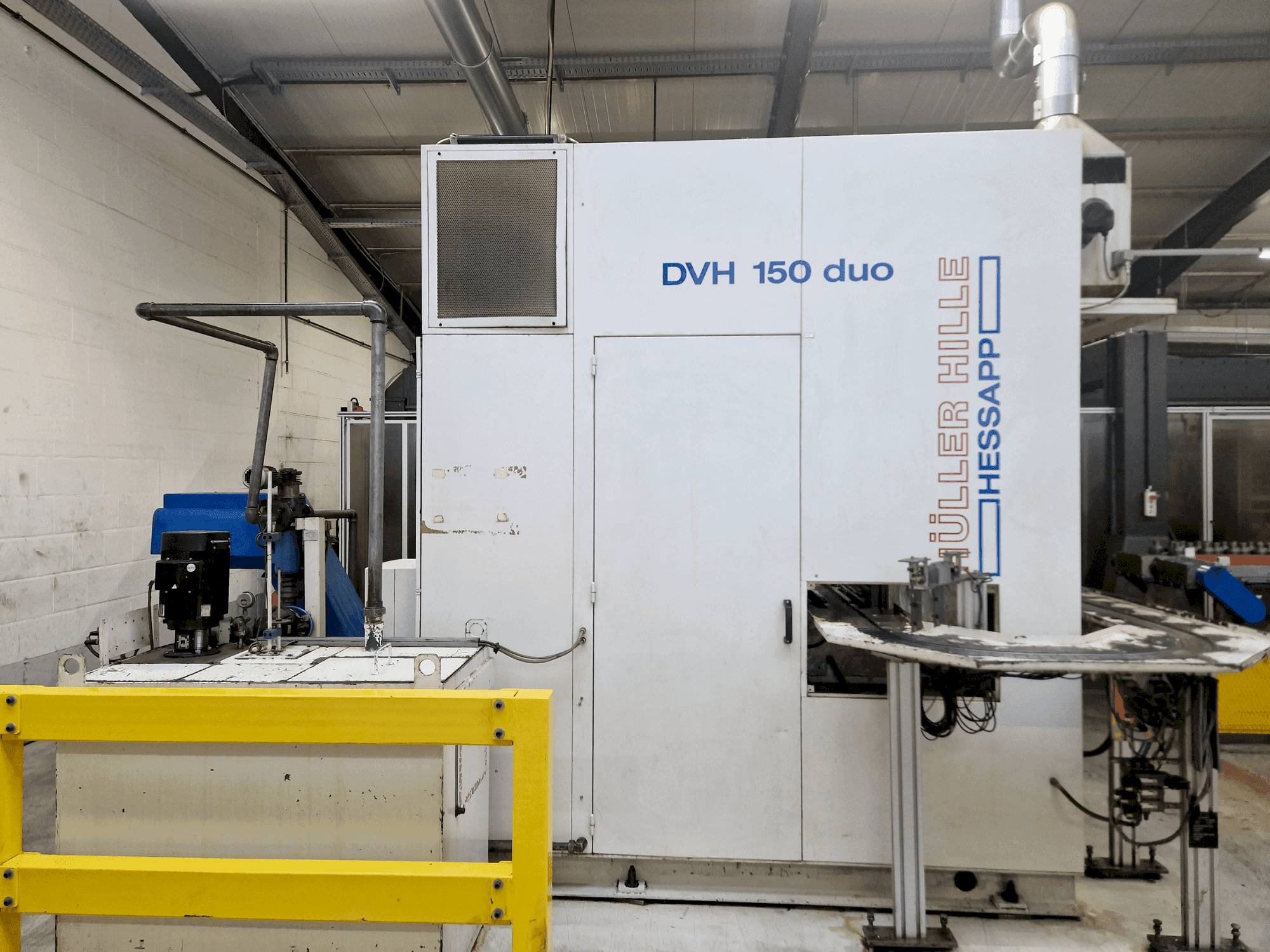

This 3-axis HULLER HILLE DVH 150 Duo vertical turning machine was manufactured in 1999. It features a maximum turning diameter of 160 mm and a swing diameter of 200 mm. Equipped with a Siemens 840D CNC control, it offers high precision and efficiency with speeds up to 7500 rpm and rapid traverse rates up to 60,000 mm/min. Ideal for complex turning tasks, the HULLER HILLE DVH 150 Duo machine we have for sale. Contact us for further details.

Overview

brand: HULLER HILLE
year: 1999
MODEL: DVH 150 Duo
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
control unit brand: SIEMENS

Technical Information - HULLER HILLE DVH 150 Duo

General Data

Machine weight: 8000 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 50 - 7500 rpm 1/MIN
Spindle motor power: 13.5 kW (100% duty cycle), 20.5 kW (40% duty cycle)

Additional Information

Additional equipment

Central lubrication system

Machine Benefits

Technical Machine Benefits

X-axis: roller guide / z-axis: glide guide
X-axis roller guide and z-axis glide guide, maximum axis speeds: x-axis 60,000 mm/min, z-axis 30,000 mm/min, maximum feed rate: 30,000 mm/min, maximum rapid traverse: 60,000 mm/min
Maximum swing diameter: 200 mm / maximum workpiece and chuck height: 220 mm
Spindle diameter in front bearing: 80 mm
Machine connection power: 45 kw
Ball screw pitch: x-axis 20 mm, z-axis 10 mm
Central lubrication interval: 15,000 m, amount: 4 cycles

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
