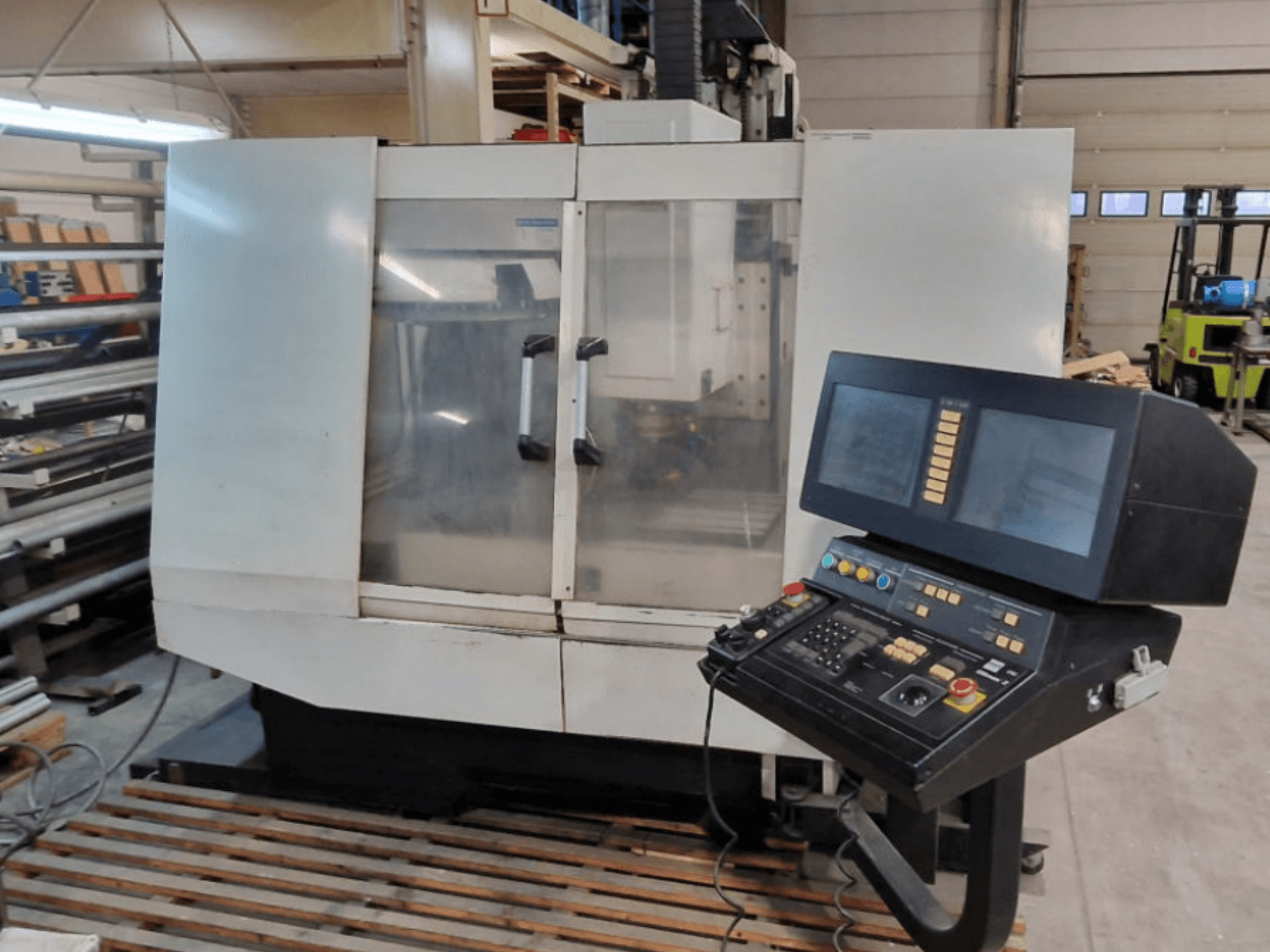

Hurco - BMC30APDE-MIL-HUR-1994-00001

- Display: TFT

- Spindle Speed Range: 30 - 6,000 RPM

- Gear / Speed Adjustment: Two-stage gearbox; infinitely variable per range

- Tool Changer Type: Umbrella type, automatic

- Coolant Supply: Flood cooling

- Chip Conveyor: Available

- DXF Option: Available on control and floppy disk

- Computer Connection: 9-pin; RS-232 (Port 1)

- Installed Software Version / Hardware: Ultimax 3 V1.53

- Operating Voltages: 440 / 415 / 380 / 220 V, 3-phase

- Mains Frequency / Apparent Power: 50-60 Hz / 20 kVA

- Rapid Traverse Rate: 15 m/min

- Compressed Air Requirement / Operating Pressure: 6 bar

- Included Documentation:

- Parts Listings & Wiring Diagrams - BMC 30 (1991, English)

- Machine Operation and Maintenance (11/1993 Rev. B, English)

- Options Manual Ultimax 4 (2004 Rev. A, German)

- 2x BMC Operator Manual: BMC 30 with Ultimax 3 (06/1995 Rev. C, German)

- Included Software & Backup Floppy Disks:

- Optikey Utility Disk - Security Modifier Mill V1.52-V1.59

- Optikey Utility Disk - Software Option DXF

- Ultimax 3 Version 1.53 - Disk 1 and Disk 2

- Ultimax 3 Machine Configuration

- Backup Machine Config

- Condition & Repair Notes: Machine needs to be rebooted via floppy disks because the buffer battery was depleted. One circuit board was repaired by the machine lab (new capacitors and a new Intel processor installed).
