Hurco - VM10iIT-MIL-HUR-2016-00003

33,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

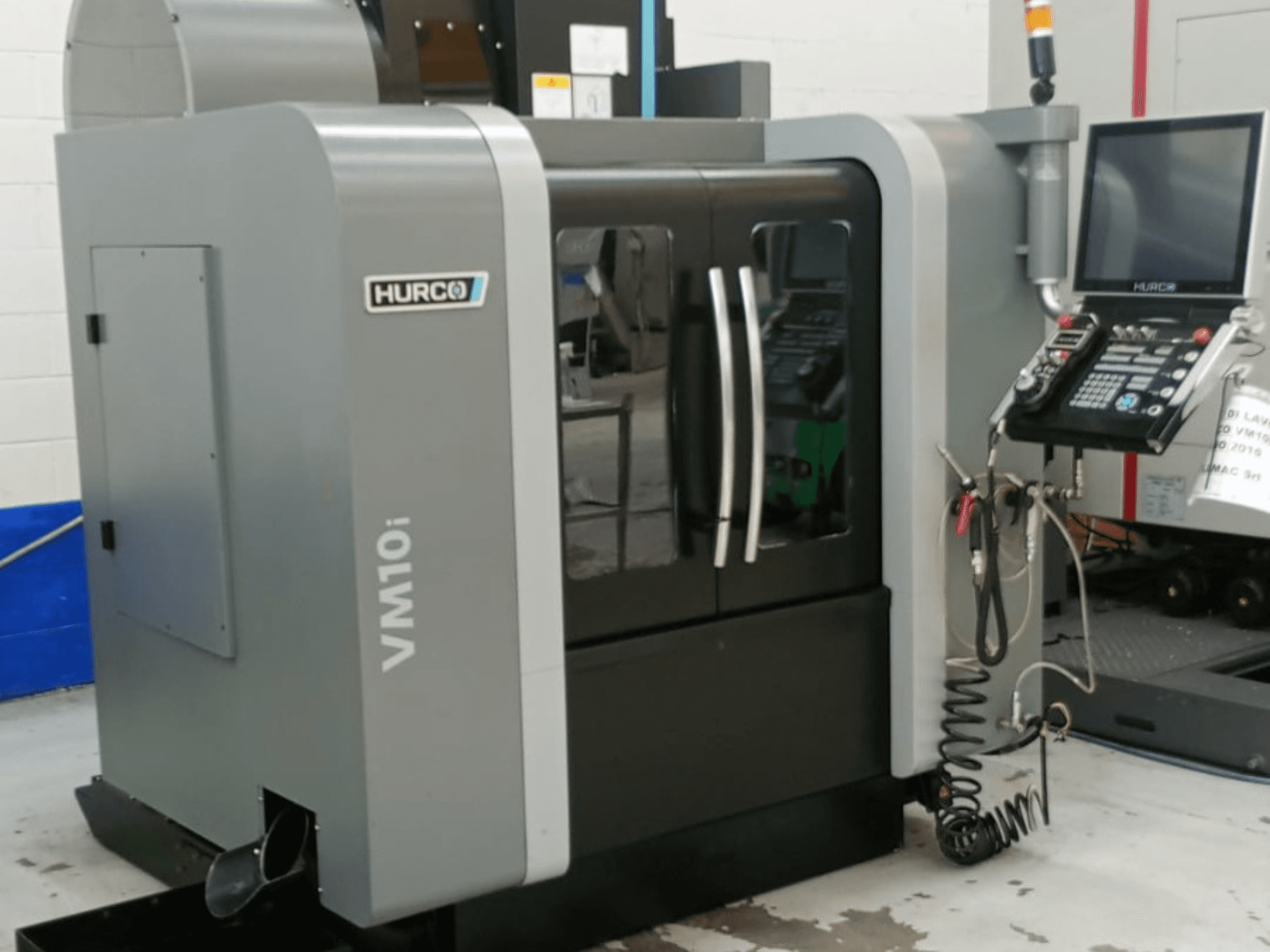

This 3-axis Hurco VM10i was manufactured in 2016. It features an X-axis travel of 661 mm, Y-axis travel of 407 mm, and Z-axis travel of 508 mm. The machine includes a robust table size of 762 x 406 mm and a maximum table load of 1,500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VM10i vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Hurco
  • year: 2016
  • MODEL: VM10i
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - Hurco VM10i

Dimensions

  • Table Load: 1500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 661 mm
  • Y-axis Travel: 407 mm
  • Z-axis Travel: 508 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Power: 11 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: ISO 40
  • Tool Stations: 24

Additional Information

  • CNC Control: HURCO MAX 5 (WinMax software version V10.01.131.12)

  • Table Dimensions: 762 x 406 mm

  • T-Slots: 3 x 18 mm

  • T-Slot Center Distance: 10 mm

  • Spindle Nose to Table Distance: 102 - 610 mm

  • Spindle Torque: 72 Nm

  • Rapid Traverse (X/Y/Z): 28,000 mm/min

  • Tool Magazine Capacity: 24 positions

  • Maximum Tool Diameter (Adjacent Occupied): 80 mm

  • Maximum Tool Diameter (Adjacent Empty): 120 mm

  • Maximum Tool Length: 250 mm

  • Machine Working Hours: 15,420 h 10 min

  • Spindle Hours: 2,727 h 59 min

  • Monitor: 19" Touch Screen

  • Hardware: 128 GB SSD, 4 GB RAM, Dual-Core 2.7 GHz Processor

  • Connectivity: 2x USB 2.0 (console), 2x USB (electrical cabinet), 1x Ethernet LAN

Additional equipment

  • Remote electronic handwheel

  • Auger-type chip conveyor

  • Wash gun (water/air)

  • Status tower lamp

  • Retention knobs

  • Leveling pads


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
