➤ Used Hurco VMX 42 SRTi For sale | gindumac.com

Show in original language

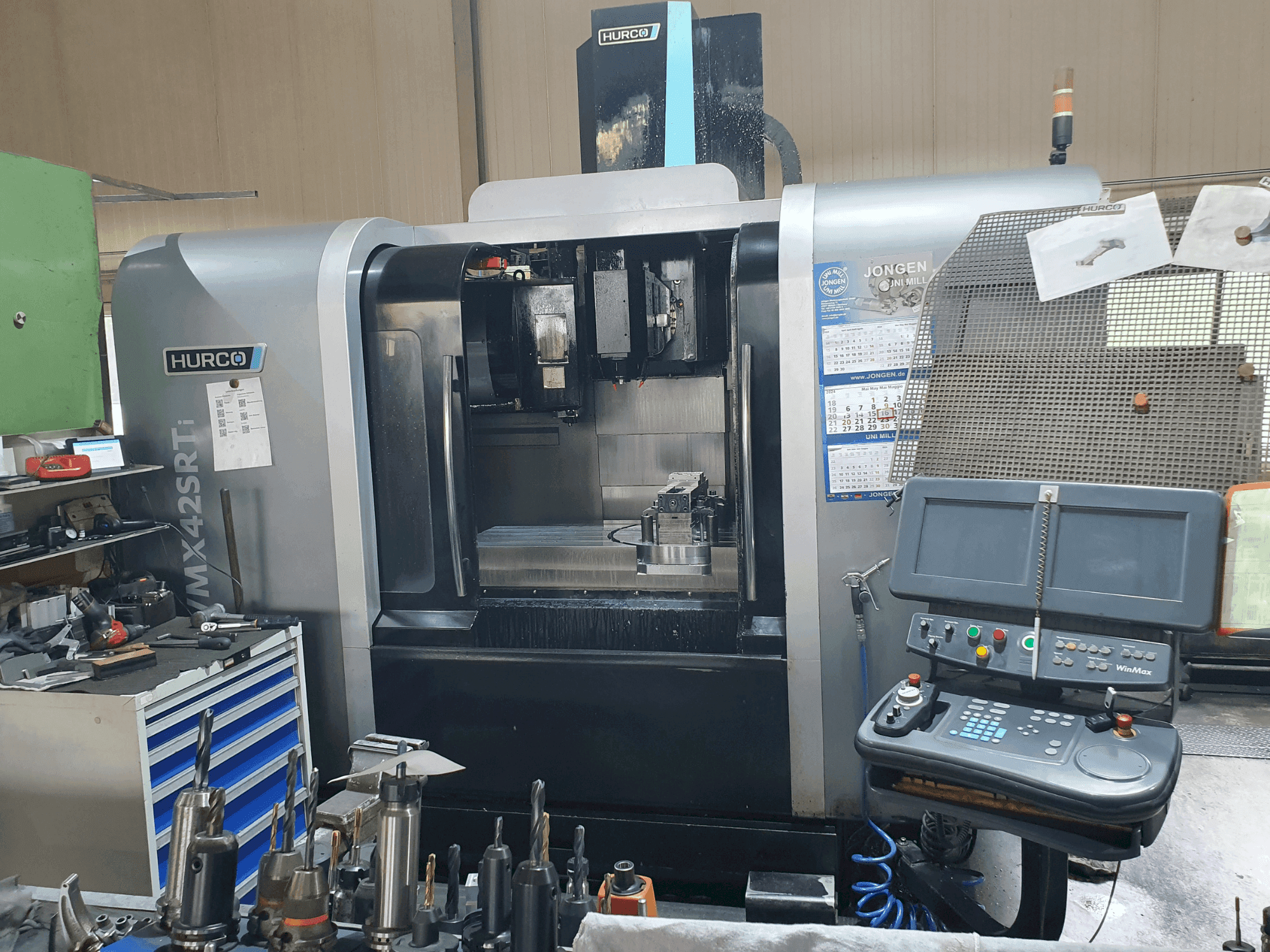

This 5-axis Hurco VMX 42 SRTi was manufactured in 2013 and features a robust motorized spindle with a power of 36.5 kW and a maximum torque of 2900 rpm. It boasts a large working range with X, Y, Z dimensions of 1060 mm, 610 mm, and 610 mm respectively, and a rotary table diameter of 600 mm. The machine can handle a table load of 1300 kg and a rotary table load of 500 kg. For more information about this Machining Centre, please reach out to us.

Overview

brand: Hurco
year: 2013
MODEL: VMX 42 SRTi
application type: Milling
Location: Germany
machine type: Machining centers (vertical)
availability: Sold

Technical Information - Hurco VMX 42 SRTi

Main drive

Spindle speed range: 2900 rpm 1/MIN
Spindle motor power: 36.5 kW
Number of axis: 5

Movement

X-AXIS Movement: 1060 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 610 mm
B-AXIS Movement: -90/+90º MM
C-AXIS Movement: 360º MM

Workpiece

Workpiece weight: Table Load, Uniform: 1300 kg; Rotary Table Load, Uniform: 500 kg

Table

Outer length: 1270 mm
Outer width: 600 mm
TSlots size: 18 mm H8
Number of tslots: 5
Distance between: 100 mm

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - New spindle details: vmx42sr cts 16k motor spindle - overhauled, rotary head: lcm-md-125 vmx-sr - general overhaul
- - Position accuracy: x, y, z: 0. 01 mm, b: ±7 sec. , c: ±5 sec.
- - Repeat accuracy: x, y, z: 0. 005 mm, b: 7 sec. , c: 5 sec.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
