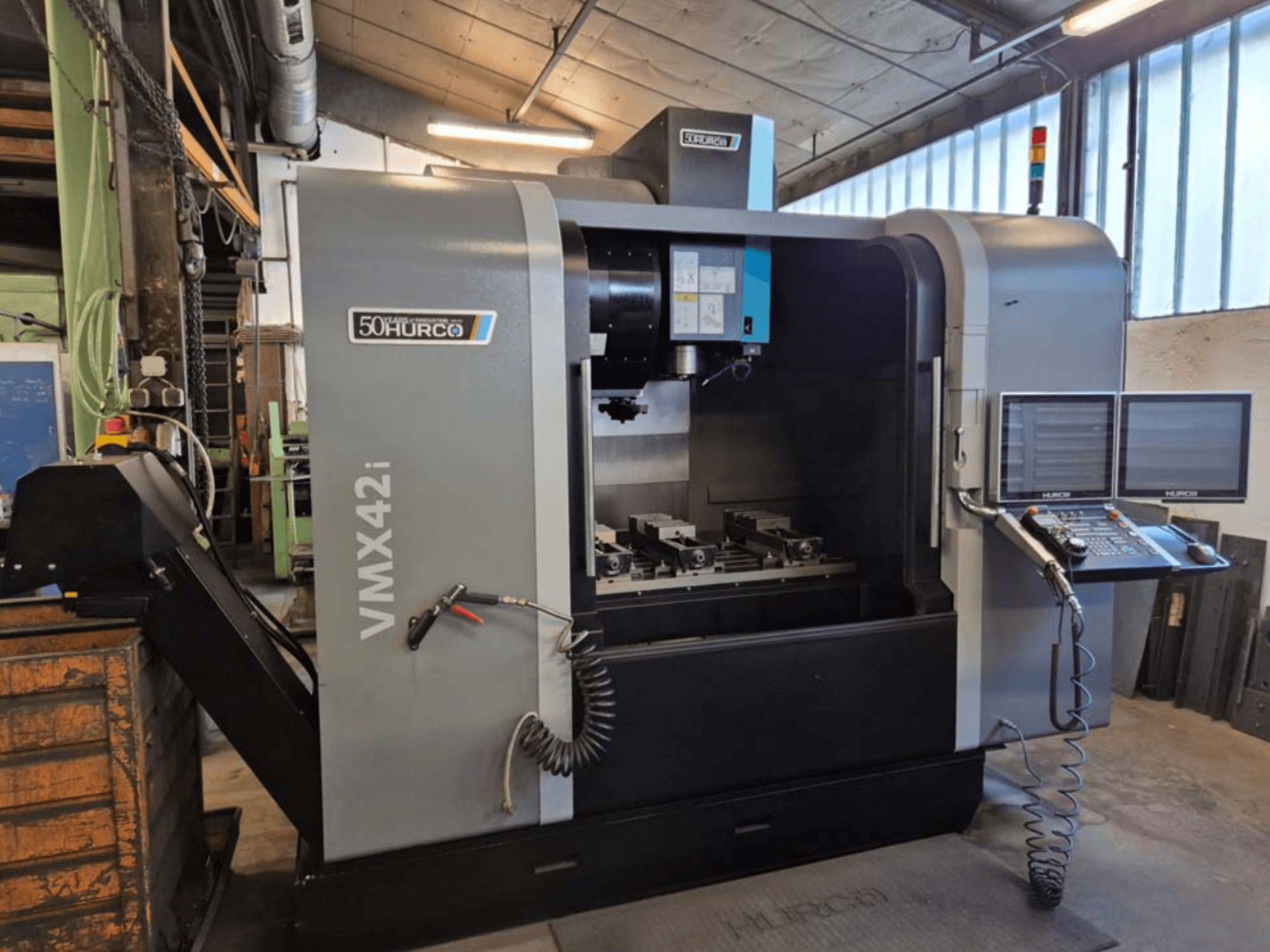

This 3-axis Hurco VMX 42i was manufactured in 2018. It features an impressive X-axis travel of 1067 mm, Y-axis travel of 610 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1270 x 610 mm and a maximum table load of 1750 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 42i vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Hurco
- year: 2018
- MODEL: VMX 42i
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
Technical Information - Hurco VMX 42i
Dimensions
- Machine Weight: 6450 kg
- Table Length: 1270 mm
- Table Load: 1750 kg
- Table Width: 610 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1067 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Control system: WinMax 5 (Windows platform), control with electronic handwheel
Display: 2 x 19" LCD screens
Interfaces and storage: Ethernet, USB, SSD storage, 2 GB RAM
Tool magazine capacity: 30
Max tool diameter: 80 mm
Max tool length: 300 mm
Software/NC functions: Adaptive trochoidal milling, Simulation graphics, Tool and material library, Rigid tapping, Synchronous threading, Extended NC mode (ISNC), Dynamic lookahead up to 10000 blocks, Optimized surface quality motion control, Reduced cycle times, Adjustable surface quality, Tool change optimization
Integrated hydraulic tool clamping system
Machine manual integrated in control
Electrical: AC 400 V, 3-phase; 50 Hz; Full load 28 kVA; Full load current 42 A; Largest motor 13 kVA / 18 A; Interrupt capacity 10000 A; Short circuit current 20 kA
Environmental: Max ambient temperature 35 °C
Additional equipment
Chip conveyor
Coolant system, incl. coolant emulsion system
High-pressure coolant system 20 bar
Coolant through spindle 20 bar
Air through coolant nozzles
Air through spindle
Coolant spray gun
Washdown system for chip removal
LED work light
Status signal light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
