HURTH WF 300 (1993

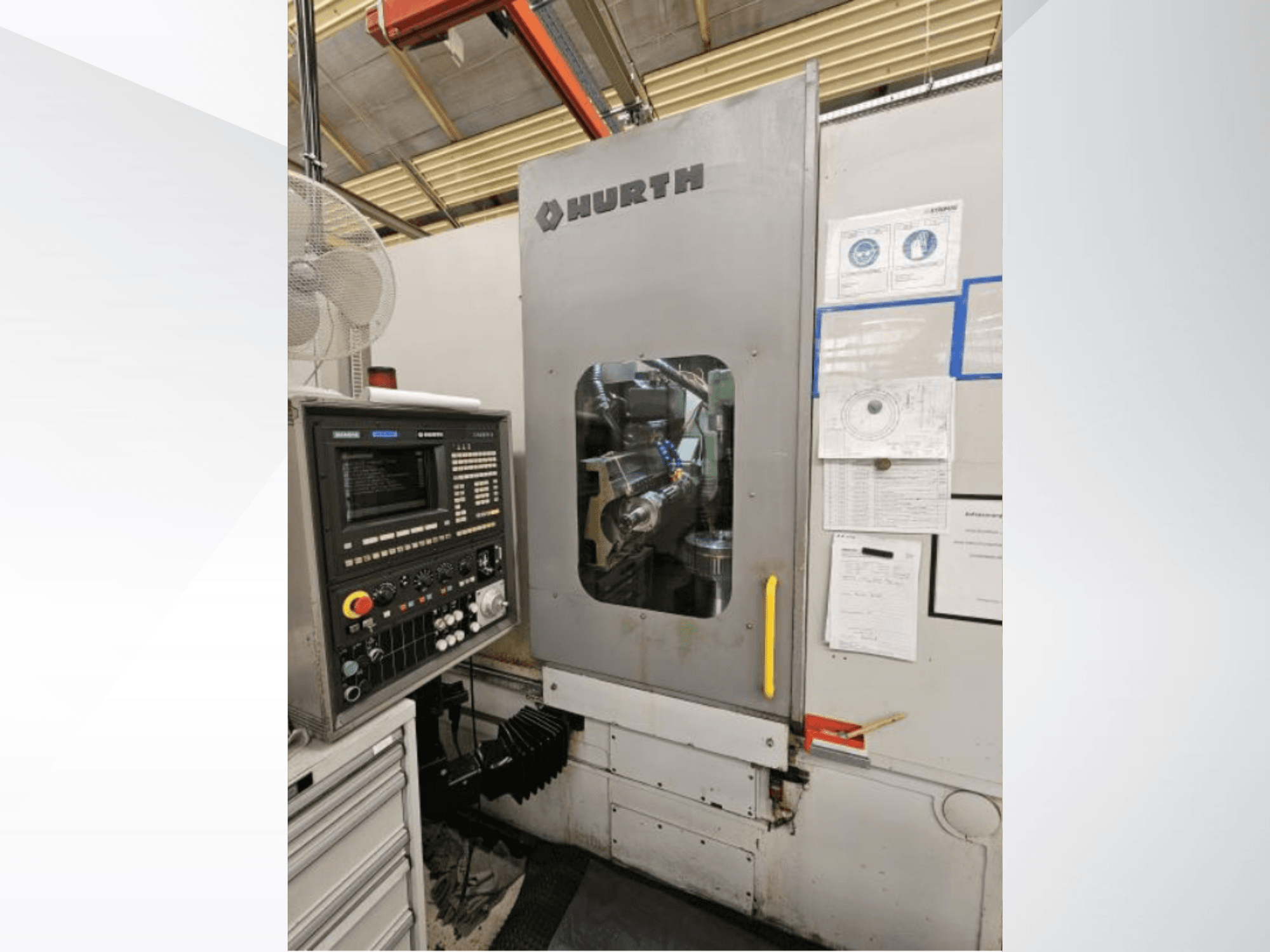

Photo Gallery

33,000 €

gindumac price

(Ex works)

Get an official quote

HURTH - WF 300 (1993DE-TUR-HUR-1993-00001

Name: HURTH WF 300 (1993
Brand: HURTH
SKU: DE-TUR-HUR-1993-00001
Price: 33000 EUR
Availability: InStock

33,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HURTH WF 300 (1993 For Sale | gindumac.com

Show in original language

This 3-axis HURTH WF 300 was manufactured in 1993. It features a maximum machining diameter of 360 mm and a machining length of 360 mm. The machine is equipped with a maximum cutter diameter of 175 mm and a cutter speed range of 50-400 rpm. If you are looking to get high-quality gear hobbing capabilities, consider the HURTH WF 300 machine we have for sale. Contact us for further details.

Overview

brand: HURTH
year: 1993
MODEL: WF 300 (1993
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - HURTH WF 300 (1993

Control Unit

Control Brand: SIEMENS
Control Model: 840C

Dimensions

Machine Height: 2600 mm
Machine Length: 4300 mm
Machine Weight: 10000 kg
Machine Width: 3100 mm

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Y-axis Travel: 400 mm
Z-axis Travel: 360 mm

Technical Specification

Counter Spindle: No
Driven Tools: No

Additional Information

- Travel X-Axis: 300 mm

- Travel Z-Axis: 360 mm

- Travel Y-Axis: 400 mm

- A-Axis Range: -170° to +170°

- X-Axis Speed: 0.1–5,000 mm/s

- Y-Axis Speed: 0.1–5,000 mm/s

- Workpiece Diameter at 1:10 Ratio: 300 mm

- Workpiece Diameter at 1:1 Ratio: 212 mm

- Maximum Number of Teeth: 200

- Minimum Number of Teeth: 6

- Control System: Siemens Sinumerik 840 C (Defective / Faulty)

- Total Power Requirement: 38 kW

- Total Connected Load: 35 kVA

- Nominal Voltage: 400 V

- Current Type: 3N~

- Frequency: 50 Hz

- Control Voltage: 24 V

- Nominal Current of the Machine: 50 A

- Supply Fuse: 63 A

- Module: 8 mm

- Max. Machining Diameter: 360 mm

- Machining Length: 360 mm

- Subcategory: Vertical

- Machine Type: Gear Hobbing Machine

- Max. Cutter Diameter: 175 mm

- Max. Cutter Length: 300 mm

- Cutter Speed: 50-400 rpm

- Tangential Travel: 240 mm

- Max. Swivel Angle: +/- 40°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
