HYMMEN - JUPITER JPT C 680/548 mit OFS 850DE-COM-HYM-2020-00001

• General system data:

  • Nominal width: 680 mm

  • Maximum printing width: 548 mm (expandable to 680 mm)

  • Maximum panel width in OFS: 510 mm

  • Working height: 900 mm (+50 mm)

  • Processing: printing and top coating from above, counter-coating from below

  • Operating mode: dual-lane up to max. 255 mm part width; otherwise single-lane

  • System speed: 8–65 m/min

  • Printing speed: up to 50 m/min

• Jupiter digital printing unit (JPT):

  • Number of colors: 4

  • Printheads per color: 8 (max. 10 possible)

  • Free slots for additional colors: 6

  • Printhead type: XAAR 2001

• DLE structure printing unit:

  • Print rows: 1

  • Printheads per row: 8 (max. 10 possible)

  • Free slots for additional rows: 1

  • Total printheads: 8

  • Printhead type: XAAR 1003

• Raw panel specifications:

  • Length: 600–2800 mm

  • Width: 900–1260 mm

  • Thickness: 2–12 mm (no restrictions); up to 28 mm with speed limitations

• Cutting format saw:

  • Longitudinal cuts: 5

  • Longitudinal trimming units: 2

  • Minimum part width: 160 mm

• Finished panel specifications:

  • Length: 600–2800 mm

  • Width: 160–510 mm

  • Thickness: 2–12 mm (no restrictions); up to 28 mm with speed limitations

• Feeding system (infeed):

  • Type: vacuum portal

  • Feeding stations: 2

  • Discharge positions: 1

  • Max feeding capacity: 8 cycles/min; with double stacking: 16 panels/min

  • Identical stacks per station: up to panel length 1550 mm = 2; ≥1550 mm = 1

  • Max stack height: 1050 mm

  • Max stack weight: 5000 kg (combined)

  • Design: without pits

  • Transport mode: protective plate or pallet

  • Protective plate (infeed): length 800–2800 mm; width 1000–1260 mm; thickness 20–30 mm (up to 150 mm for pallets); max 80 kg per plate/pallet

• Stacking system (outfeed):

  • Type: drop shaft

  • Stacking positions: 1

  • Max stacking capacity: 30 cycles/min

  • Identical stacks per position: up to panel length 1550 mm = 2; ≥1550 mm = 1

  • Max stack height: 1050 mm (alternative: 1000 mm)

  • Max stack weight: 5000 kg (combined) (alternative: 3500 kg)

  • Design: with pits

  • Transport mode: protective plate or pallet

  • Protective plate feeding method: loading by forklift, separation by robot

  • Protective plate (stacking): length 800–2800 mm; width 1000–1200 mm; thickness 20–30 mm; max 80 kg per plate; material OSB or HDF

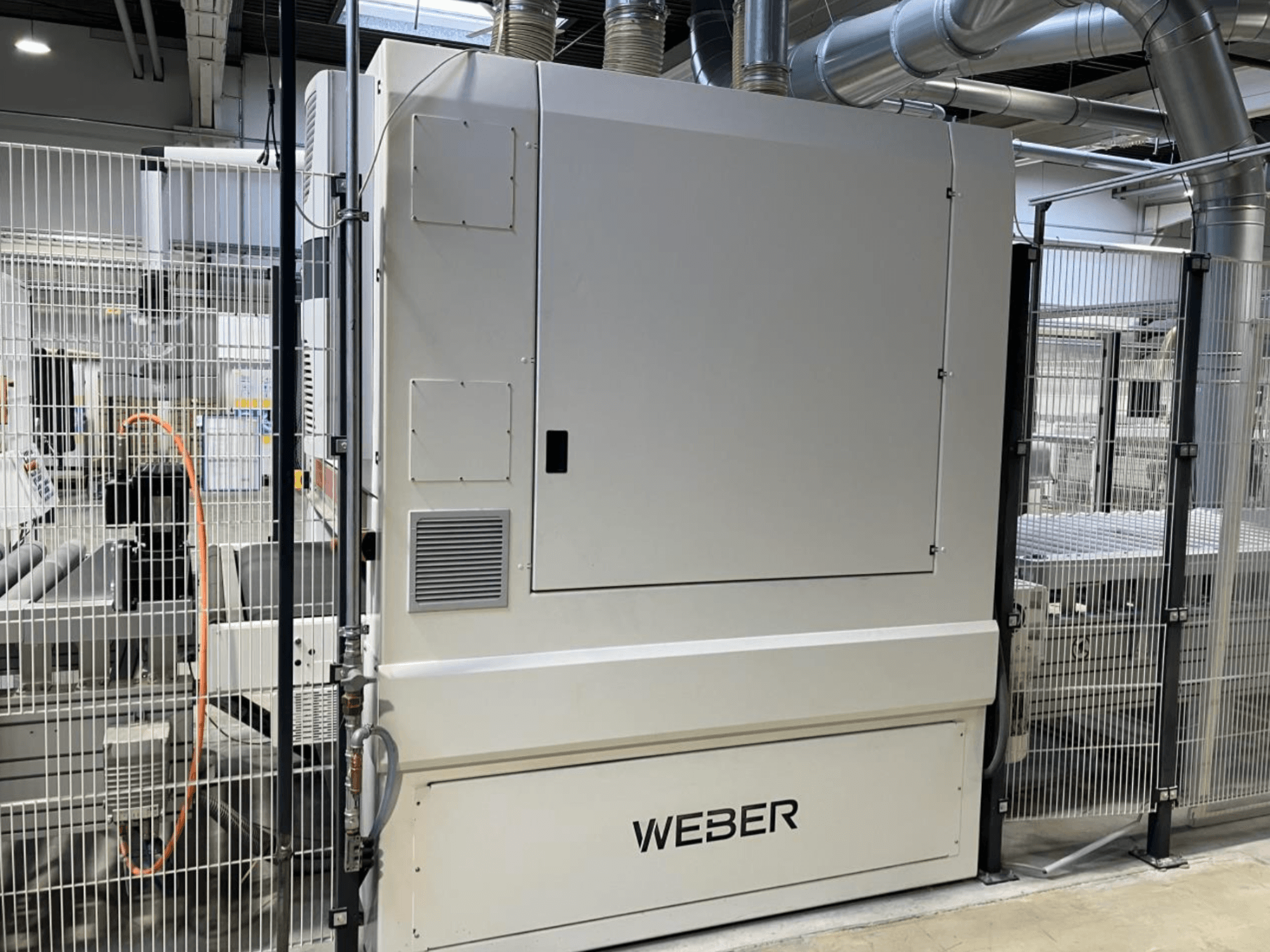

• Process aggregates:

  • Number of aggregates: 35

  • Process steps: feeding, cutting, cleaning, infrared heating, UV curing, coating, digital printing, structuring, excimer matting, stacking

• Application:

  • Industrial single-pass digital printing line for high-speed surface finishing of large panels (flooring and furniture), producing realistic wood, stone, or custom decors directly on substrates

Additional equipment

• Robot for protective plate separation at outfeed (as part of protective plate handling)
