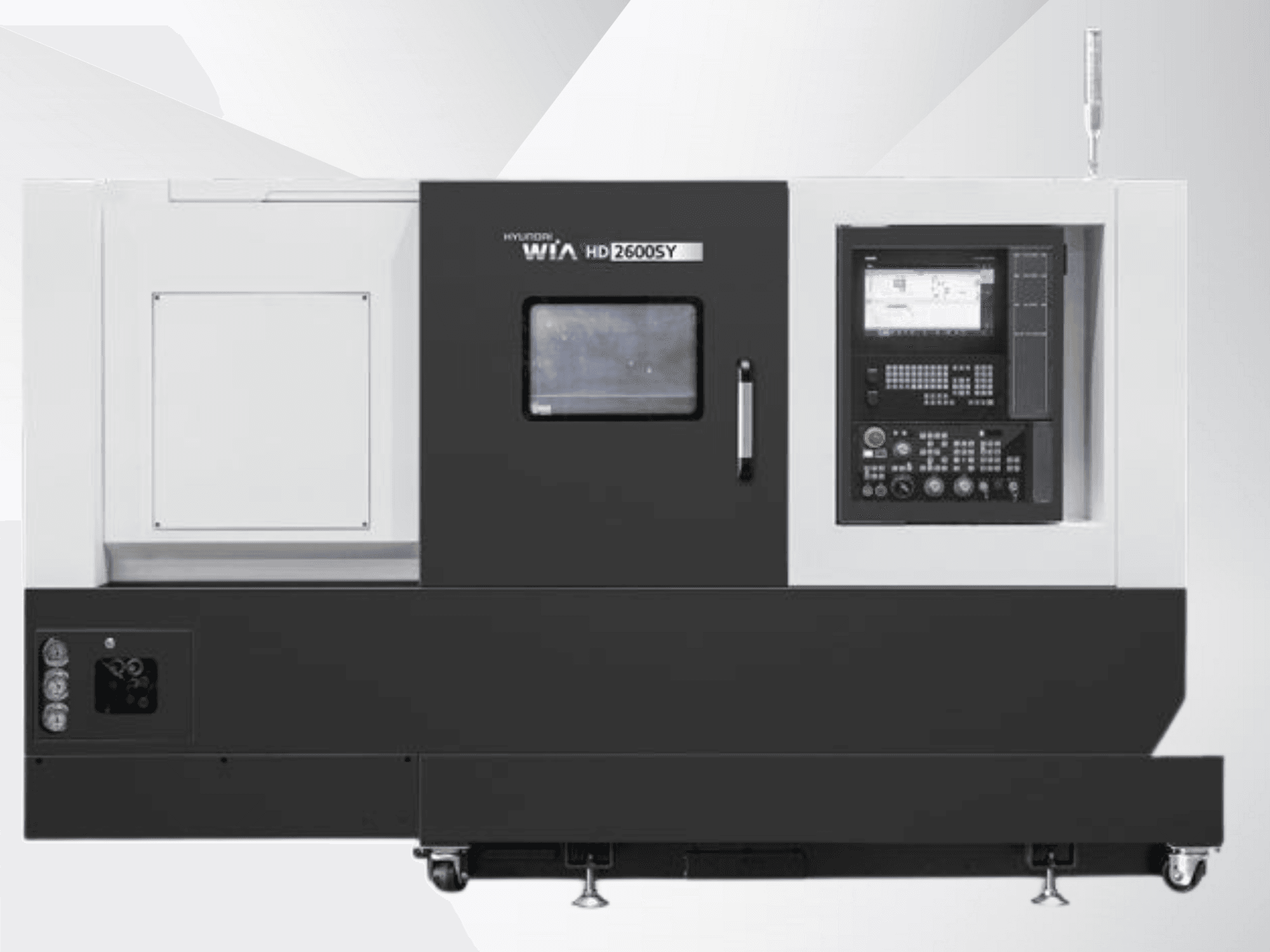

This 3-axis Hyundai Wia HD2600Y horizontal turning machine was manufactured in 2025. It features a swing over the bed of Ø820 mm, a maximum turning diameter of Ø300 mm, and a turning length of 610 mm. The spindle supports up to 3,500 rpm with a motor power of 18.5 kW. It includes a 12-tool turret and a milling tool speed of 6,000 rpm. Consider the opportunity to buy this Hyundai Wia HD2600Y horizontal turning machine. Contact us for more information.
Overview
- brand: Hyundai
- year: 2025
- MODEL: Wia HD2600Y
- production hours: 0
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Hyundai Wia HD2600Y
Dimensions
- Machine Height: 1950 mm
- Machine Length: 3380 mm
- Machine Weight: 4800 kg
Movement
- Number of Axes: 3
- X-axis Travel: 680 mm
- Y-axis Travel: 95 mm
- Z-axis Travel: 680 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 3500 RPM
Additional Information
Condition
Original packaging
0 operating hours
Capacity
Swing over bed: Ø820 mm
Swing over carriage: Ø650 mm
Max. turning diameter: Ø300 mm
Max. turning length: 610 mm
Bar capacity (sub): Ø81 mm
Chuck size (main): 10"
Spindle
Spindle bore (main): Ø91 mm
Motor (max/cont.) (main): 18.5/15 kW (25/20 HP)
Motor (max/cont.) (sub): 5.5/3.7 kW (7.4/5 HP)
Torque (max/cont.) (main): 400.7/243.7 Nm (295.7/179.9 lbf·ft)
Torque (max/cont.) (sub): 46.6/25.3 Nm (34.4/17.7 lbf·ft)
Spindle type: Belt
Spindle nose (main): A2-8
Spindle nose (sub): Ø110 mm
C-axis indexing: 0.001°
Feed
Travel (Z/2B): 680 / 680 mm
Rapid traverse (X/Y): 30 m/min
Rapid traverse (Z/2B): 24 / 24 m/min
Slide type: Box guide
Turret
No. of tools: 12 (24)
Tool size (OD): Ø25 mm
Tool size (ID): Ø40 mm
Indexing time: 0.2 sec
Y-axis type: Wedge type
Live tool
Milling tool speed: 6,000 rpm
Motor (max/cont.): 5.5/3.7 kW
Torque (max/cont.): 52.6/25.6 Nm
Collet size: Ø16 mm (ER25)
Type: BMT55
Tailstock
Taper: MT#4
Quill diameter: Ø80 mm
Quill travel: 120 mm
Travel: 680 mm
Tank capacity
Coolant tank: 200 l
Lubricating tank: 2 l
Power supply
Electric power supply: 27 kVA
Thickness of power cable: Over 25 mm²
Voltage: 220/60 (200/50)
CNC
Controller: HYUNDAI WIA FANUC i-Series – Smart Plus / SIEMENS 828D
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
