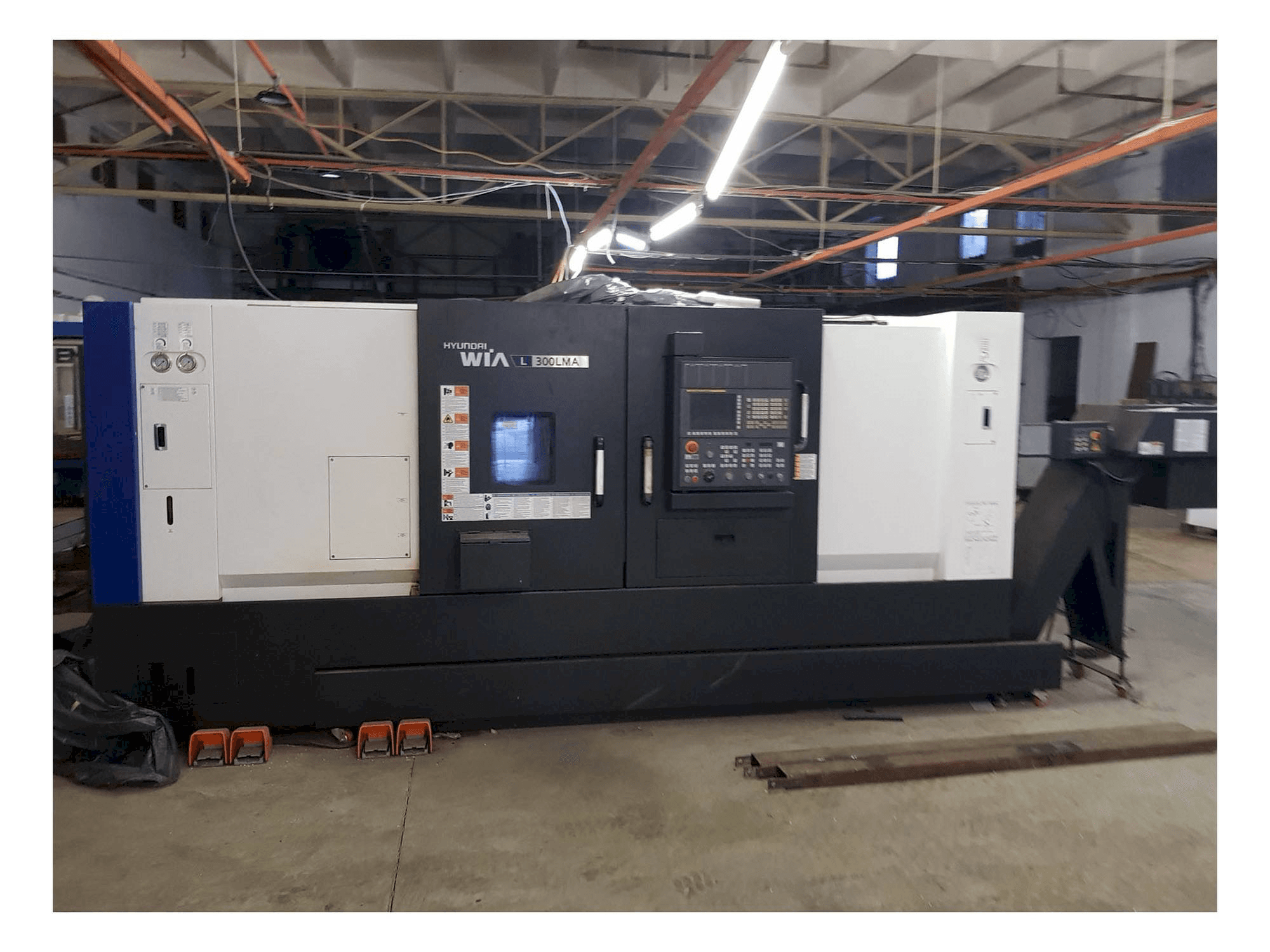

Front view of Hyundai Wia L300LMA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia L300LMA

Photo Gallery

Hyundai Wia - L300LMAHU-TUR-HYU-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L300LMA Horizontal Lathe

Show in original language

This Hyundai Wia L300LMA Horizontal Lathe was made in 2017 in Korea and has only 421 production hours. It is equipped with a Fanuc Series 32i-B control unit. The machine has a spindle speed of 3500 rpm.

Overview

brand: Hyundai Wia
year: 2017
MODEL: L300LMA
production hours: 421
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Hyundai Wia L300LMA

Control Unit

Control Brand: FANUC
Control Model: Series 32i-B

Dimensions

Machine Depth: 4171 mm
Machine Height: 1997 mm
Machine Weight: 7700 kg

Technical Specification

Number of Tools: 12
Spindle Power: 22 kW
Spindle Speed: 3500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Lubricant tank volume: 1,8 l
Coolant tank volume: 270 l

Technical Machine Benefits

Diameter over machine bed: 750 mm
Diameter over cross slide: 480 mm
Max. Machinable diameter: 410 mm
Max. Machinable length: 1280 mm
Chuck size main spindle: 10
Torque (max/running) {nm} 493,2/414,7
Max. Tool size (square tool clamp/circular tool clamp): 25/50 mm
Speed (x/z/b): 20/24 m/min
Range of motion (x/z/b) : 290/1350 mm
Range of movement of clamping of segment: 1350 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
