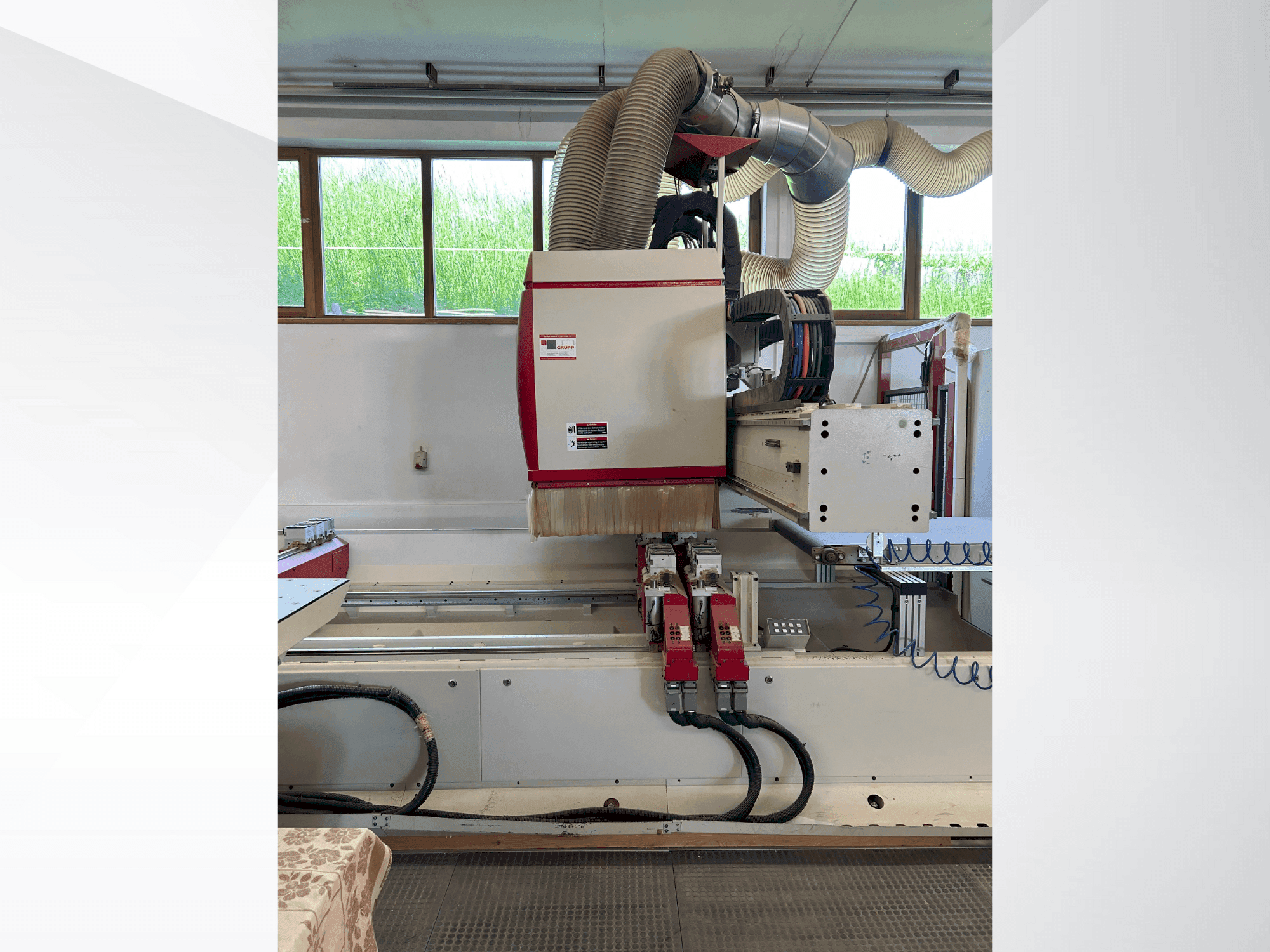

IMA - BIMA CUT 120/240DE-CNC-IMA-2003-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Clamping height from upper edge of suction plate z1: 100 mm
  • - Workpiece thickness z2: 14 - 38 mm
  • - Work table height: approx. 1000 mm
  • - Alternating field range without pendulum machining x: 2 x 2000 mm
  • - Free space in the middle x without pendulum processing: 200 mm
  • - With pendulum processing x: 2 x 1500 mm
  • - Free space in the middle x with pendulum processing: 1200 mm
  • - Tool infeed: automatic
  • - Pull-in force: 11000 n
  • - Direction of rotation: programmable, clockwise/anticlockwise
• Qualitative Machine Benefits:
  • - Drive power: 7. 5 kw in s-1 mode
  • - Spindle lubrication: one-time factory grease lubrication
  • - Spindle cooling: water cooling
  • - An automatic tool/adapter change magazine features a disk changer design with 18 place-coded magazine slots and moves with the support in the x-direction.
  • - The adapter units include a saw unit (max. 15,000 rpm, 200 mm blade), a horizontal drilling and milling head with 4 spindles (max. 15,000 rpm), a drilling unit for lock case/rung holes (max. 12,000 rpm), a vertical drilling unit s21 (6,000–9,000 rpm, max. 35 mm drill diameter), and a horizontal drilling-sawing unit (4,500–6,000 rpm, max. 125 mm grooving saw, swivel range 0 or 90 degrees).
  • - Graphical user interface: imawop for pc computer
  • - Bima cut editor office
  • - Bima cut editor import interface
  • - Control for label printers
  • - Label printer

Extra information

• - Machine still under power
