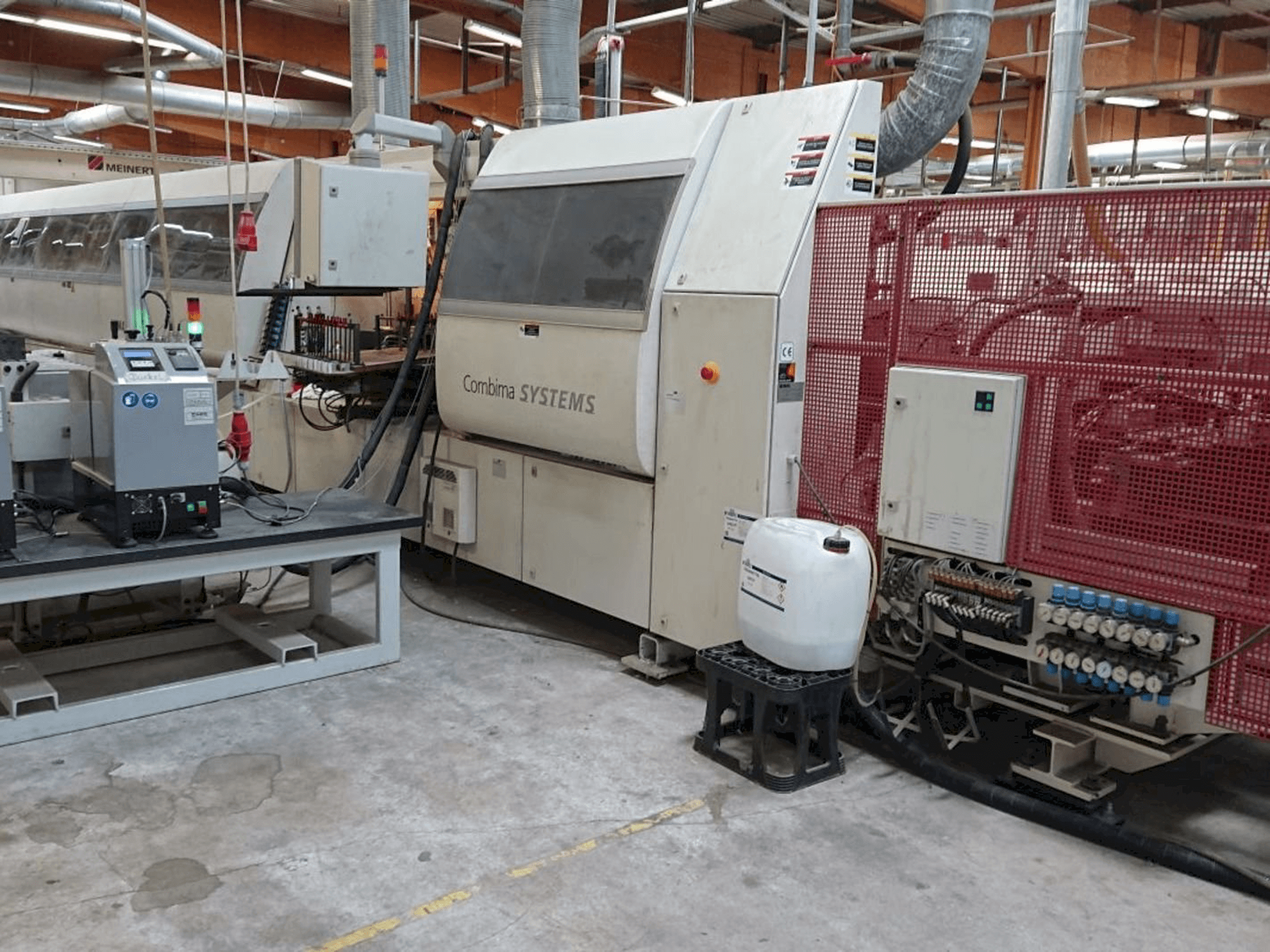

Front view of IMA Combima Systems / I/R751220/R3  machine

IMA - Combima Systems / I/R751220/R3DE-EDG-IMA-2005-00001

119,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This edgebander was manufactured in 2005. It is a single-sided combination machine ideal for formatting, edge gluing, and finishing panel-shaped workpieces made of wood or wood-based materials. Features include an automatic insertion table, NC insertion system, and a 12-compartment edge magazine for roll material up to 3 mm thick. It also boasts a variable feed speed of 5-25 m/min and a PC control ICOS open system. For more information about this edgebander, please reach out to us.

Overview

  • brand: IMA
  • year: 2005
  • MODEL: Combima Systems / I/R751220/R3
  • application type: Edge Banding
  • Location: Germany
  • machine type: Edgebander
  • availability: Immediately
  • control unit brand: ICOS

Technical Information - IMA Combima Systems / I/R751220/R3

Control Unit

  • Brand: ICOS

    Additional Equipment

    • - Automatic insertion table
    • - Agregado KFA Return
    • - NC insertion system
    • - Inclined roller table as inlet section
    • - Additional stop ruler, adjustable via NC axis
    • - Agregado double 08.376
    • - Radiator 300 lg, 2x1.5 kW
    • - Multiple profile/bevel unit
    • - Contour milling unit KFA 30
    • - Multiple profile scraper unit

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Workpiece amplification: min. 238 mm, max. 2350 mm
        • - Workpiece width: min. 142 mm, max. 800 mm
        • - Workpiece thickness: min. 8 mm, max. 40 mm
        • - Edge height: min. 14 mm, max. 45 mm
        • - Edge thickness: 0. 3 - 3. 0 mm
        • - Feed speed: 5-25 m/min
        • - Glue specification for workpiece thickness: max. 50mm
        • - Pre-melting containers for pu glue: 2
        • - Edge magazine: 12-compartment for roll material 0. 3-3 mm thick
        • - Roll holder vertical: max. Roll diameter 850 mm, max. Edge height 45 mm
      • Qualitative Machine Benefits:
        • - Cutting unit: 08. 42, for 2 motors
        • - Milling/profile milling/grooving units: two units, each with 1 motor, 100 hz, 6000 rpm and 600 rpm respectively
        • - Motor shaft for hydro-format tool system
        • - Return system: meinert brand
        • - Flat scraper blade 08. 517
        • - Copy buffing unit 08. 604
        • - Buffing unit 08. 617-2
        • - Double base 75,184 1050 mm high level
        • - Precision in edge processing with multiple units for cutting, milling, and buffing
        • - High-quality glue application system for straight edges

      Extra information

      • - Machine still under power. The machine is designed for single-sided combination processing including formatting, edge gluing, and edge finishing of wood or wood-based panel-shaped workpieces. It is specifically tailored for the production of strand goods in the second run.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
