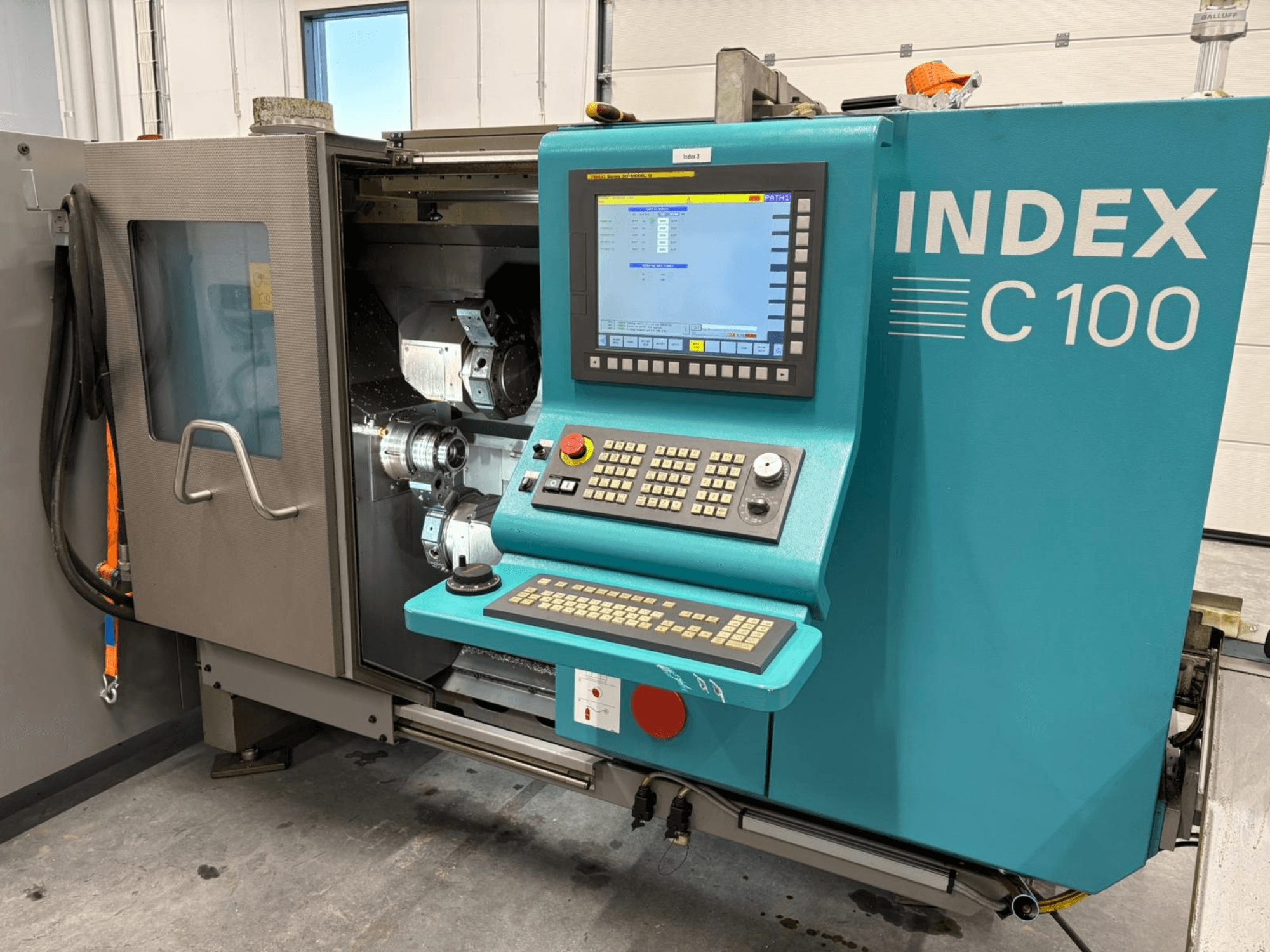

This 10-axis Index C100 swiss type turning machine was manufactured in 2018. It features impressive axis travels of 70 mm in both X and Y directions, and 400 mm in Z. The machine includes three turrets with driven tools capable of 8000 rpm, and a counter spindle diameter of 42 mm. If you are looking to get high-quality turning capabilities, consider the Index C100 machine we have for sale. Contact us for further details.
Overview
- brand: Index
- year: 2018
- MODEL: C100
- application type: Turning
- Location: Finland
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - Index C100
Control Unit
- Control Brand: FANUC
- Control Model: 31i-B
Movement
- Number of Axes: 10
- X-axis Travel: 70 mm
- Y-axis Travel: 70 mm
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 42 mm
- Spindle Speed: 7000 RPM
Additional Information
Production hours: approx. 15,000 h
Spindles: Main and counter spindles with D42; counter spindle Ø42 mm, 7000 rpm
Turrets: 3x VDI25 with Index W-serration; driven tools on all three turrets, up to 30 driven tool positions, 8000 rpm
Coolant system: Emulsion; flushing beside main and counter spindle; through counter spindle; 8 bar pump; 18 bar pressure-increasing pump (no Eco Fluid 80 bar); mechanical coolant filter (no paper filter); coolant tower for cooling main/counter spindles and electrical cabinet
Software/Functions: Milling cycles Transmit / Tracyl
Monitoring: Index Motorforce tool monitoring for Fanuc
Interfaces/Preparation: Ünimag4 interface for bar feeder; preparation for oil mist unit (mechanical flange D200 mm; electrical Harting plug 3x240 V)
Clamping: SK45 in main spindle (without collets); E173 in sub spindle (without collets)
Storage/condition: Machine stored under power in a heated warehouse
Additional equipment
Bürener chip conveyor, 840 mm height, hinge-chain type
Handling unit with 2‑finger gripper for finished part and remnant
Conveyor belt for finished parts with flap for remnants
Bar feeder: LNS, 1500 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
