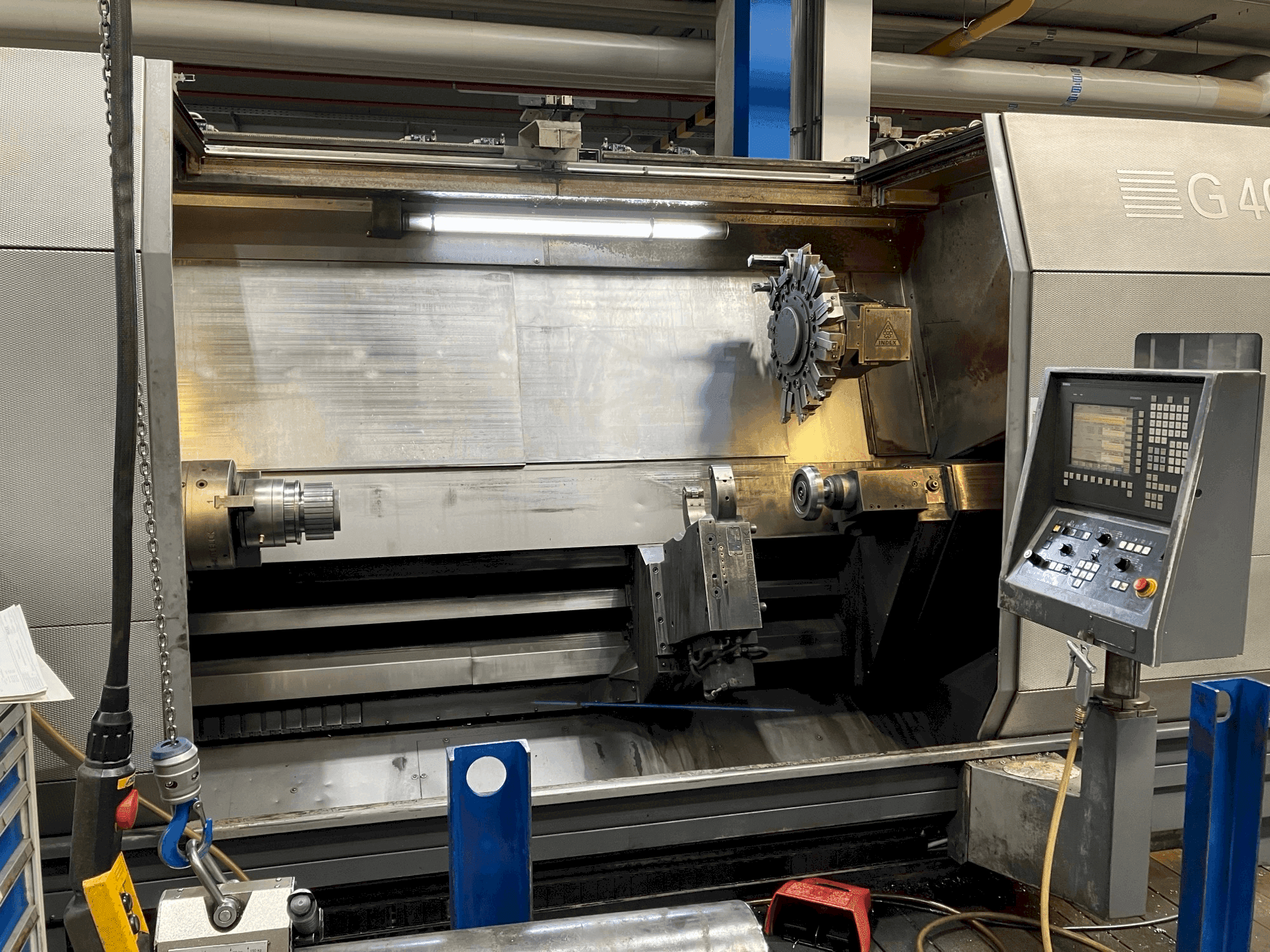

This 3-axis Index G 400 Ratio Line was manufactured in 2008. A CNC universal lathe featuring a C200-4D control, linear roller guides, and a cast machine bed. It boasts a turning length of 2000 mm and a maximum turning diameter of 630 mm. The main spindle delivers up to 57 kW of power and 363 Nm of torque. Consider the opportunity to buy this Index G 400 Ratio Line horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: Index
- year: 2008
- MODEL: G 400 Ratio Line
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: INDEX
Technical Information - Index G 400 Ratio Line
Control Unit
- Control Brand: INDEX
- Control Model: C200-4D
Dimensions
- Machine Depth: 5350 mm
- Machine Height: 2616 mm
- Machine Weight: 20000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 320 mm
- Z-axis Travel: 2000 mm
Technical Specification
- Spindle Power: 43 kW
- Spindle Speed: 3500 RPM
Additional Information
Additional equipment
- Coolant Internal Supply: Yes
- Coolant Filter: Paper belt (150 l/min with emulsion)
- Chip Conveyor: 1250 mm ejection height
- Automatic Sliding Door: Yes
- Foot Switch: Yes
Machine Benefits
Technical Machine Benefits
- Operating history: 2-3 shift operation, regular maintenance
- Max. Turning diameter: 630 mm
- Turning length: 2000 mm
- Hollow clamping cylinder/bar passage: 90 mm (max. 3500 min-¹)
- Tailstock slide: sk40, 500 kg max.
- Tool drive power: 17 kw
- Tool drive torque: 36 nm
- Tool drive speed: 6000 min-¹
- Clamping monitoring: yes
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
