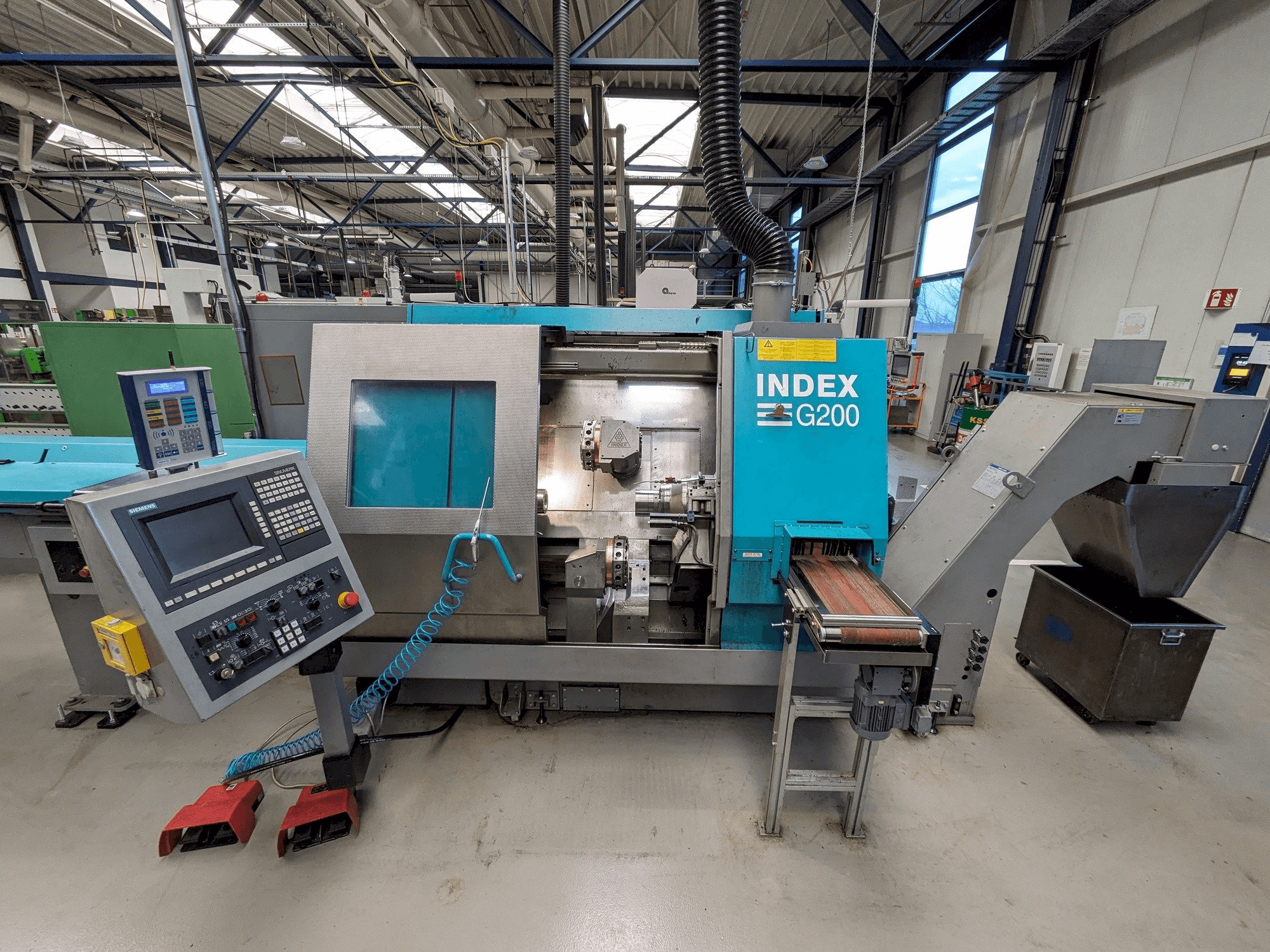

This INDEX G200 YB Ratioline Lathe was manufactured in 1995 and completely retrofitted in the year 2016. It is equipped with a SIEMENS SINUMERIK 840 C control unit.
Overview
- brand: Index
- year: 1995
- MODEL: G200 YB RATIOLINE
- production hours: 44020
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: INDEX
Technical Information - Index G200 YB RATIOLINE
Control Unit
- Control Brand: INDEX
- Control Model: C200-4
Movement
- B-axis Max: 360°
Technical Specification
- Spindle Power: 20 kW
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- High-pressure coolant pump, exhaust air nozzle, installation and commissioning, acceptance with customer part, bar loading magazine, CO2 extinguishing system, transport, cooling lubricant line.
- Switchable high-pressure coolant pump 20 bar
- Exhaust air nozzle D=150mm / Bar loading magazine INDEX-MBL 65/3700 / Kraft & Bauer automatic CO2 object extinguishing system
- New milling spindle for turret 1 with HSK D-50 tool holder / Switch cabinet cooling unit / New chip hinge belt conveyor / Conveyor belt to the right
- Coolant lubricant pump / Portal removal device with actuated gripper / Gripper fingers for workpiece D 4 45 mm and D 40-60 mm
- Unimag interface for bar feed (optional)
Machine Benefits
Qualitative Machine Benefits
- Overhauled in 2017: switchable high-pressure coolant pump 20 bar including suction filter / exhaust air nozzle d=150mm / bar loading magazine (used, reconditioned)/ index-mbl 65/3700 (d 10 - 65 mm, max. 3700 mm) / kraft & bauer automatic co2 object extinguishing system with air shut-off valve and pressure relief valve for the index g200 lathe / new milling spindle for turret 1 (top) with hsk d-50 tool holder, manually operated.
Technical Machine Benefits
- Technical machine benefits: high spindle speed and power, dual spindle capability, advanced control system.
- Qualitative machine benefits: precision engineering, comprehensive safety and operational features.
- X-axis: 155 mm (cross slide 1), 105 mm (cross slide 2) / z-axis: 590 mm (cross slide 1), 400 mm (cross slide 2)
- Max bar diameter: 65 mm
- Max workpiece length: 3700 mm
- Rapid traverse speed: x= 20 m/min, z= 30 m/min, y = 7. 5 m/min (cross slide 1) / rapid traverse speed: x= 22 m/min, z = 45 m/min (cross slide 2)
- Distance measuring system: x-axis glass scale, z-axis rod encoder
- Thread cutting without compensating chuck / transmit/tracyl function for c-axis / coupling main spindle/counter spindle
Extra Information
Cross slides details, tool carriers, machine paintwork specifications.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
