➤ Used INFOTEC 3121 PRO EVO - For Sale | gindumac.com

Show in original language

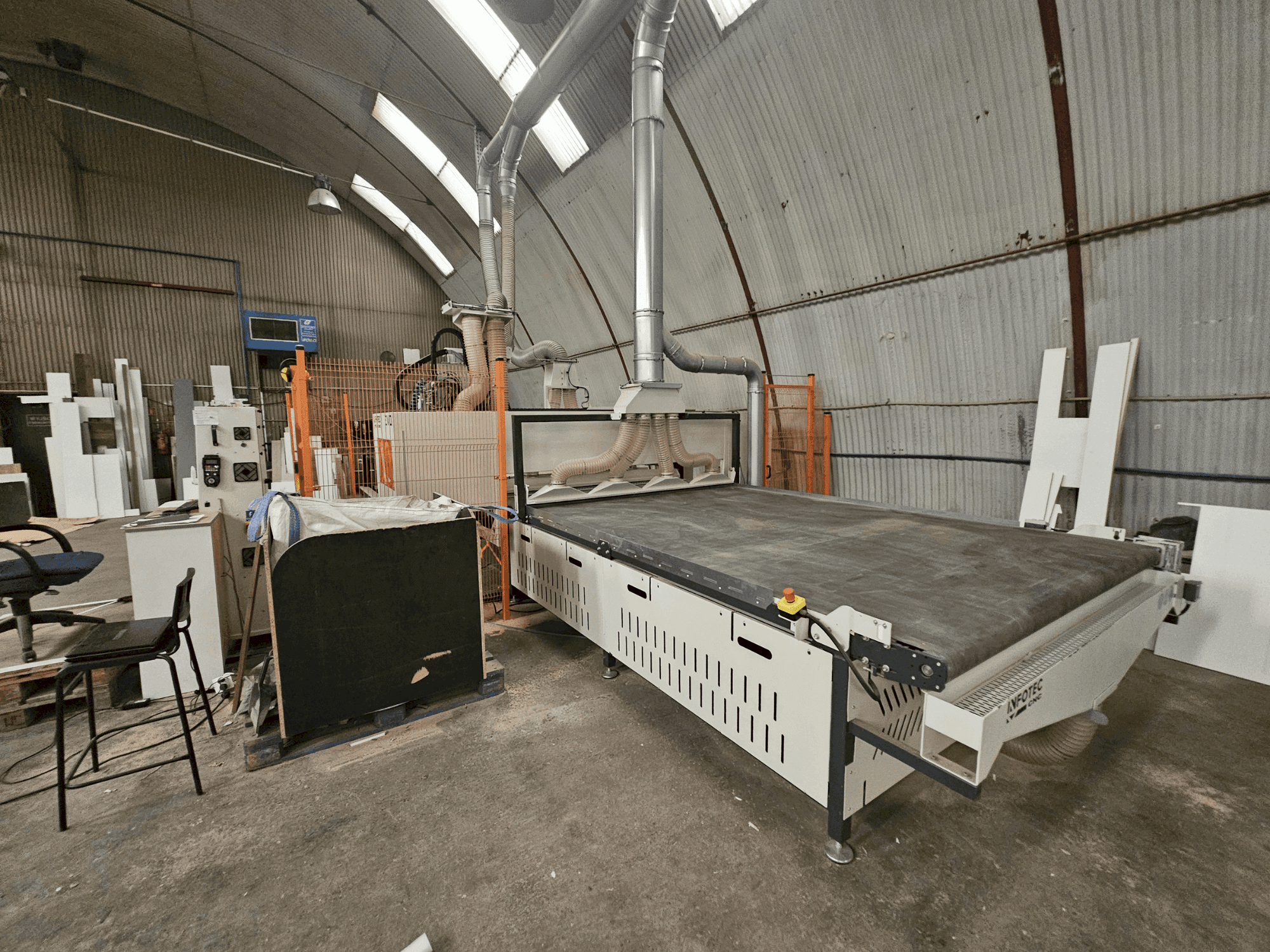

This 3-axis INFOTEC 3121 PRO EVO was manufactured in 2022. It features a working area of 2200 x 3100 mm, Z-axis travel up to 350 mm, and a high-speed main spindle with a power of 8.5 kW and speed range up to 24,000 RPM. Equipped with a 14-position tool magazine and a robust vacuum table with 6 zones. Ideal for advanced CNC wood machining. Contact us for more information about this machine.

Overview

brand: INFOTEC
year: 2022
MODEL: 3121 PRO EVO
application type: CNC Wood Machining
Location: Poland
machine type: CNC Wood Machining Centre
availability: Immediately

Technical Information - INFOTEC 3121 PRO EVO

General Data

Machine weight: 3700 kg

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 8.5 kW
Number of axis: 3

Movement

X-AXIS Rapid traverse: 80 m/min
Y-AXIS Rapid traverse: 80 m/min
Z-AXIS Movement: 250 mm
Z-AXIS Rapid traverse: 12 m/min

Tools

Type of tool holder: HSK 63F

Additional Equipment

- Remote Control Pendant
- Z-axis Tool Length Sensor
- 4 Vacuum Suction Cups // 4 Additional Positioning Pins (long)
- Automatic Dust Shoe Height Adjustment // Automatic Part Pushing System
- Receiving Table for Finished Parts (2800 x 2070 mm)
- Loading Table (2800 x 2100 mm, 2000 kg Capacity, 500 mm Stack)
- CNC Control System TPA – WSCM
- Straight-line Nesting Software (Included)
- Pneumatic and Electrical Preparation for Drill Head Upgrades
- ECO Mode for Energy Saving

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Air supply required: 6–8 bar, 300 l/min
- - Compressed air treatment: dryer + filters + oil separator
- - Vacuum table: 6 zones
- - Vacuum pumps: 2 x becker 250 m³/h (total 500 m³/h)
- - Working area (x / y): 2200 x 3100 mm

Extra information

- Tools Tool Magazine: 14 positions (5 holders included – HSK 63F / ISO30) Drilling Unit: 12 Vertical Spindles 8 Horizontal Spindles 2 Saw Blades Power: 1.7 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
