- InspecVision P85.25 Measuring machine
Show in original language

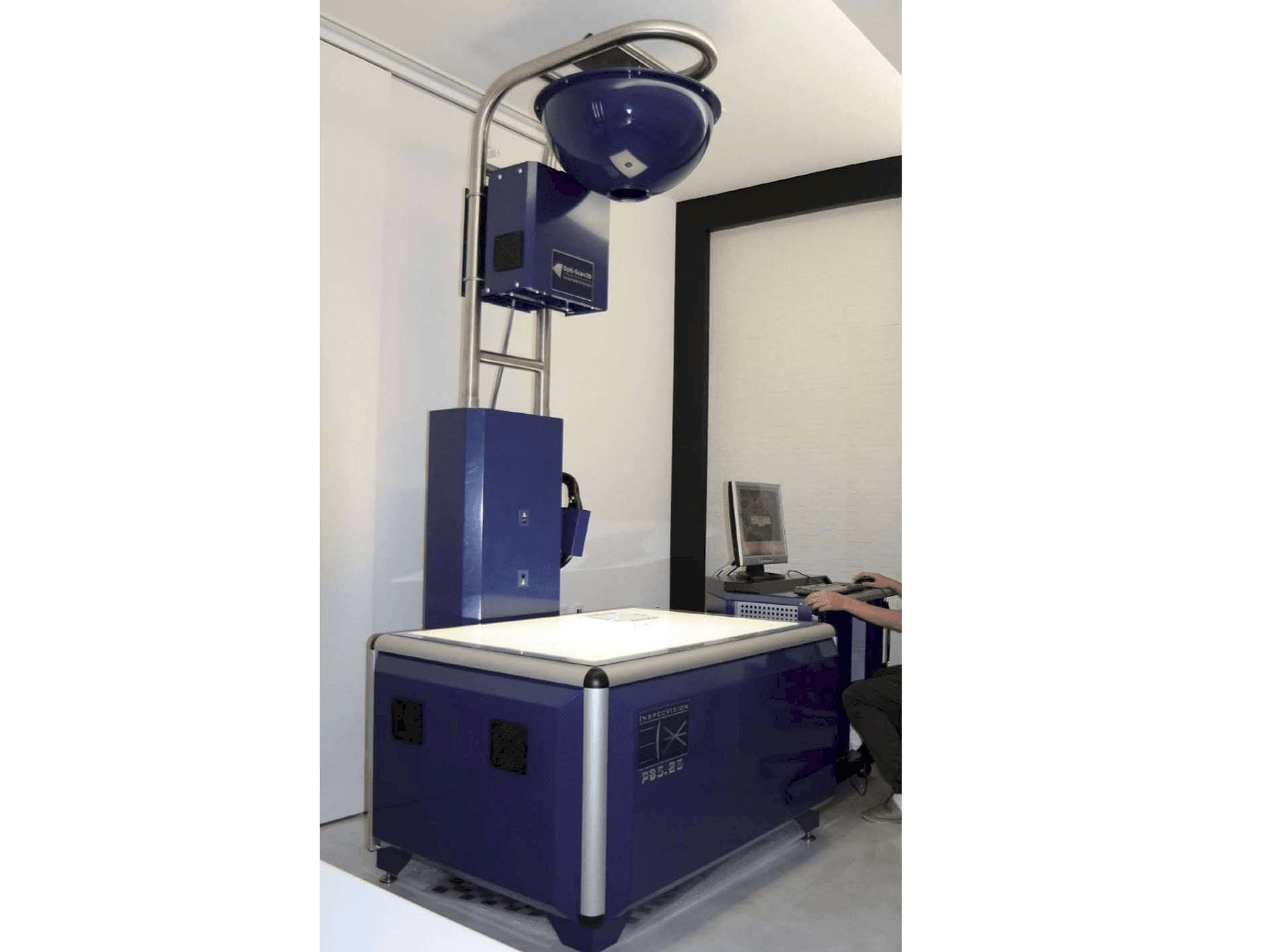

This InspecVision P85.25 Measuring machine was made in Ireland in 2009. It operates with a control unit of the same brand. This machine works with a diameter and length measuring of +/- 0.001/0.002 inches and a measuring speed of 0.25sec. The machine is in very good working condition.
Overview
- brand: InspecVision
- year: 2009
- MODEL: P85.25
- application type: Measuring
- Location: Japan
- machine type: Optical Measurement Machine
Technical Information - InspecVision P85.25
Dimensions
- Table Length: 1100 mm
- Table Load: 450 kg
- Table Width: 1300 mm
Additional Information
Additional equipment
- Camera Industrialised ultra high resolution professional mounted in sealed enclosure
- Computer processor Pentium 4, speed 3GHz
Machine Benefits
Technical Machine Benefits
- Max component length 1100 mm
- Max component width 733 mm
- Max component thickness 150 mm
- Max component weight 150 kg
- Power supply 230 volt, single phase, 50hz or 110 volt, single phase, 60hz on request
- Power consumption 4 amp maximum at 230 volt, 8 amp max at 110 volt
- Control panel control switches for power, camera and lights. Main power indicator
- Measuring speed 0. 25sec
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
