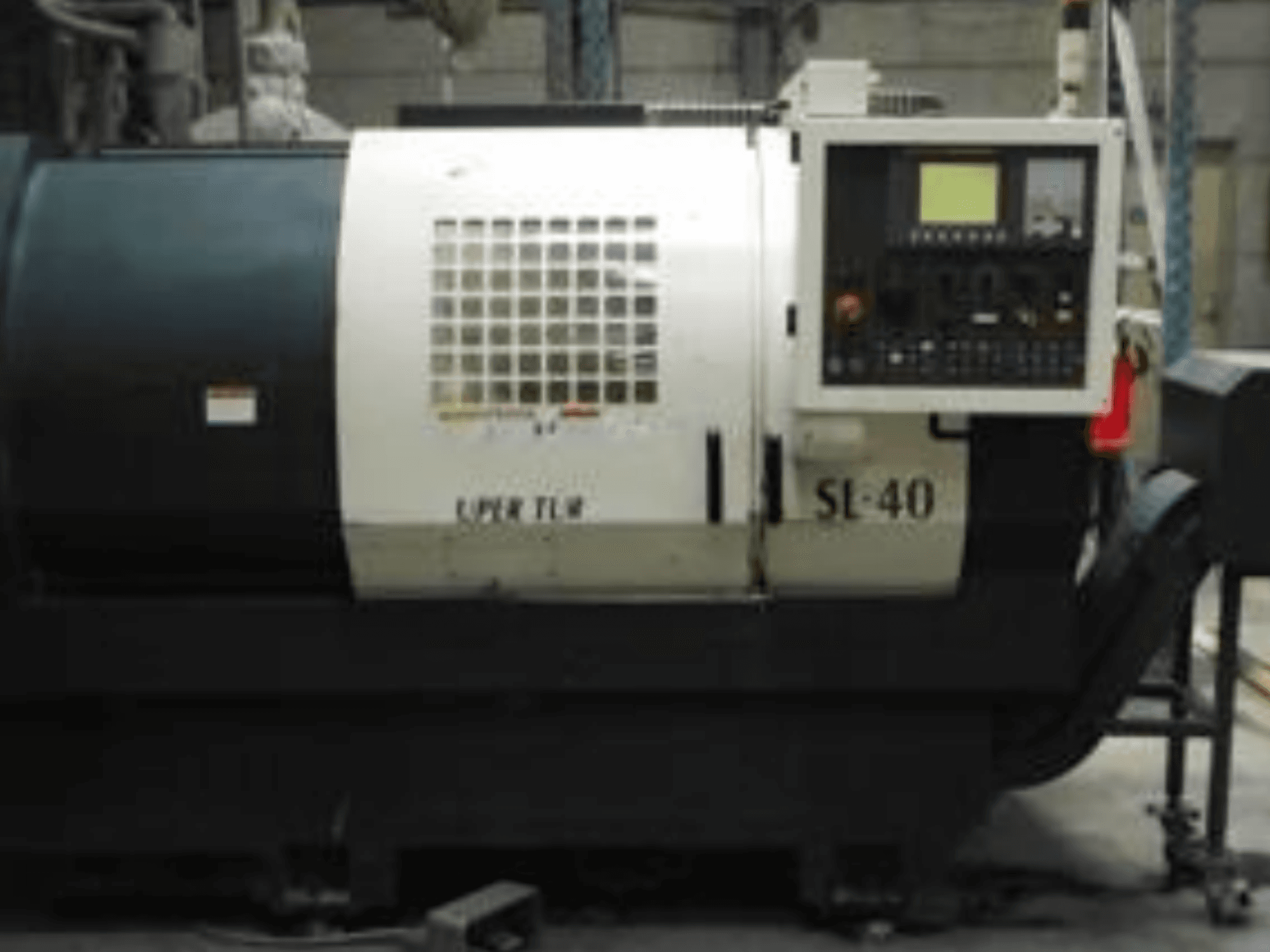

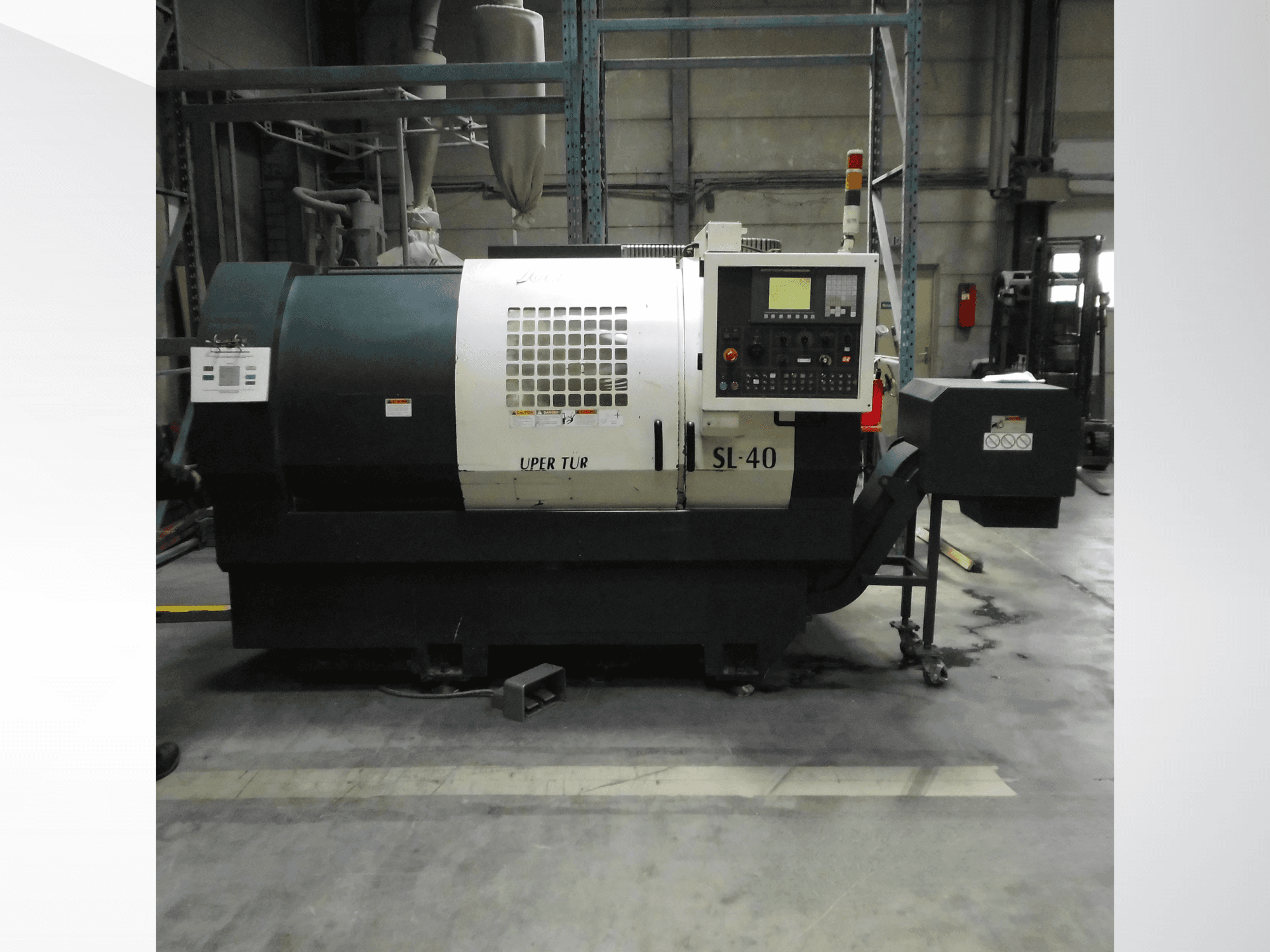

Horizontal turning machine manufactured in 2007. This Johnford SL-40 features a maximum bar diameter of Ø76.5 mm and an impressive X-axis travel of 240 mm, along with a Z-axis travel of 600 mm. It includes a 3-jaw chuck with a diameter of 254 mm and a hydraulic tailstock with a travel of 500 mm. If you are looking to get high-quality turning capabilities, consider the Johnford SL-40 machine we have for sale. Contact us for further details.
Overview
- brand: Johnford
- year: 2007
- MODEL: SL-40
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Johnford SL-40
Control Unit
- Control Brand: FANUC
- Control Model: Oi-TC
Dimensions
- Machine Height: 1862 mm
- Machine Length: 3525 mm
- Machine Weight: 4500 kg
- Machine Width: 2020 mm
Movement
- Number of Axes: 2
- X-axis Travel: 240 mm
- Z-axis Travel: 600 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 15 kW
- Spindle Speed: 4000 RPM
- Tool Stations: 12
Additional Information
- Weight: 4500 kg
- Nominal Voltage: 380 V
- Current Type: Three-phase current
- Operating Current: 63 A
- Frequency: 50 Hz
- Power Capacity: 15 kW
- Spindle Speed: 4000 rpm
- Maximum Bar Diameter: Ø76.5 mm
- Turret Stations: 12 stations
- Tool Shank Size: 25x25 mm
- X-axis Maximum Travel: 240 mm
- Z-axis Maximum Travel: 600 mm
- Tailstock Type: Hydraulic Tailstock MK-4
- Tailstock Travel: 500 mm
- Tailstock Stroke: 60 mm
- Chuck Type: 3-jaw chuck Ø254 mm
- Main Spindle Nose: A2-8
- Additional Equipment: Hinge belt chip conveyor, Central lubrication for bedways, Air conditioning unit for cabinet, Electrical Transformer, Hydraulic power unit for 12-fold turret/tailstock/3-jaw chuck clamping pressure, 2x boring bar holders, Data Interface RS-232C
- Included Manuals: Operator's Manual Fanuc Series Oi-TC (B-64114EN/01), Parameter Manual Fanuc Series Oi-Model_C (B-64120EN/02), Maintenance Manual Fanuc Series Oi-Model C Alarm-Liste (B-64115EN/03), CNC Lathe Instruction Manual S/O Nr: T256118 SL-40 Fanuc_OiT-C
- Machine Dimensions: Length: 3525 mm, Width: 2020 mm, Height: 1862 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
