Jorns - Norma-Line 150-6.4PL-BEN-JOR-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Jorns Norma-Line 150-6.4 For Sale | gindumac.com

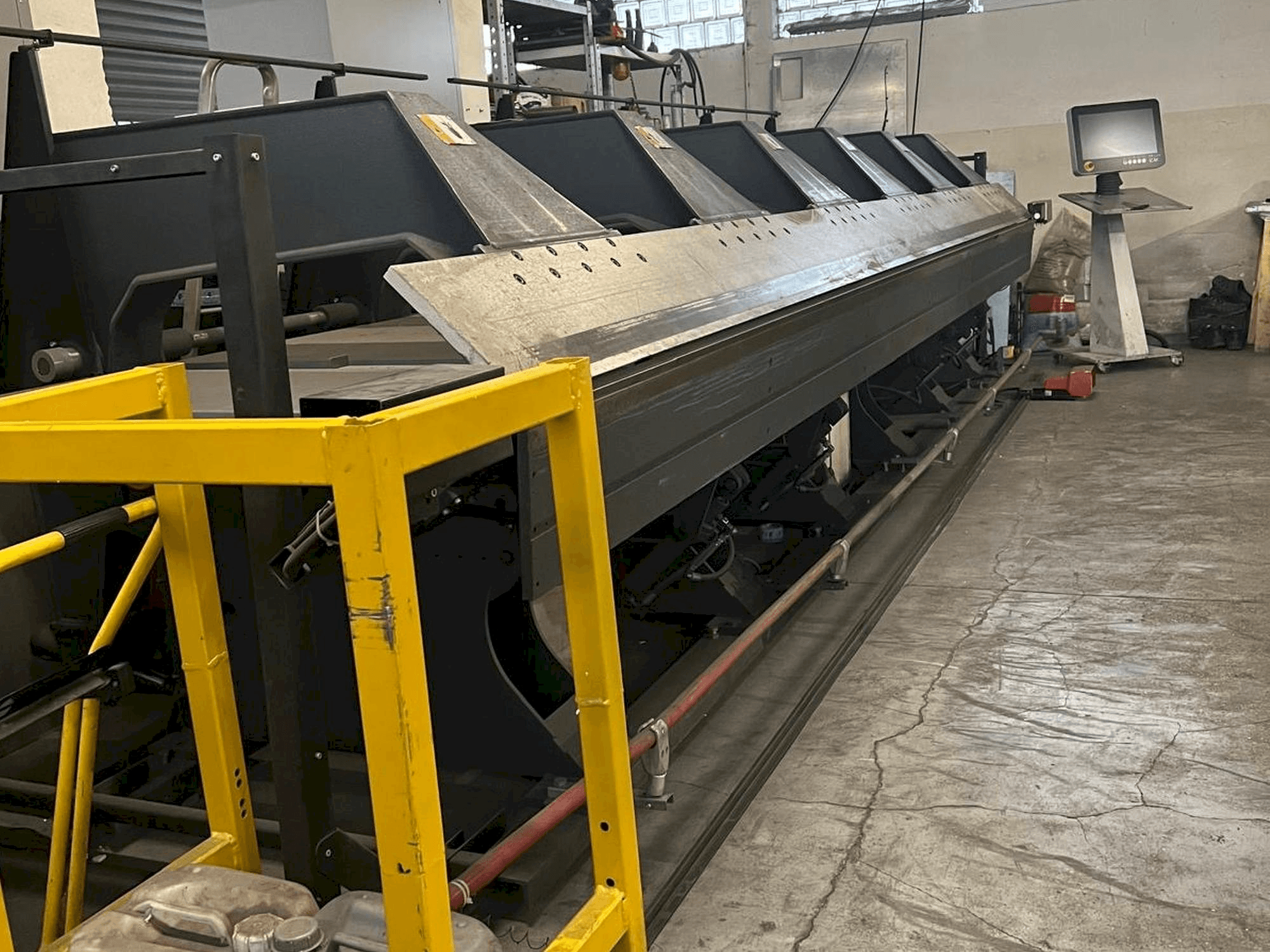

This Jorns Norma-Line 150-6.4 die bending machine was manufactured in 2017. It features a maximum bending length of 6400 mm and can handle mild steel up to 1.5 mm, aluminum up to 2.5 mm, and stainless steel up to 1.0 mm. Equipped with CNC control system CP200 and a Type 11 rear measuring table, it offers precise and efficient operations. Consider the opportunity to buy this Jorns Norma-Line 150-6.4 die bending machine. Contact us for more information about this machine.
Overview
- brand: Jorns
- year: 2017
- MODEL: Norma-Line 150-6.4
- application type: Bending
- Location: Poland
- machine type: Die Bending Machine
- availability: Immediately
Technical Information - Jorns Norma-Line 150-6.4
General Data
- Machine weight: 5300 KG
Main drive
- Bending length: 6400 mm
- Maximum sheet thickness: 20 mm
Max Material thickness
- Steel: 1.5 mm
- Stainless steel: 1 mm
- Aluminum: 2.5 mm
Additional Equipment
- - Safety laser and safety cage on rear and sides
- - Two multifunctional foot switches
- - Wi-Fi USB module
- - Sliding control panel
Additional Information
- Technical Machine Benefits:
- - External programming software: coprabend
- - Hydraulic rh adjustment between blades
- - Oil preheating for temperatures below 15°c
- - Backgauge positioning speed: 250 mm/sec
- - Positioning accuracy: +/- 0. 1 mm
- - Maximum opening between jaws: 200 mmmaximum opening between jaws: 200 mm
- - Measurement table range: 20 to 1250 mmmeasurement table range: 20 to 1250 mm
- - Type 11 rear measuring table with a range of 1250 mm
- - Bending beam preparation for mounting rotary shears
- - Note: for hemming, reduce above thicknesses by 50%
- Qualitative Machine Benefits:
- - Number of machine arms: 6 pcs
- - Bending cylinders: 4 pcs
- - Special bending beam geometry type "f"
- - Manual compensation adjustment for upper beam
- - Machine sill under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
