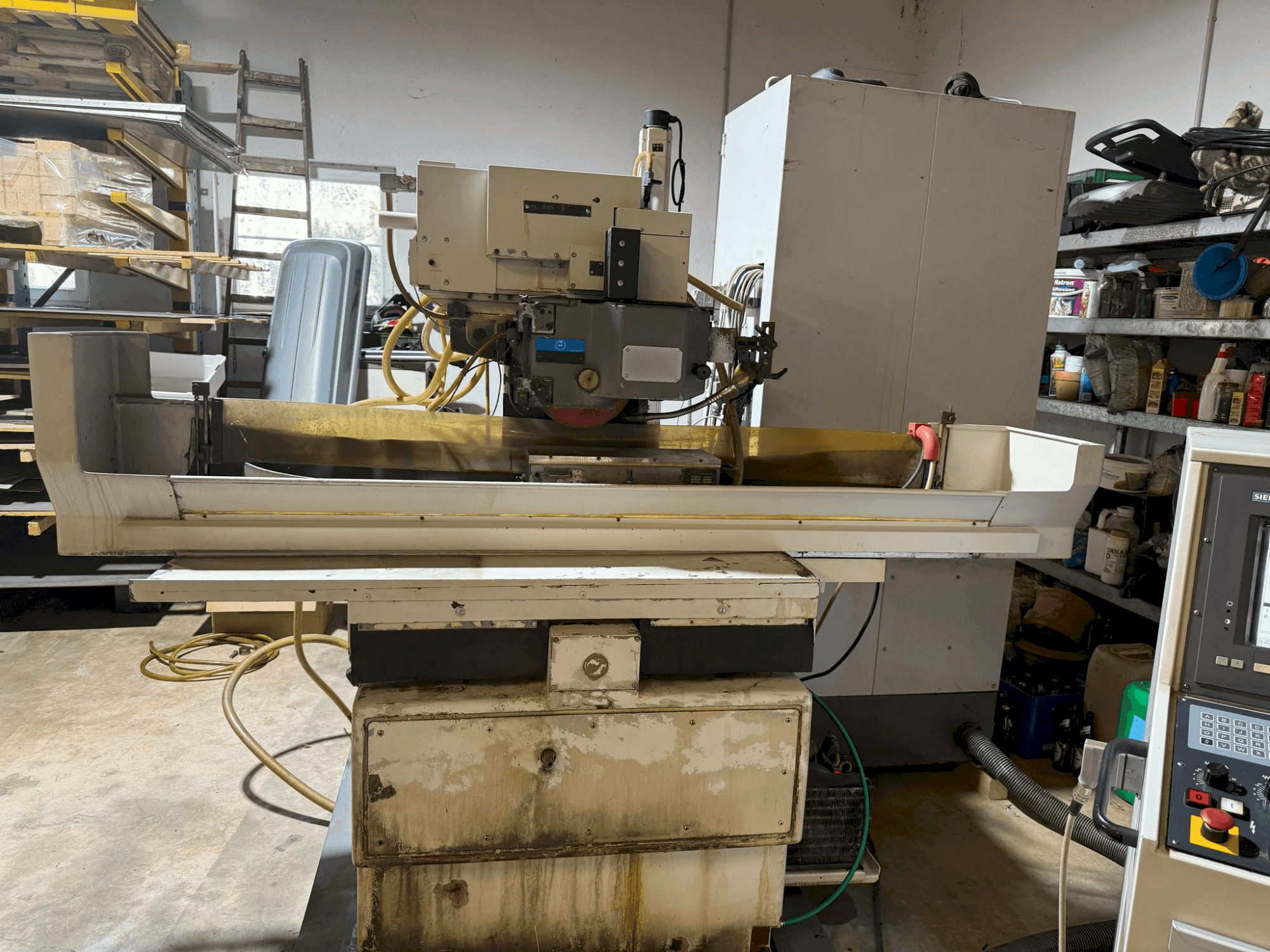

JUNG J 525C

Photo Gallery

JUNG - J 525CDE-GRI-JUN-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used JUNG J 525C Surface Grinder For Sale | gindumac.com

Show in original language

This 3-axis JUNG J 525C surface grinding machine was manufactured in 1998. It features a table clamping area of 600 x 200 mm, a magnetic clamping area of 500 x 200 mm, and a grinding length of 600 mm. The grinding wheel speed range is 800 - 4,200 rpm. If you are looking to get high-quality grinding capabilities, consider the JUNG J 525C machine we have for sale. Contact us for more information.

Overview

brand: JUNG
year: 1998
MODEL: J 525C
production hours: 56660
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine
control unit brand: SIEMENS

Technical Information - JUNG J 525C

General Data

Measurements width: 2700 MM
Measurements depth: 3000 MM
Measurements height: 2440 MM
Machine weight: 2500 KG

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 800 - 4200 1/MIN

Table

Table load: 100 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Usable x-axis pendulum stroke: 630 mm
Y-axis travel between limit switches (vertical movement): 400 mm
Z-axis travel between limit switches (lateral movement): 225 mm
Grinding length: 600 mm
Grinding width: 250 mm
Magnetic plate dimensions (l x w): 500 x 200 mm

Technical Machine Benefits

Table clamping area: 600 x 200 mm
Magnetic clamping area: 500 x 200 mm
Grindable area (including 25 mm wheel width): 600 x 250 mm
Distance from table top to upper limit switch (wheel diameter 250 mm): 370 mm
Cutting speed: 35 m/s
Grinding wheel diameter: 250/300 mm
Width: 25/30 mm
Bore: 51/76. 2 mm
X-axis speed for reciprocating grinding (infinitely adjustable): 1000 - 24000 mm/min
X-axis speed for creep feed grinding: 5 - 1000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
