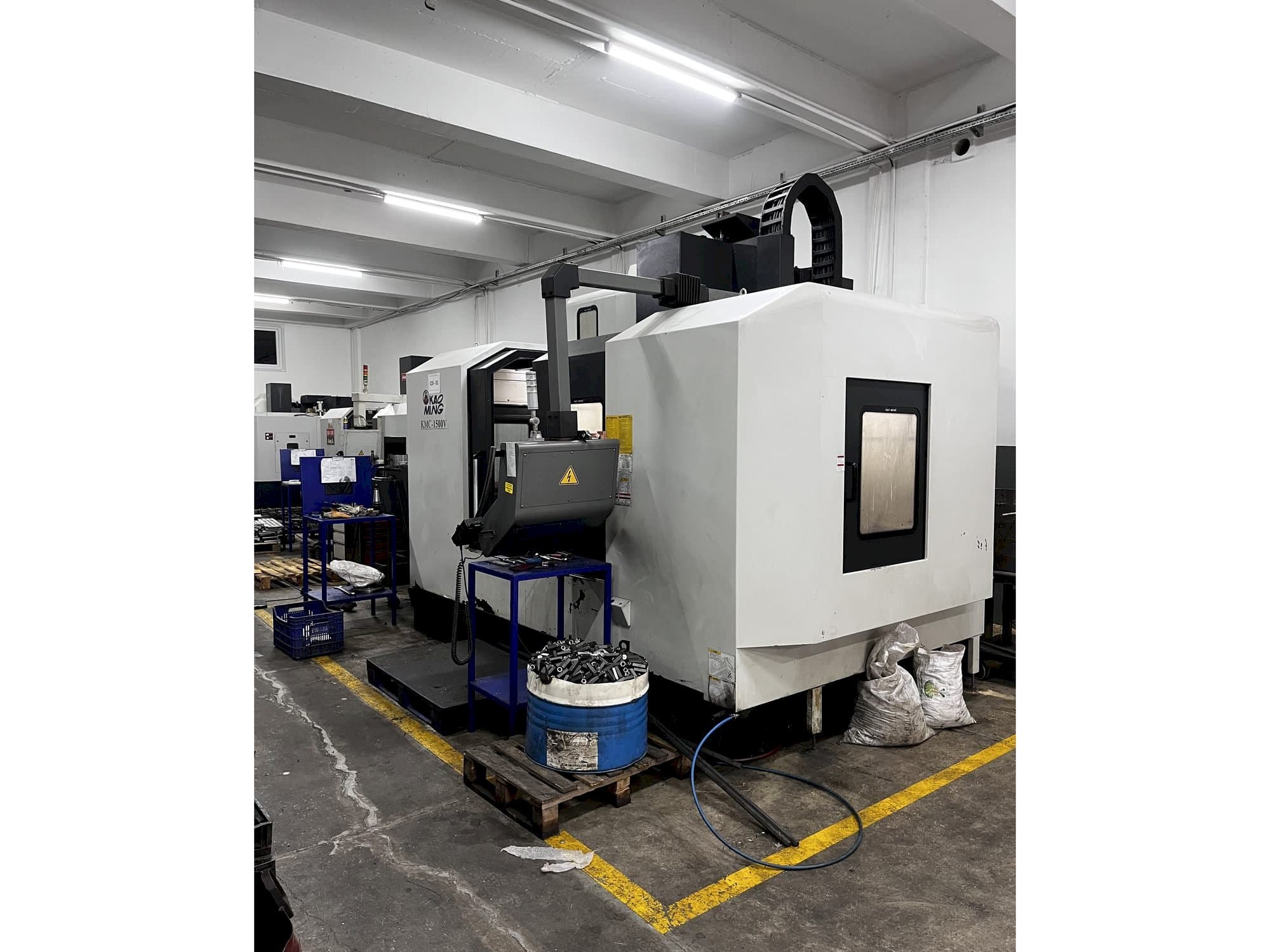

KAOMING KMC 1500V Vertical Machining center

Show in original language

This KAOMING KMC 1500V Vertical Machining center was manufactured in the year 2018 in Taiwan and has 22854 production hours, of which 10012 are spindle hours. It is equipped with an MITSUBISHI M80 control unit and has 3 axis. The machine has a spindle speed of 6000 rpm.

Overview

brand: KAOMING
year: 2018
MODEL: KMC 1500V
production hours: 22854
application type: Milling
Location: Turkey
machine type: Machining centers (vertical)
availability: Sold
control unit brand: MITSUBISHI

Technical Information - KAOMING KMC 1500V

General Data

Measurements width: 4170 mm
Measurements depth: 4148 mm
Measurements height: 3615 mm
Machine weight: 14000 kg

Control Unit

Brand: MITSUBISHI
Model: M80

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 20 kW
Number of axis: 3

Movement

X-AXIS Movement: 1530 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 800 mm

Table

Distance between: 200 - 1000 mm
Table load: 2200 kg

Tools

Slots in storage: 32
Max weight: 20 kg
Max tool diameter: 125 mm
Max tool length: 125 mm
Type of tool holder: BT50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool selection type: atc
- - Axis structure: box slide
- - Spindle type: gearbox

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
