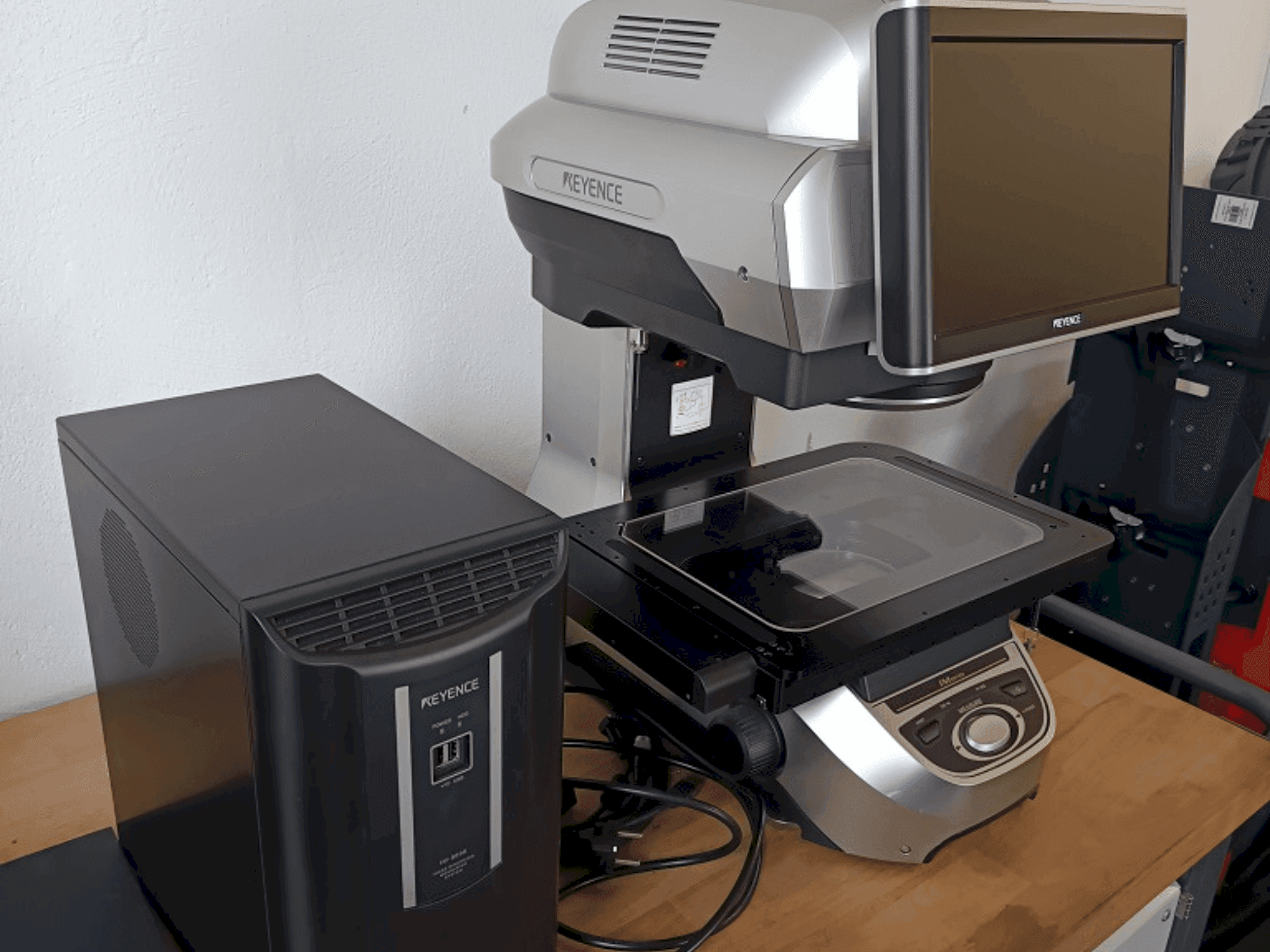

KEYENCE - 8030TDE-MEA-KEY-2023-00001

Machine Benefits

Technical machine benefits:

• Light Sensor Measurement

• Normal Coaxial Optics

• Image Sensor 1" 20-megapixel CMOS

• Display 12.1" LCD (1280×800)

• Dual telecentric lens

• High-precision: 225 × 125 mm

• Wide-field: ±1–2 µm

• High-precision: ±0.5–1.5 µm

• Measurement Accuracy (±2σ)

  Wide-field: up to ±9 µm

  High-precision: up to ±2 µm

• Outer Diameter Measurement Accuracy ±(2.8–4 µm)

• Measurement Range: 190 × 90

• Measurement Depth: 30 mm

• Diameter: 0.3 mm

• Measuring Force: 0.015 N

• Height Measurement

• Measurement Accuracy: ±(8 µm)

• Resolution: 1 µm

• Telecentric, LED ring (multi-angle)

• Interfaces LAN, USB 3.1 (4 ports), USB 2.0 (4 ports), DVI-D, 500 GB HDD

Extra information

• Power Supply

• Measuring Device: 100–240 V AC, 50/60 Hz, Consumption 430 VA

• Vibratory Finishing Machine: 230 V AC, 50 Hz, Power 700 W

• Ambient Conditions

• Temperature: 10–35 °C

• Humidity: 20–80% RH

• Vibratory Finishing Machine Specifications

• Water Tank Volume: 45 lTrough

• Volume: 35 l
