This 3-axis KEYENCE MD-X2500A laser marking machine was manufactured in 2023. It features a marking area of 125 x 125 x 42 mm and a maximum scan speed of 12,000 mm/s. The machine operates with a YVO4 laser type and offers a laser output power of 25 W. If you are looking to get high-quality marking capabilities, consider the KEYENCE MD-X2500A machine we have for sale. Contact us for further details.
Overview
- brand: KEYENCE
- year: 2023
- MODEL: MD-X2500A
- production hours: 14
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Laser Marking Machine
Technical Information - KEYENCE MD-X2500A
Dimensions
- Machine Height: 421 mm
- Machine Length: 260 mm
- Machine Weight: 36.8 kg
- Machine Width: 405 mm
Technical Specification
- Laser Power: 0.025 kW
Additional Information
- Marking Laser Type: YVO4 laser, Class 4 Laser Product
- Wavelength: 1064 nm
- Laser Output Power: 25 W (Measured: 24.90 W on Feb 27, 2026)
- Q-Switch Frequency: CW (Continuous Wave), 1 to 400 kHz
- Distance Laser: Semiconductor laser (683 nm, 5.0 mW, Class 3R)
- Guide Laser / Working Distance Pointer: Semiconductor laser (655 nm, 1.0 mW, Class 2)
- Marking Area: 125 x 125 x 42 mm
- Standard Working Distance: 189 mm (±21 mm)
- Marking Resolution: 2 µm
- Scan Speed: Max. 12000 mm/s
- Rated Voltage & Power Consumption: 100 to 240 VAC ±10% (50/60 Hz), 850 VA max.
- Operating Temperatures: Ambient 0 to 40°C (Storage: -10 to 60°C)
- Enclosure Rating: IP64 (Marking Head)
- Cooling Method: Forced air cooling
- Dimensions & Weight (Controller): 260 x 405 x 421 mm; Weight: 23.0 kg
- Dimensions & Weight (Marking Head): 145 x 432.5 x 230 mm; Weight: 13.8 kg
- Controller Operating Time: 14–15 hours
- Laser Operating Time: 13–14 hours
- Scanner Operating Time: 0 hours
- Shutter Operations Count: 36–40
- Total Marking Count: 52–55

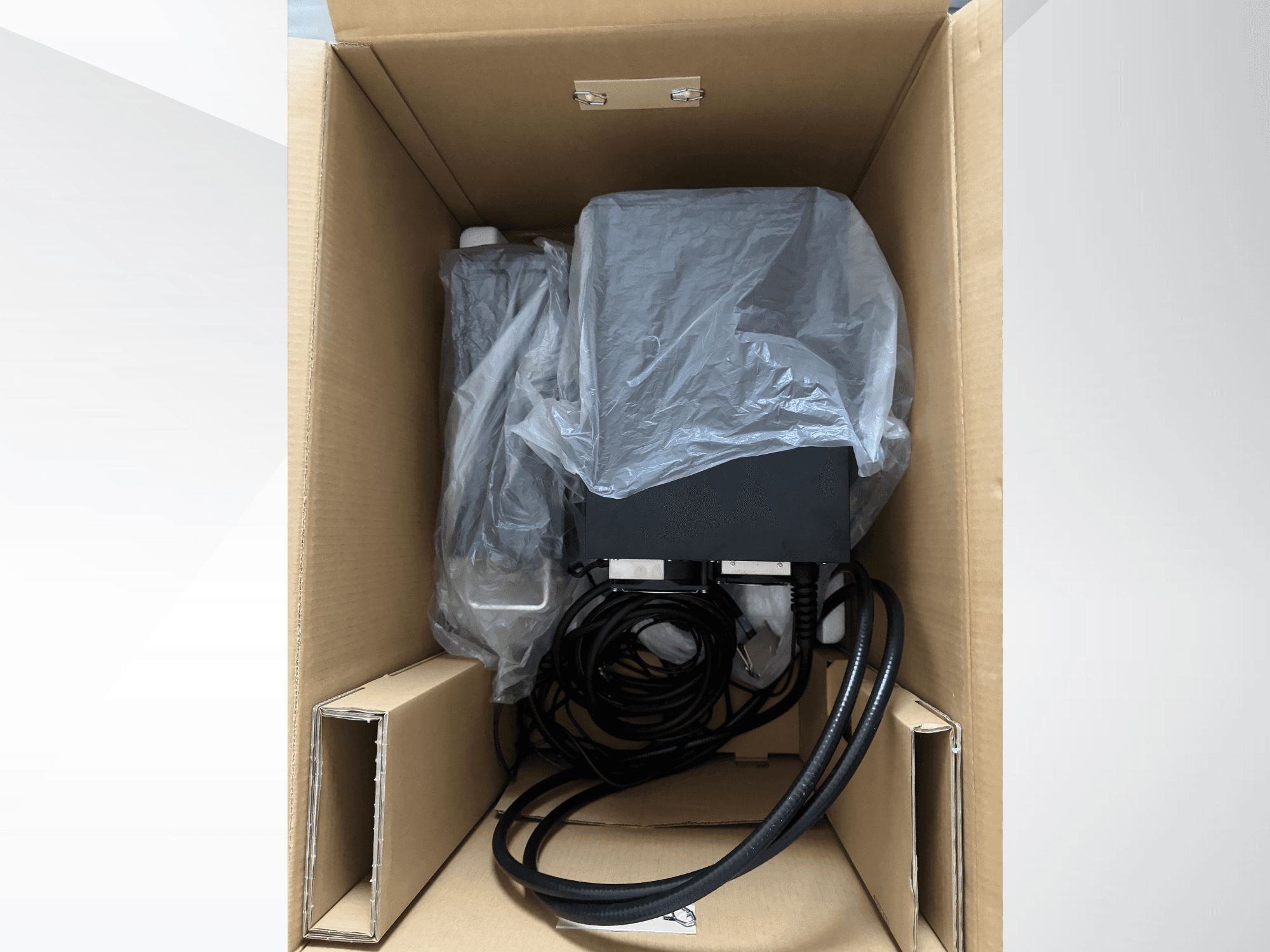

- Included / Scope of Delivery: Marking Head, Controller, Z Tracking Add-in (MD-AD-ZT), 3D Function Add-in (MD-AD-3D), Marking Builder Plus Software (MB-PH1 Ver 2.4.0), User Manuals, Original KEYENCE Packaging
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
