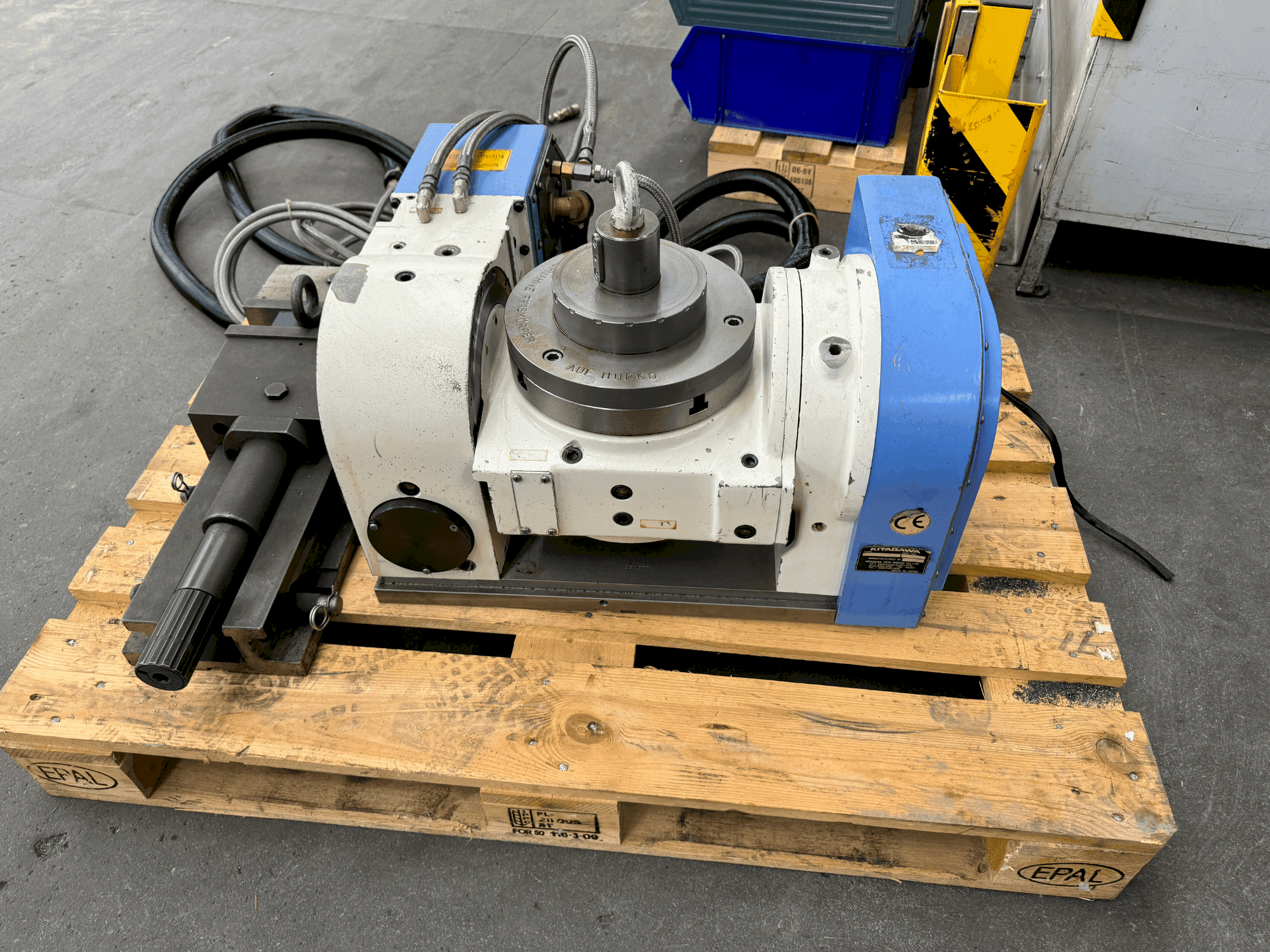

Front view of KITAGAWA TT251 HYY01 - NC ROTARY TABLE (2005)  machine

KITAGAWA - TT251 HYY01 - NC ROTARY TABLEDE-MIL-KIT-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This KITAGAWA TT251 HYY01 - NC ROTARY TABLE was manufactured in 2005 in Japan. It is a high rigidity tilting table to suit 5 axis machining centres on large work pieces with heavy cutting. This NC rotary table stands out for high accuracy and the minimum size in its class. As twin axis table with rotating and tilting axis it is the perfect extension to convert a 3-Axis Machining Centre into a 5-axis machining solution to provide a 4th axis NC rotation axis and a 5th axis tilting of the positioning axis in conjunction with the plain text software. Thus, 5-axis simultaneous can be enabled in conjunction with the ISO code software and corresponding programming station of the machine. This KITAGAWA can be purchased with a HURCO VMX 50/40T Vertical Machining Centre (YOM: 2005, Location: Germany) to extend it from 3 to 5 axes. Contact us anytime for further details!

Overview

  • brand: KITAGAWA
  • year: 2005
  • MODEL: TT251 HYY01 - NC ROTARY TABLE
  • application type: Other Machine Tools
  • Location: Germany
  • machine type: Machine Tool
  • availability: Sold

Technical Information - KITAGAWA TT251 HYY01 - NC ROTARY TABLE

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 4th axis nc rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software
      • - 5-axis simultaneous in conjunction with the iso code software and corresponding programming station
      • - Table diameter: ø250
      • - Center height 225 mm
      • - Spindle passage 70 mm
      • - Tilting angle range: -35°~+110°
      • - Clamping torque (n・m) (at pneumatic 0. 45mpa /hydraulic 3. 5mpa) // rotating axis: 900 // tilting axis: 1200
      • - Centre hole dia (mm): φ100h7
    • Qualitative Machine Benefits:
      • - High rigidity tilting table to suit 5 axis machining centres on large work pieces with heavy cutting
      • - High accuracy
      • - This kitagawa can be purchased with a hurco vmx 50/40t vertical machining centre (yom: 2005, location: germany) to extend it from 3 to 5 axes
      • - Minimum size in its class
      • - Twin axis table with rotating and tilting axis
      • - Perfect extension to convert a 3-axis machining centre into a 5-axis machining solution

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
