Kitamura - 4XTSI-MIL-KIT-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Kitamura 4XT For Sale | gindumac.com

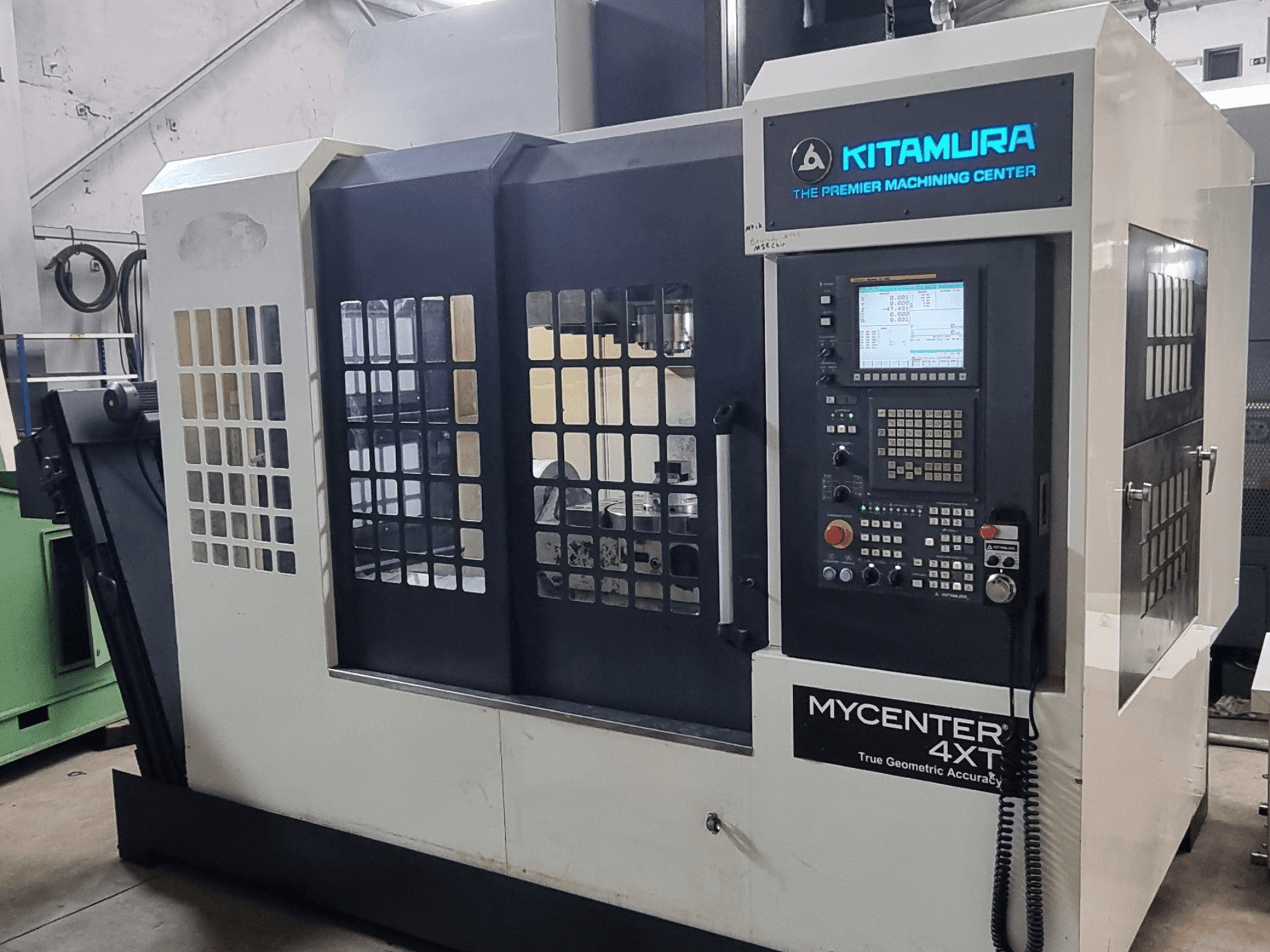

This 3-axis Kitamura 4XT was manufactured in 2013. It features impressive travels of X 800 mm, Y 610 mm, and Z 510 mm, along with a maximum workpiece diameter of 630 mm. The machine is equipped with a spindle speed of 12,000 rpm and a tool capacity of 30 tools. If you are looking to get high-quality machining capabilities, consider the Kitamura 4XT vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Kitamura
- year: 2013
- MODEL: 4XT
- production hours: 4055
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Kitamura 4XT
Control Unit
- Control Brand: FANUC
- Control Model: 0i-MD
Dimensions
- Machine Height: 2720 mm
- Machine Weight: 7300 kg
- Machine Width: 3420 mm
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 26 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
- Tool Stations: 30
Additional Information
Table diameter: 400 mm
Maximum workpiece diameter: 630 mm
Rapid traverse (X/Y/Z): 36 / 36 / 36 m/min
Spindle torque: 170 Nm
Through-spindle coolant: 15 bar
Enclosure wash-down: Yes
Connectivity: USB, Ethernet, CF card, Serial
Machining hours: 4,055 h
Additional equipment
Integrated quick clamping system: Lang 96 mm
Chip removal: 2x screw conveyors and belt chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
