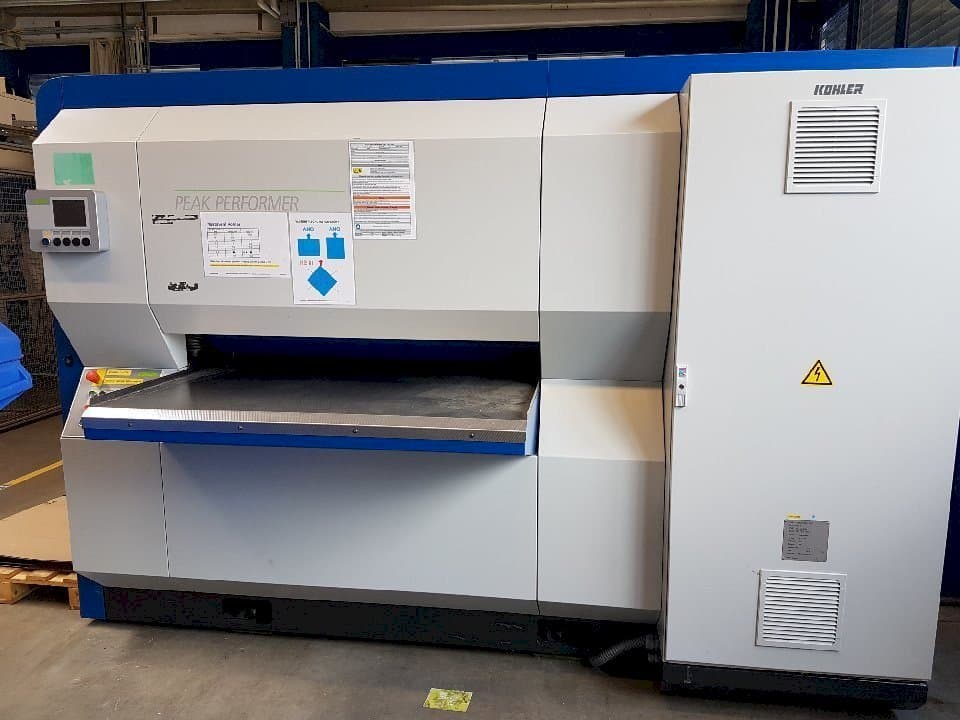

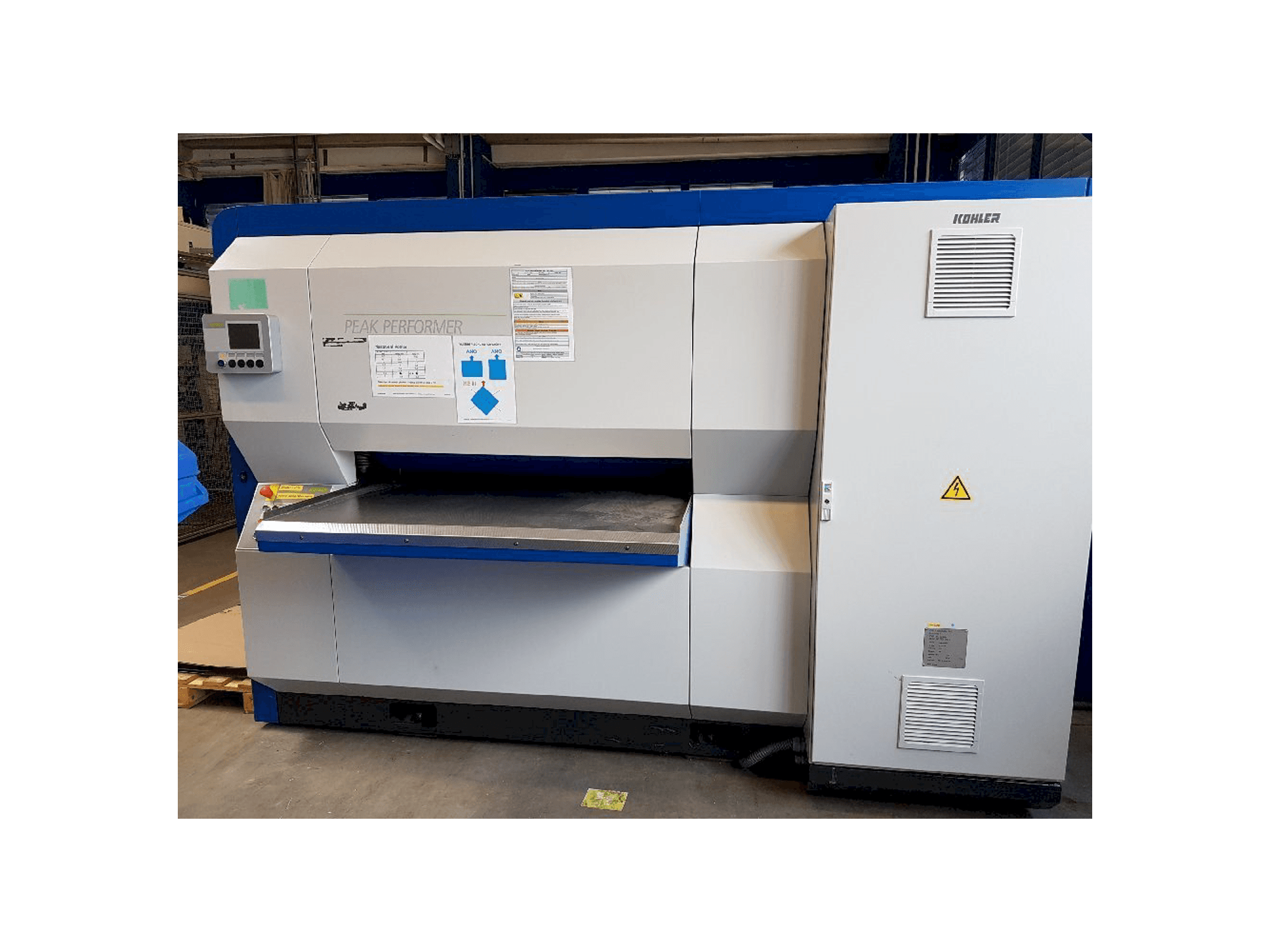

KOHLER PEAK PERFORMER PG 40.1250/21

Machine Benefits

• Technical Machine Benefits:
  • - It straightens sheets from 0. 2 to 40 mm in contract production at the highest level
  • - In order to achieve a particularly stiff support of the straightening rolls and thus a reproducible straightening result, the straightening rolls are supported by numerous extra-wide back-up rolls over a length of almost 50 %.
  • - The lifetime lubrication ensures maintenance-free operation.
  • - The straightening rolls are now driven directly by geared motors instead of the usual transfer gearboxes and cardan shafts. Less wear and a noticeably higher energy efficiency in the drive train.
  • - The more direct input of drive power into the straightening rolls increases the cross-sections of the material that can be straightened, which significantly enlarges the working area, especially with wider plates.
  • - The interface allows a data connection to erp systems for data exchange
  • - The ip interface enables a defined group of users to access the peak performer and all status information online at any time.
  • - Extremely precise concentricity, higher power input, low wear and reproducible straightening results.
  • - The intuitive user guidance speeds up the adjustment of the parts straightener to different materials
  • - Modern multi-finger touch display
• Qualitative Machine Benefits:
  • - Teleservice for plc functions via internet: advance diagnosis in the event of system malfunctions, fast and cost-effective programme adjustments and the uploading of updates.
  • - For further improvement of the straightening result, manual readjustment is possible. Implausible entries are detected and displayed.
