Komax ADS 123 (Wire Storage Unit)

• Manufacturer: Komax France

• Power Supply: 3 × 400 V (3P+N)

• Frequency: 50–60 Hz

• Maximum Power Consumption: 5,500 VA

• Air Pressure: 4–6 bar

Cosmotec Cooling Unit

• Manufacturer: Cosmotec

• Model: XVA36 03 320

• Frequency: 50/60 Hz

• Current: 0.51 A

Schunk KM-CFK-564MF (Welding Module 1)

• Manufacturer: Schunk

• Model: KM-CFK-564MF

• Year of Construction: 2012

• Rated Power (50% Duty Cycle): 120 kVA

• Rated Primary Voltage: 500 V

• Rated Frequency: 1000 Hz

• Supply Power: 43 kVA

• Secondary Working Current (50% Duty Cycle): 15.6 kA

• Secondary Short-Circuit Current: 120 kA

• Secondary Open-Circuit Voltage: Up to 8 V

• Electrode Force: 31–187 daN

• Weight: 180 kg

Schunk KM-CFK-564MF (Welding Module 2)

• Manufacturer: Schunk

• Model: KM-CFK-564MF

• Year of Construction: 2012

• Rated Power (50% Duty Cycle): 120 kVA

• Rated Primary Voltage: 500 V

• Rated Frequency: 1000 Hz

• Supply Power: 43 kVA

• Secondary Working Current (50% Duty Cycle): 15.6 kA

• Secondary Short-Circuit Current: 120 kA

• Secondary Open-Circuit Voltage: Up to 8 V

• Electrode Force: 31–187 daN

• Weight: 180 kg

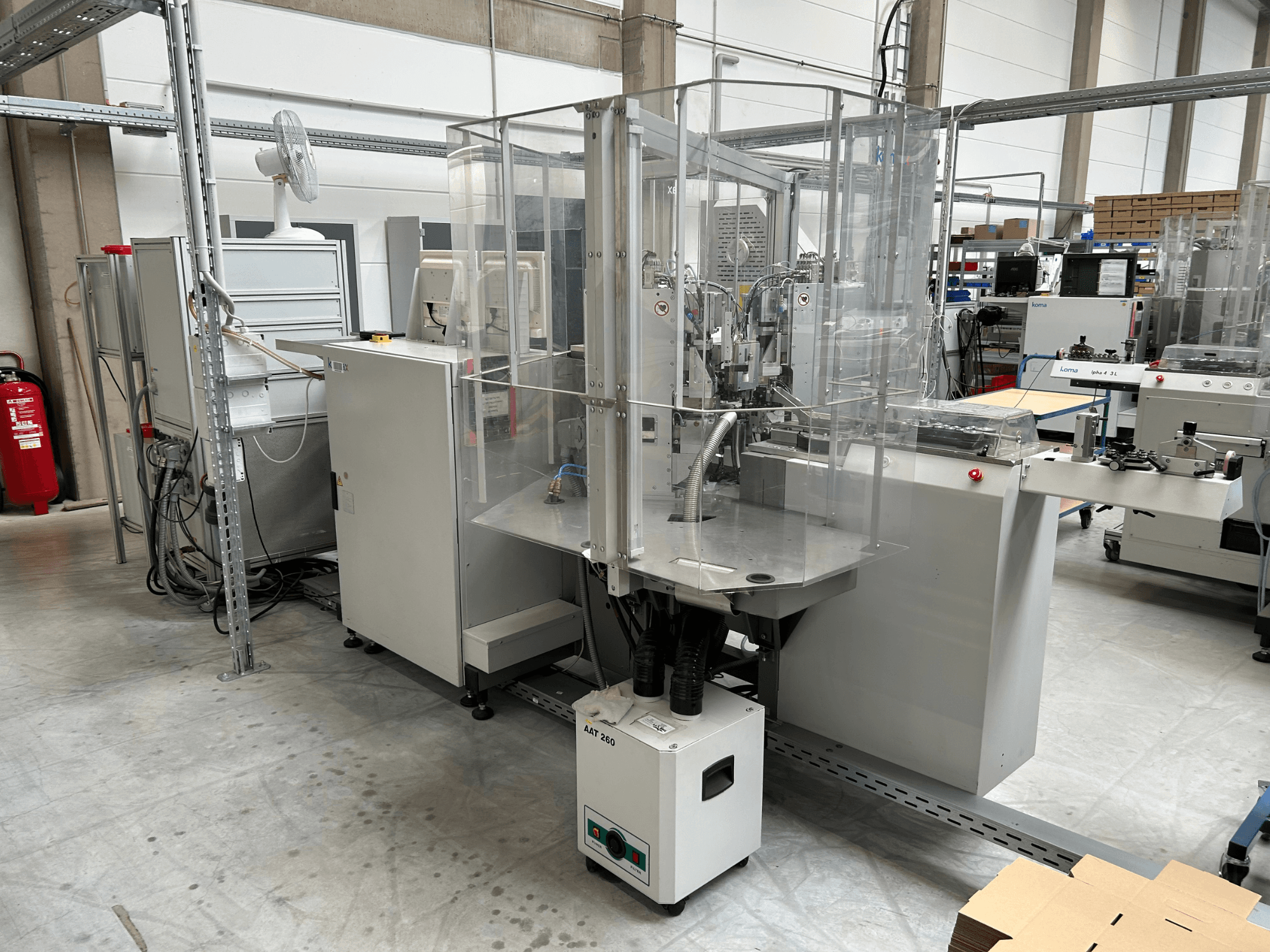

Scope of the system:

• Komax Alpha 433 L fully automatic machine

• Komax ADS 123 wire storage unit

• Safety enclosure

• Extraction system (AAT 260)

• Operating computer and control unit

• Various crimping and processing modules, optional

• Further optional accessories available upon request

Used for:

• The system is in working order and has been used for the automatic processing of cables, including cutting, stripping, crimping and welding

• All systems are currently still powered and fully functional
