- Used Injection moulding machine Krauss Maffei 150-700 C1 - 2000 - for sale | gindumac.com

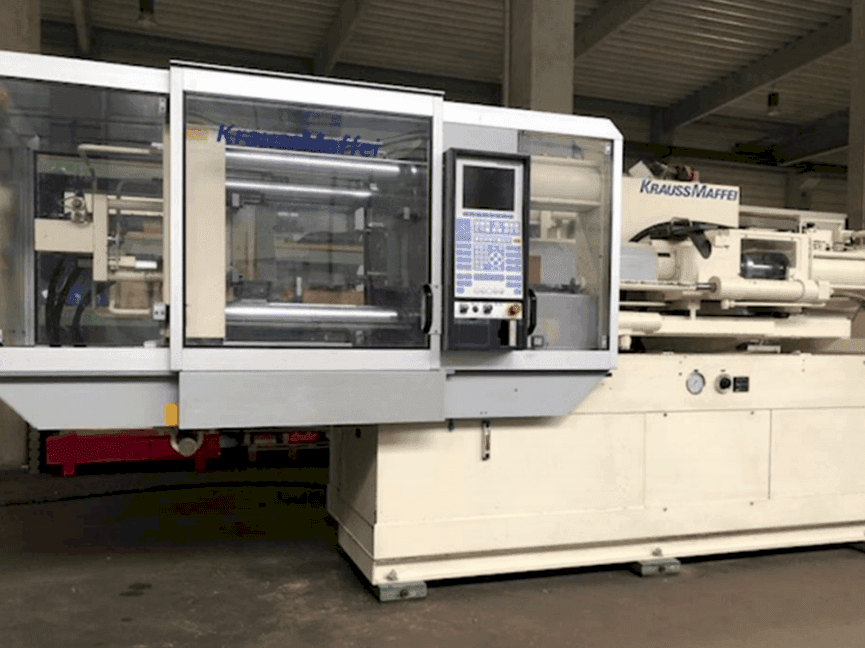

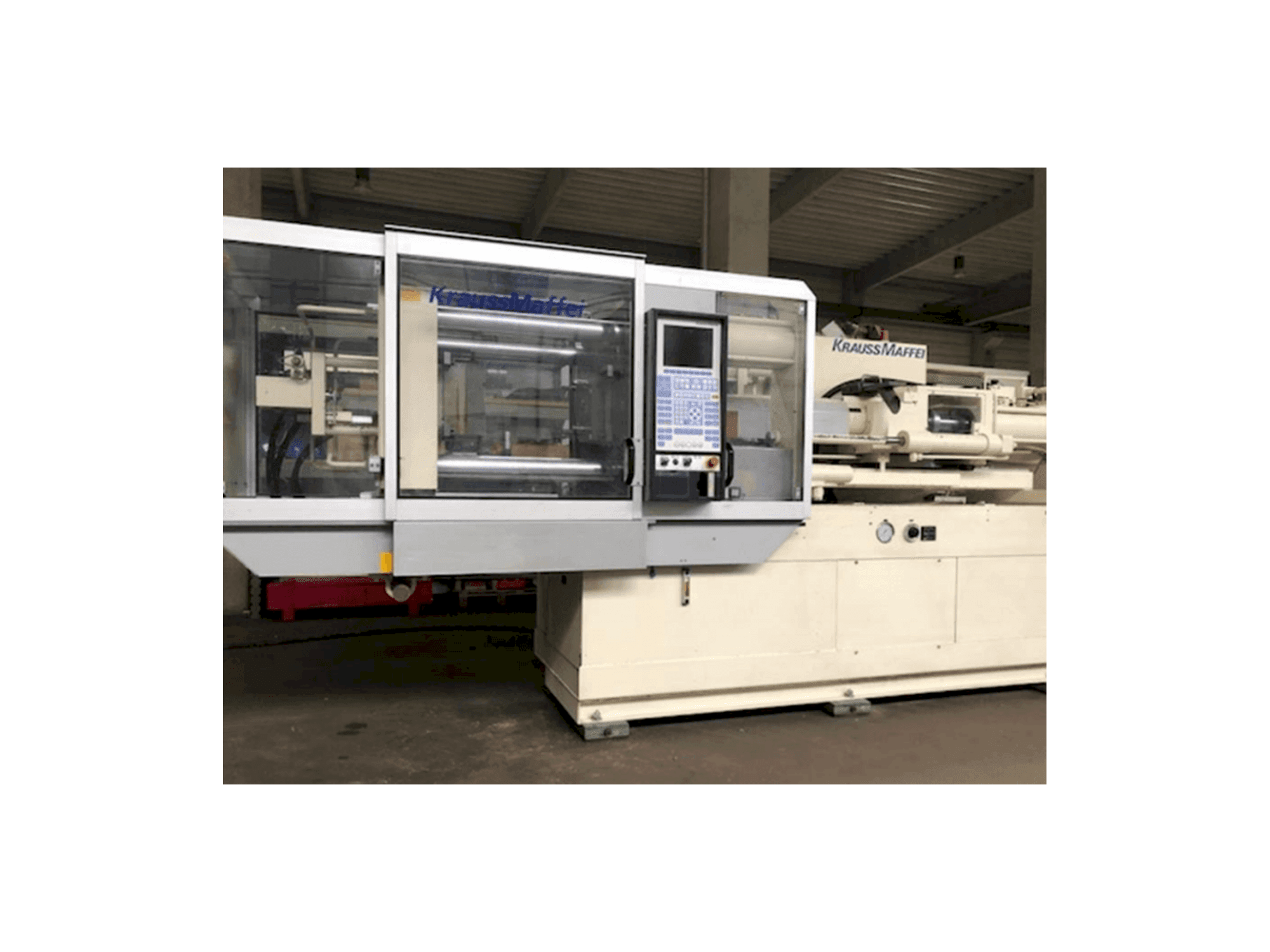

This KRAUSS MAFFEI 150-700 C1 Injection moulding machine was manufactured in 2000 in Germany. This machine offers a clamping force of 1500 kN and features a mold mounting platen sized at 780 mm x 790 mm. With a tool opening stroke of 600 mm and an opening width of 900 mm. Screw diameter options include 45 mm, 50 mm, and 55 mm, while injection pressures range from 1564 bar to 2336 bar. The screw speed reaches up to 356 rpm, with a dry running speed of 1700 l/min. It requires approximately 345 liters of oil filling. Contact us anytime for further information.
Overview
- brand: Krauss Maffei
- year: 2000
- MODEL: 150-700 C1
- production hours: 47059
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Immediately
Technical Information - Krauss Maffei 150-700 C1
General Data
- Measurements width: 1510 MM
- Measurements depth: 4660 MM
- Measurements height: 2190 MM
- Machine weight: 6300 KG
Injection Unit
- Screw diameter: 45mm/50mm/55mm
- Injection pressure: 2336/1892/1564 bar
Clamping unit
- Clamping force: 1500 KN
- Opening stroke: 600
- Size of mold platens: 780 x 790
Additional Information
- Technical Machine Benefits:
- - Opening width: 900mm
- - Dry running speed: 1700l/min
- - Oil filling: approx. 345l
- - Screw speed standard/ze 255/356
- - Screw speed nom. /max. 256/410
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
