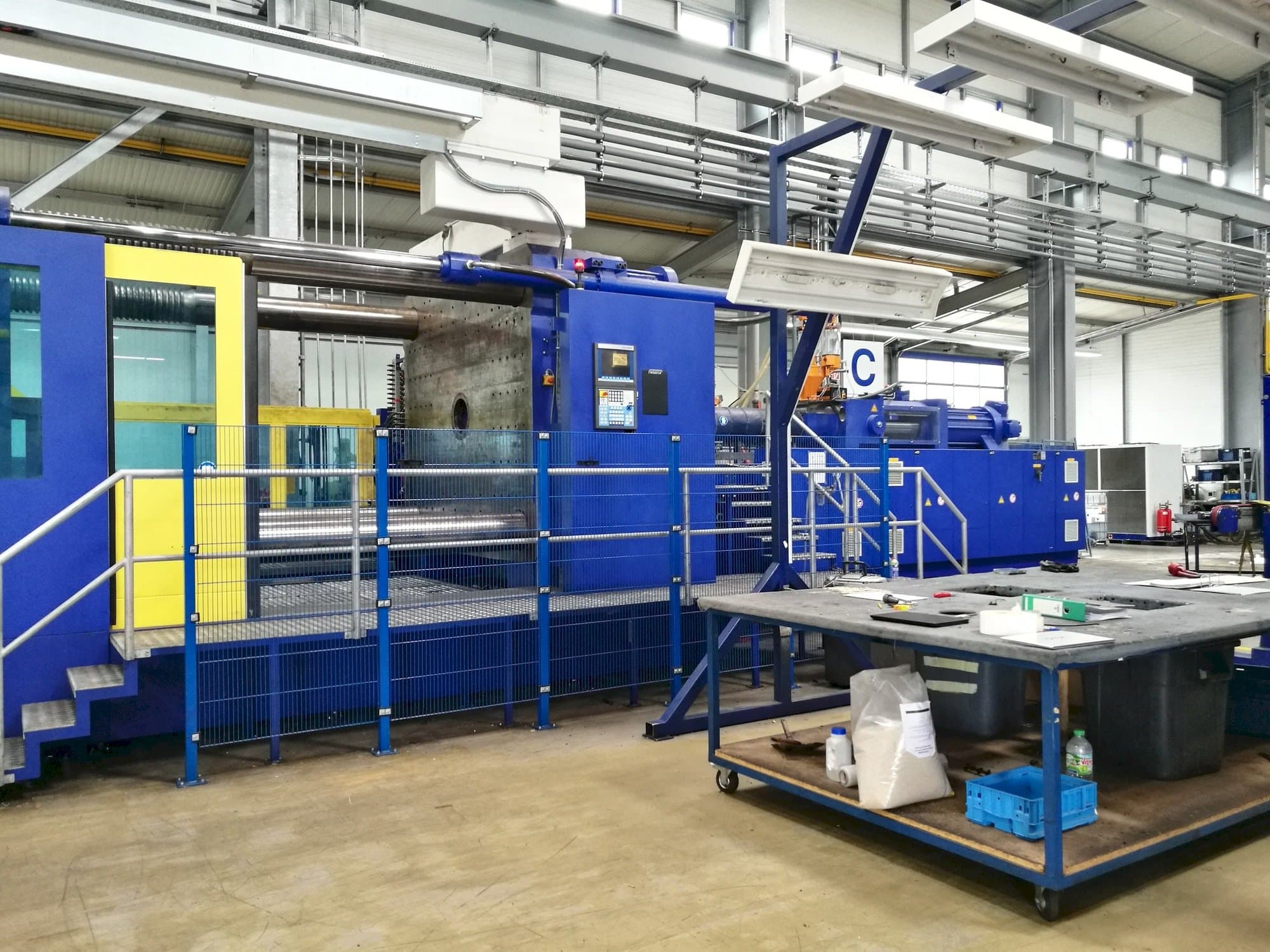

Front view of Krauss Maffei 2300-12000 MX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 2300-12000 MX

Photo Gallery

Krauss Maffei - 2300-12000 MXDE-INJ-KRA-2011-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 2300-12000 MX Injection Moulding Machine

Show in original language

This Krauss Maffei 2300-12000 MX Injection Moulding Machine was made in the year 2011 in Germany. Equipped with a control unit of the same brand, this machine operates with a clamping force of 23000 kN and an injection pressure of 2296 bar.

Overview

brand: Krauss Maffei
year: 2011
MODEL: 2300-12000 MX
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 2300-12000 MX

General Data

Measurements width: 14,17 m MM
Measurements depth: 4, 04 m MM
Measurements height: 2,93 m MM
Machine weight: 83461 kg

Injection Unit

Screw diameter: 105 mm
Shot weight: 4728 G
Stroke volume: 5195 CM³
Injection pressure: 2296 bar
Screw speed: 103/145 rpm

Clamping unit

Clamping force: 23000 kN
Distance between bars: 2020 x 1620 mm
Mould height min: 800 mm
Mould height max: 1800 mm
Ejector stroke: 400 mm
Ejector force for / back: 400/200 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
