➤ Used Krauss Maffei 250 - 1000 CX | Injection Moulding

Show in original language

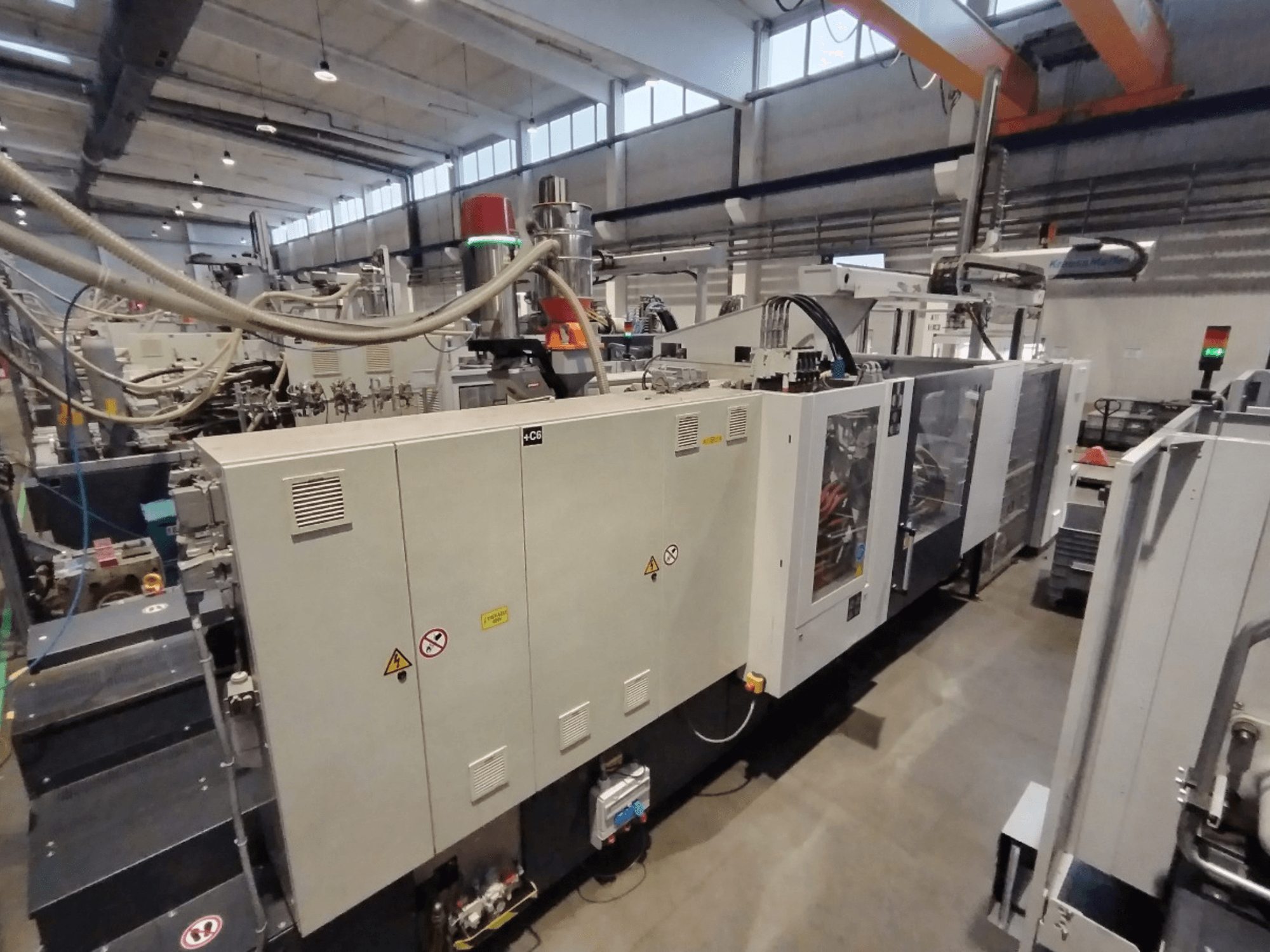

This Krauss Maffei 250 - 1000 CX hydraulic injection moulding machine was manufactured in 2017. It features a clamping force of 2500 kN and a maximum mold weight of 3430 kg. The machine includes a linear robot LRX 150 for enhanced automation. Consider the opportunity to buy this Krauss Maffei 250 - 1000 CX hydraulic injection moulding machine. Contact us for further details.

Overview

brand: Krauss Maffei
year: 2017
MODEL: 250 - 1000 CX
production hours: 44678
application type: Injection Moulding
Location: Hungary
machine type: Hydraulic Injection Moulding Machine
Available from: 01/06/2027

Technical Information - Krauss Maffei 250 - 1000 CX

Technical Specification

Clamping Force: 2500 kN

Additional Information

Tie bar spacing (H x V): 630 x 630 mm
Platen dimensions: 995 x 1050 mm
Mold installation height (min): 330 mm
Platen distance: 1150 mm
Max mold weight: 3430 kg total (fixed: 1715 kg / moving: 2286 kg)
Core pull control: 4 units (2 x fixed platen/FAP; 2 x moving platen/BAP)
Shut-off nozzle: 4-fold hydraulic cascade
Injection unit 1 (code 1000):
- Screw diameter: 55 mm
- Injection pressure: 1904 bar
- Stroke volume: 523 ccm
- Shot weight (PS): 476 g
- Injection flow (PS): 404 g/s
Armored unit: Yes (ZE 33.00)
Printer interface: Yes
Condition: Well-maintained and serviced

Additional equipment

Automation: Linear robot LRX 150 with B/C axis combination (KM Linear Robot LRX 150 included)
Hot runner control: 12-fold
Cooling: 4 x HB 100

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
