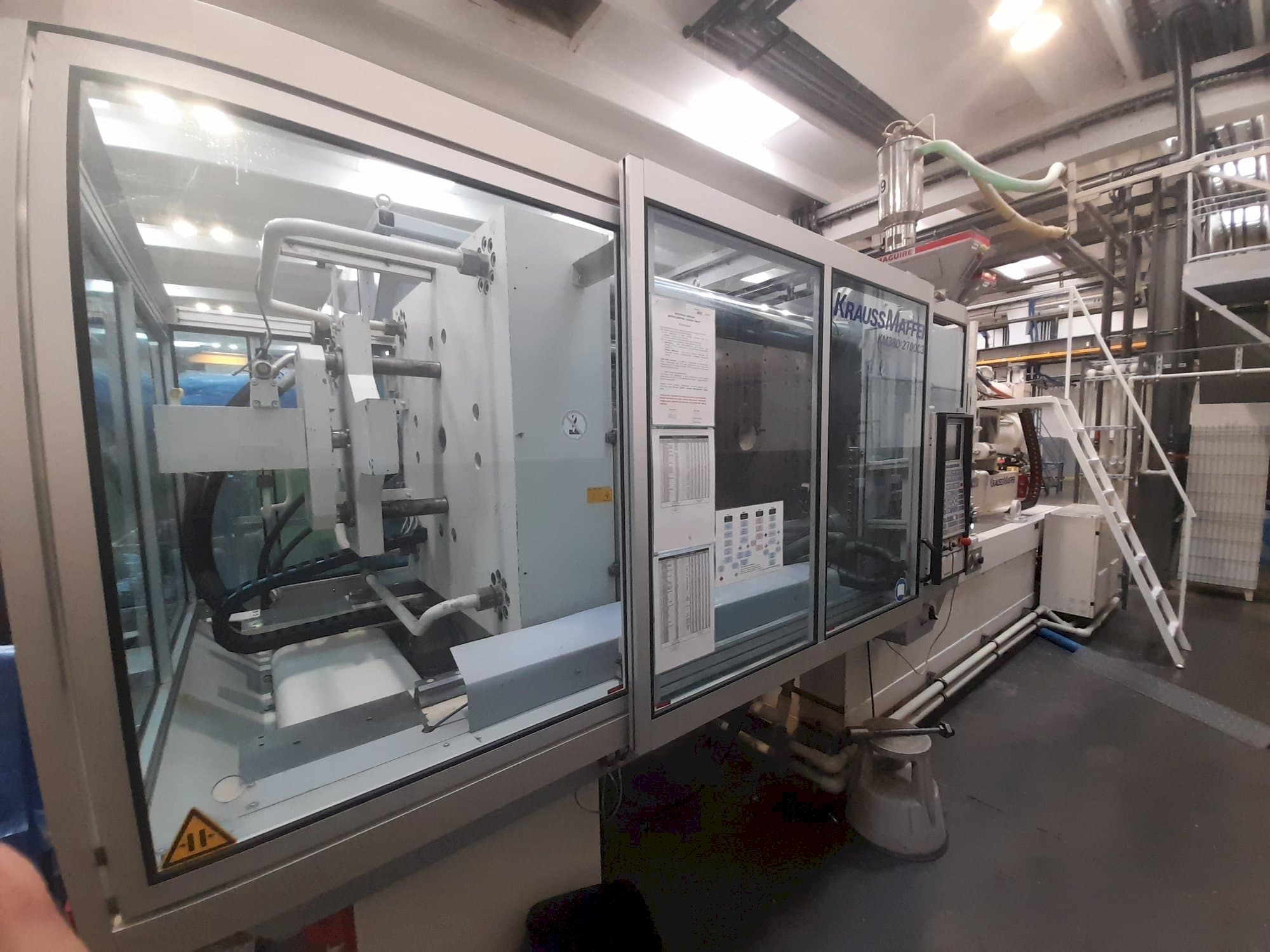

Left side view of Krauss Maffei 380-2700 C3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 380-2700 C3

Krauss Maffei - 380-2700 C3PL-INJ-KRA-2008-00005

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 380-2700 C3 Injection moulding machine

Show in original language

This Krauss Maffei 380-2700 C3 Injection moulding machine was made in the year 2008 and has 84588 hours. It is equipped with a Krauss Maffei MC4 control unit. The machine has a clamping force of 3500 kN and a screw diameter of 80 mm.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 380-2700 C3
production hours: 84588
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 380-2700 C3

General Data

Measurements width: 7370 mm
Measurements depth: 2310 mm
Measurements height: 2510 mm
Machine weight: 23200 kg

Control Unit

Model: MC4
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 80 mm
Shot weight: 1304 g
Stroke volume: 1433 CM³
Injection pressure: 1829 bar

Clamping unit

Clamping force: 3500 kn
Opening stroke: 250 kn

Additional Equipment

- has a hydraulic ejector , hydraulic core x 1 , pneumatic core x 1 and single firing pin closure - no sequence

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar spacing (h) 800 mm
- - Tie bar spacing (v) 800 mm
- - Platen length: 1270 mm
- - Platen width: 1200 mm
- - Opening of the press: 1020 mm
- - L/d ratio: 23
Qualitative Machine Benefits:
- - It is connected and ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
