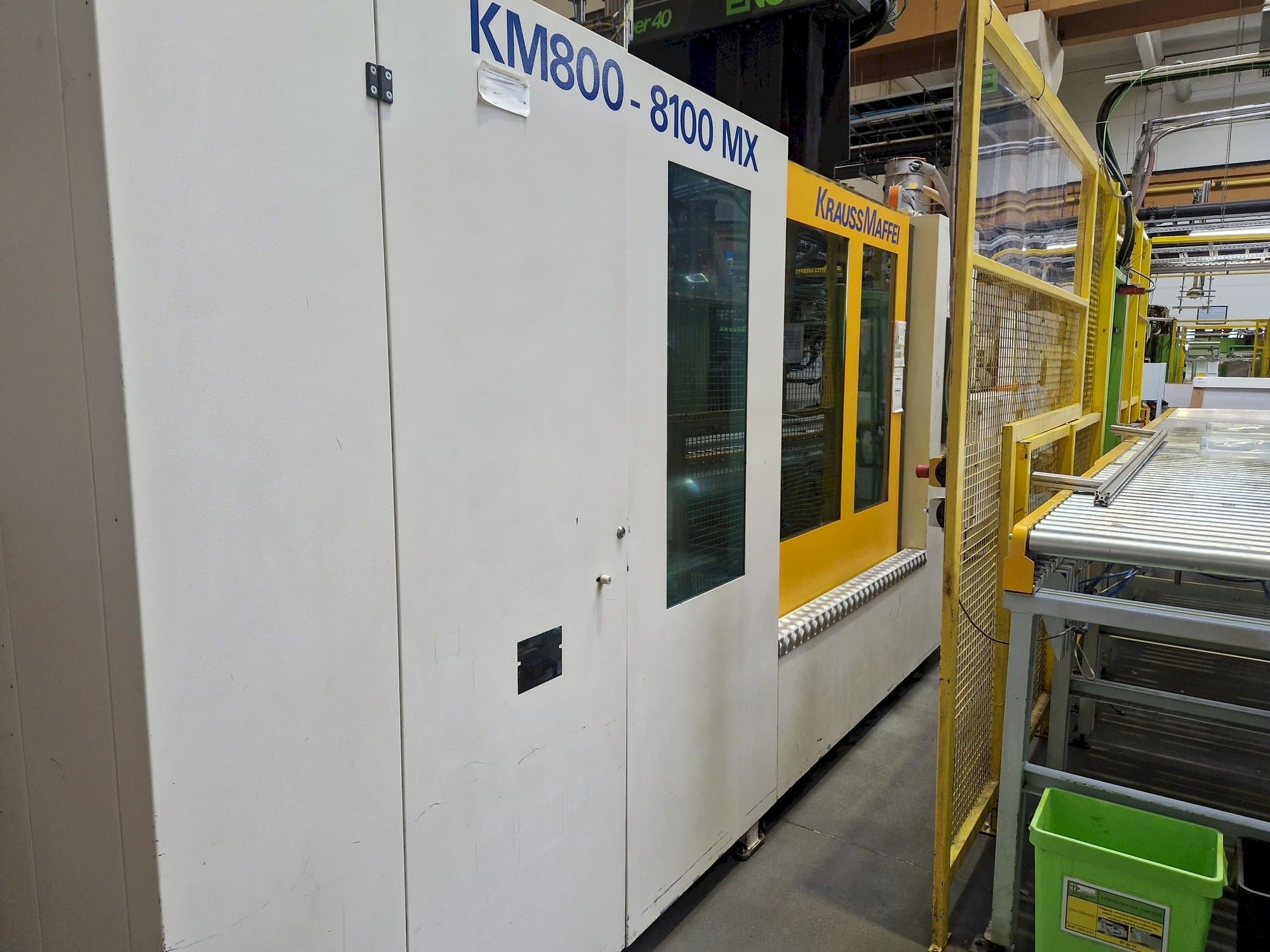

This Krauss Maffei 800-8100 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 93845 production hours. It is equipped with a Krauss Maffei MC5 control unit. The machine has a clamping force of 8000 kN and a screw diameter of 105 mm.
Overview
- brand: Krauss Maffei
- year: 2008
- MODEL: 800-8100 MX
- production hours: 93845
- application type: Injection Moulding
- Location: Poland
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Krauss Maffei
Technical Information - Krauss Maffei 800-8100 MX
General Data
- Measurements width: 10810 mm
- Measurements depth: 2920 mm
- Measurements height: 2510 mm
- Machine weight: 45000 kg
Control Unit
- Brand: Krauss Maffei
- Model: MC5
Injection Unit
- Screw diameter: 105 mm
- Injection pressure: 4546 BAR
Clamping unit
- Clamping force: 8000 kN
- Opening stroke: 1600 mm
- Distance between bars: 1120 / 1000 mm
- Mould height min: 500 mm
- Mould height max: 1100 mm
- Ejector stroke: 0 – 300 mm
Additional Information
- Technical Machine Benefits:
- - Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
- - Clearance between the tables (mm) 2100 mm
- - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
- - Quantity core pulling: 2 pcs, table whole tread: m24
- - Quantity of hydraulic oil: 1500 liters, heating power: 59 kw
- - Motor: 110 / 117 kw
- - Safeguard the door: pneumatic, valve terminal: 8 nozzles
- - Air valves: 8 valves
- Qualitative Machine Benefits:
- - The machine is in very good condition, full documentation and service history available, ready for tests.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
