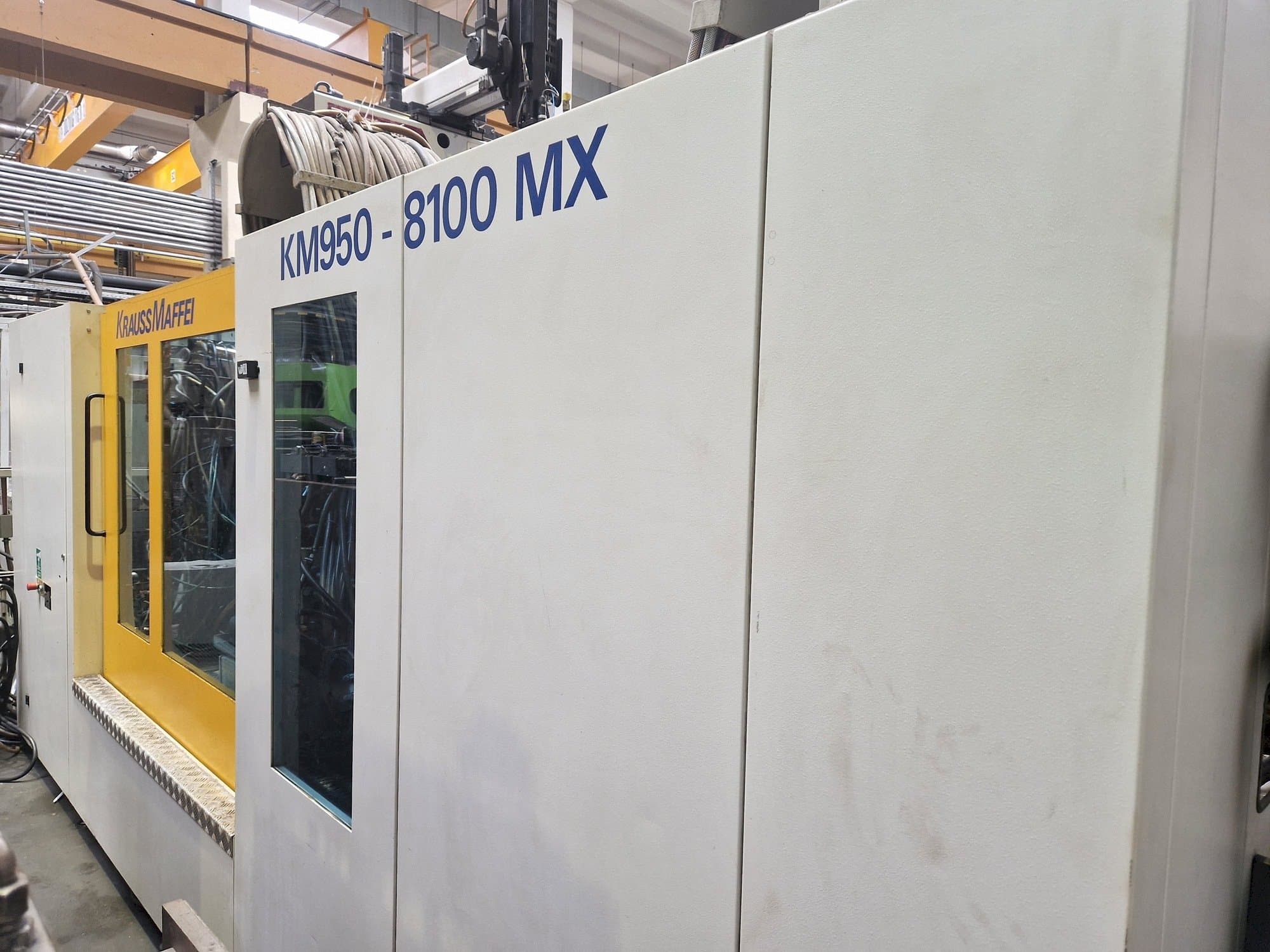

Front view of Krauss Maffei 950-8100 MX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 950-8100 MX

Photo Gallery

Krauss Maffei - 950-8100 MXPL-INJ-KRA-2008-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 950-8100 MX Injection moulding machine

Show in original language

This Krauss Maffei 950-8100 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 98085 production hours. It is equipped with Krauss Maffei MC5 control unit. The machine has a clamping force of 9500 kN and a screw diameter of 105 mm, is in good condition and well maintained.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 950-8100 MX
production hours: 98085
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 950-8100 MX

General Data

Measurements width: 11230 mm
Measurements depth: 3420 mm
Measurements height: 2610 mm
Machine weight: 56000 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 105 mm
Injection pressure: 4546 BAR

Clamping unit

Clamping force: 9500 kN
Opening stroke: 1900 mm
Distance between bars: 1400 / 1150 mm
Mould height min: 500 mm
Mould height max: 1200 mm
Ejector stroke: 0 – 300 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine is in very good condition, full documentation, and service history available, ready for tests.

Technical Machine Benefits

Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
Clearance between the tables (mm) 2400 mm
Capacity injection: 4546 cm3
Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
Table whole tread: m24, quantity of hydraulic oil: 1500 liters
Motor: 110 / 117 kw, heating power: 59 kw
Safeguard the door: pneumatic
Valve terminal: 8 nozzles
Air valves: 3 valves

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
