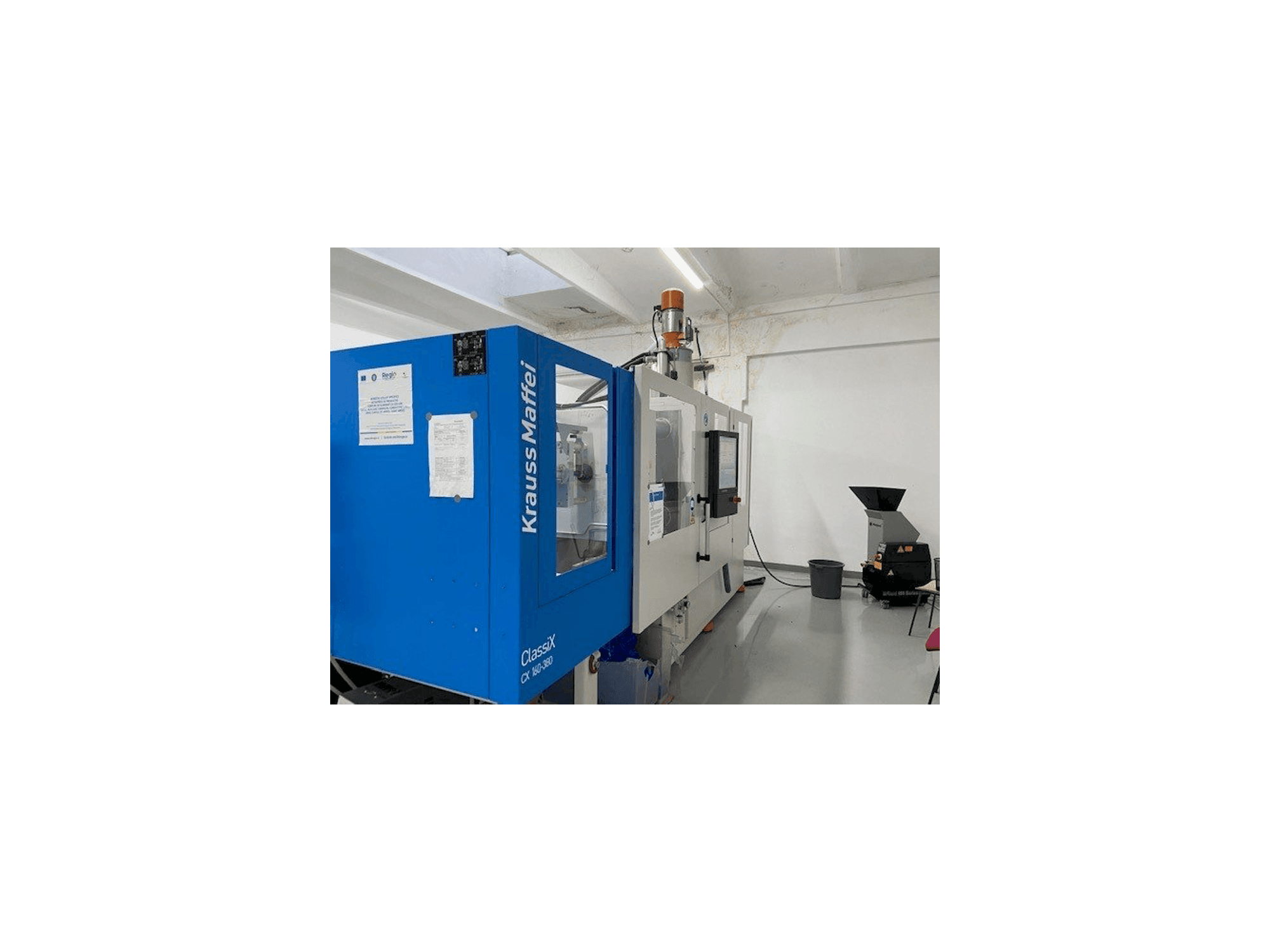

Left side view of Krauss Maffei ClassiX CX 160-380  machine

Krauss Maffei ClassiX CX 160-380

Krauss Maffei - ClassiX CX 160-380

2018

87,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

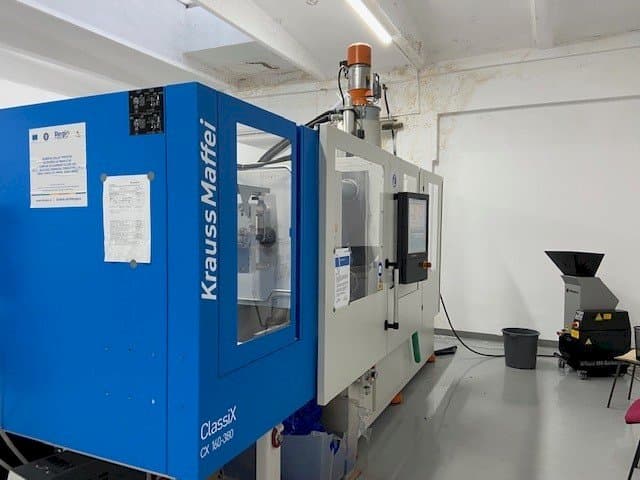

This Krauss Maffei ClassiX CX 160-380 Injection Moulding Machine was made in the year 2019 and has approximately 1600 hours. It is equipped with a Krauss Maffei MC6 control unit. The machine has a clamping force of 1600 kN and a screw diameter of 40 mm.

Overview

  • brand: Krauss Maffei
  • year: 2018
  • MODEL: ClassiX CX 160-380
  • production hours: 1600
  • application type: Injection Moulding
  • Location: Romania
  • machine type: Injection Moulding Machines
  • availability: Immediately
  • control unit brand: Krauss Maffei
  • GINDUMAC ID: RO-INJ-KRA-2018-00001

Technical Information

Control Unit

  • Brand: Krauss Maffei
  • Model: MC6

Injection Unit

  • Screw diameter: 40 mm
  • Stroke volume: 200 CM³
  • Injection pressure: 1800 bar
  • Heating capacity: 5

Clamping unit

  • Clamping force: 1600 kn
  • Ejector stroke: 150 mm
  • Ejector force for / back: 23/10 kn

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Platen size (h): 820x845 mm, platen size (v): 520x520 mm
      • - Min width mould: 300 mm
      • - Max opening width: 950 mm
      • - Hot channel control circuits in the mold: 8
      • - Dryer motan: dryer volume 60l, power 1. 3kw
      • - Feeder motan metro hes: capacity 50kg/h, engine power 1,1kw
      • - Moderation unit reglopals 90smart – 2 pcs: capacity 7l, heating power at 400v 9kw, debit max. : 60l/min, size equipment: 202/560/661 mm, air cooled condenser water chiller will provide a cooling temp between 8 si 20 ̊c 18 kw
      • - Chiller reglochill rc2e 20: cooling power 18kw
      • - Granulator rapid 150-21 deltatech: feeding funnel dimensions: 490x330 mm, cutting chamber dimension: 205x150mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
