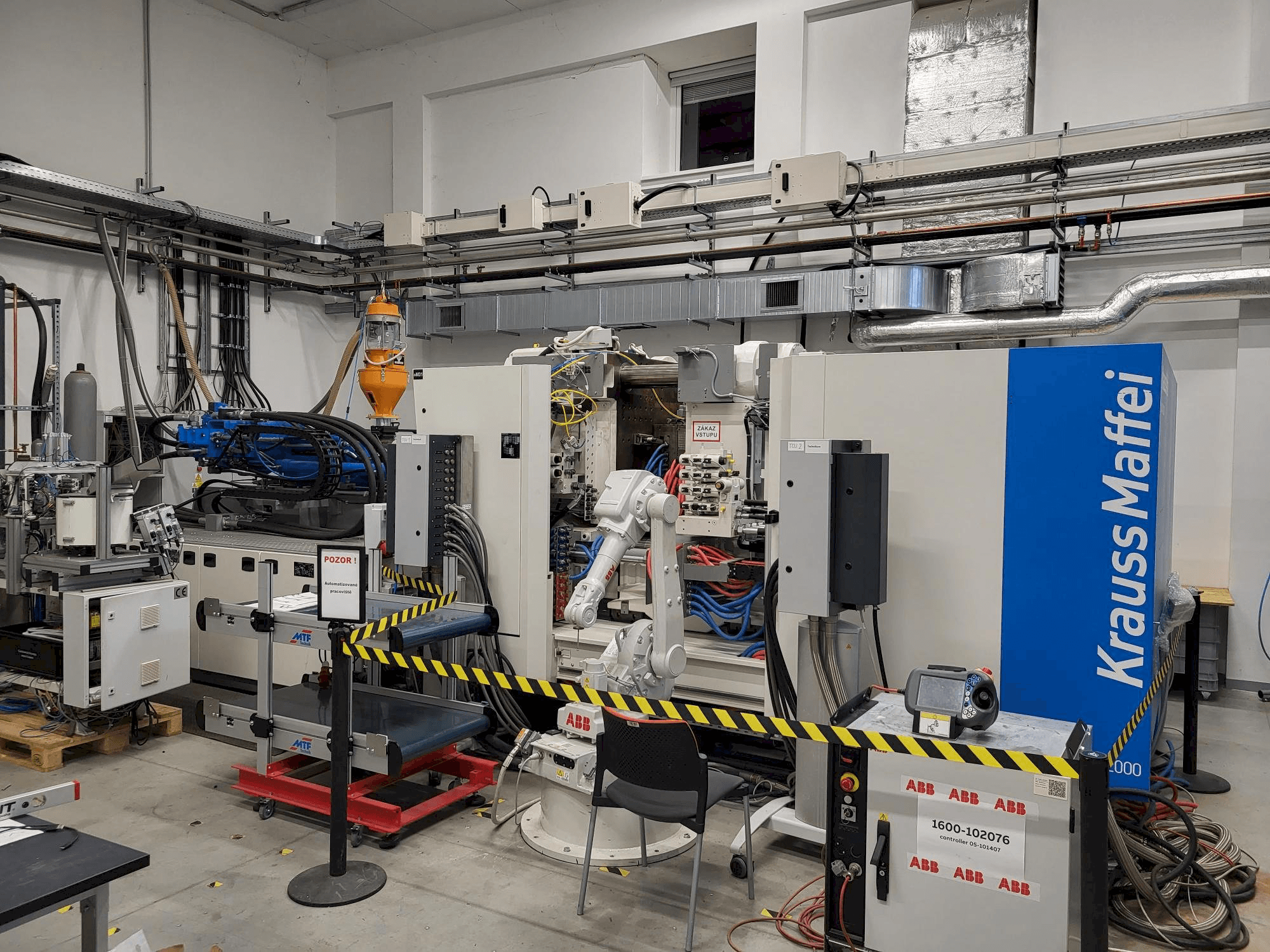

Front view of Krauss Maffei GX 451-2000  machine

Krauss Maffei - GX 451-2000CZ-INJ-KRA-2017-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Krauss Maffei GX 451-2000 injection moulding machine was manufactured in Germany in the year 2017 and has just 660 hours. It is equipped with a Krauss Maffei MC6 control unit. The machine has a clamping force of 4500 kN and screw diameter of 70 mm. Machine is like new.

Overview

  • brand: Krauss Maffei
  • year: 2017
  • MODEL: GX 451-2000
  • production hours: 660
  • application type: Injection Moulding
  • Location: Czech Republic
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold
  • control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei GX 451-2000

General Data

  • Measurements width: 7650 mm
  • Measurements depth: 2800 mm
  • Measurements height: 2390 mm
  • Machine weight: 23000 kg

Control Unit

  • Model: MC6
  • CNC language customizable: Yes
  • Brand: KRAUSS MAFFEI

Injection Unit

  • Screw diameter: 70 mm
  • Shot weight: 981 g/PS
  • Stroke volume: 1078 CM³
  • Injection pressure: 1877 bar
  • Heating capacity: 29.2
  • Adjustable heating zones: 6

Clamping unit

  • Clamping force: 4500 kn
  • Opening stroke: 1250 mm
  • Distance between bars: 1055 x 925 mm
  • Mould height min: 400 mm
  • Mould height max: 900 mm
  • Size of mold platens: 1430 x 1350 mm
  • Ejector stroke: 250 mm
  • Ejector force for / back: 95/49 kn

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Robot interface as per euromap 18, euromap 67
      • - 6 zones hot runner controller
      • - 6-fold water battery
      • - Pump input power 75 kw
    • Qualitative Machine Benefits:
      • - Machine is like new!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
