Krauss Maffei - KM 450-3500 C3PL-INJ-KRA-2008-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Krauss Maffei KM 450-3500 C3 Injection moulding machine

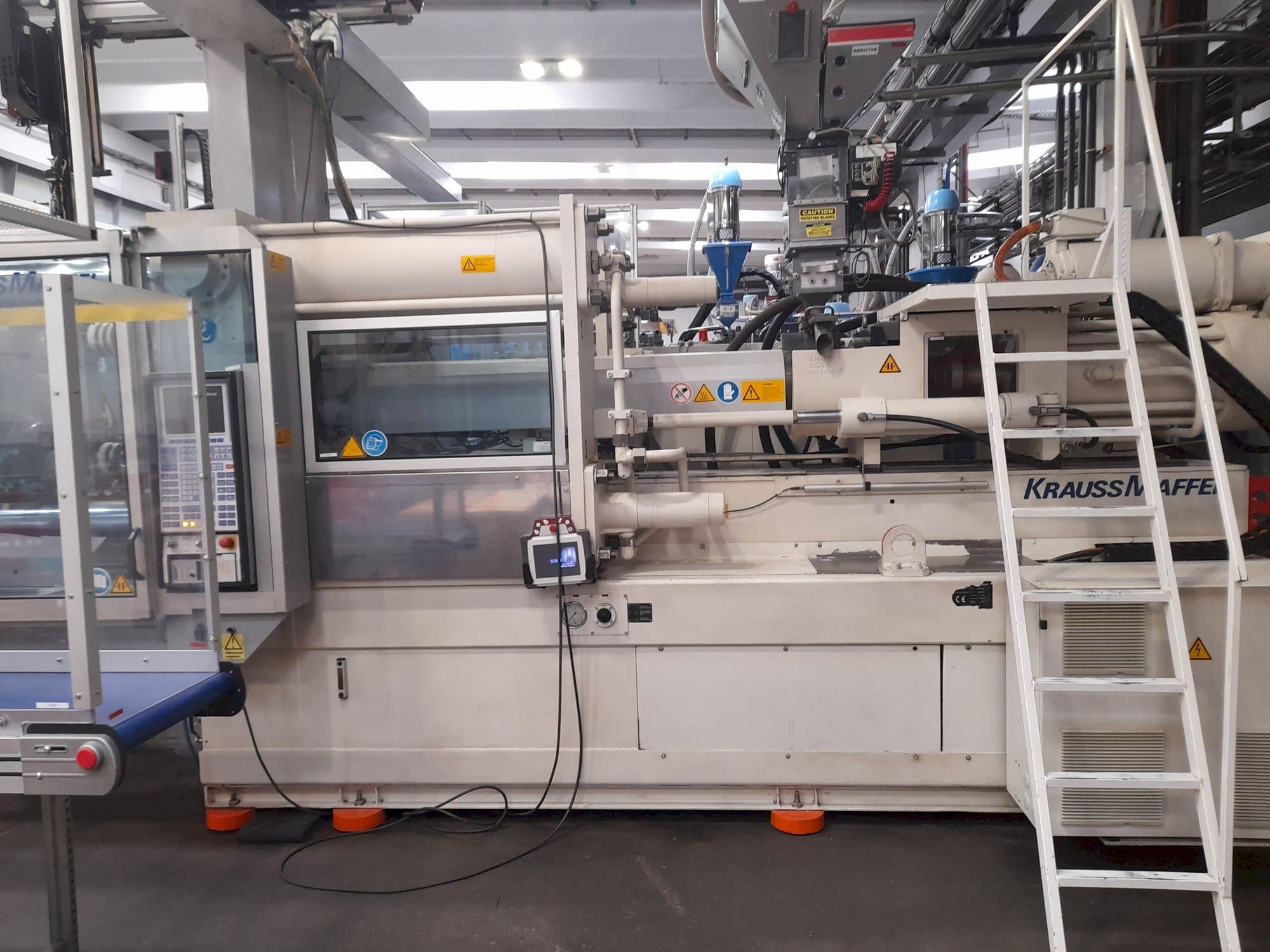

This Krauss Maffei KM 450-3500 C3 Injection moulding machine was built in the year 2008 and has 88518 hours. It is equipped with a Krauss Maffei MC4 control unit. The machine has a clamping force of 5500 kN and a screw diameter of 90 mm.
Overview
- brand: Krauss Maffei
- year: 2008
- MODEL: KM 450-3500 C3
- production hours: 88518
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei KM 450-3500 C3
General Data
- Measurements width: 7990 mm
- Measurements depth: 2560 mm
- Measurements height: 2550 mm
- Machine weight: 26300 kg
Control Unit
- Model: MC4
- Brand: KRAUSS MAFFEI
Injection Unit
- Screw diameter: 90 mm
- Shot weight: 1777 g
- Stroke volume: 1953 CM³
- Injection pressure: 1740 bar
Clamping unit
- Clamping force: 4500 kn
- Opening stroke: 280 kn
Additional Information
- Technical Machine Benefits:
- - Tie bar spacing (h) 900 mm
- - Tie bar spacing (v) 900 mm
- - Platen length: 1270 mm
- - Platen width: 1200 mm
- - Opening of the press: 1170 mm
- - L/d ratio: 23
- - The machine also has a hydraulic ejector, one hydraulic core, one pneumatic core, and sequential double needle closing
- Qualitative Machine Benefits:
- - Ready for tests
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
