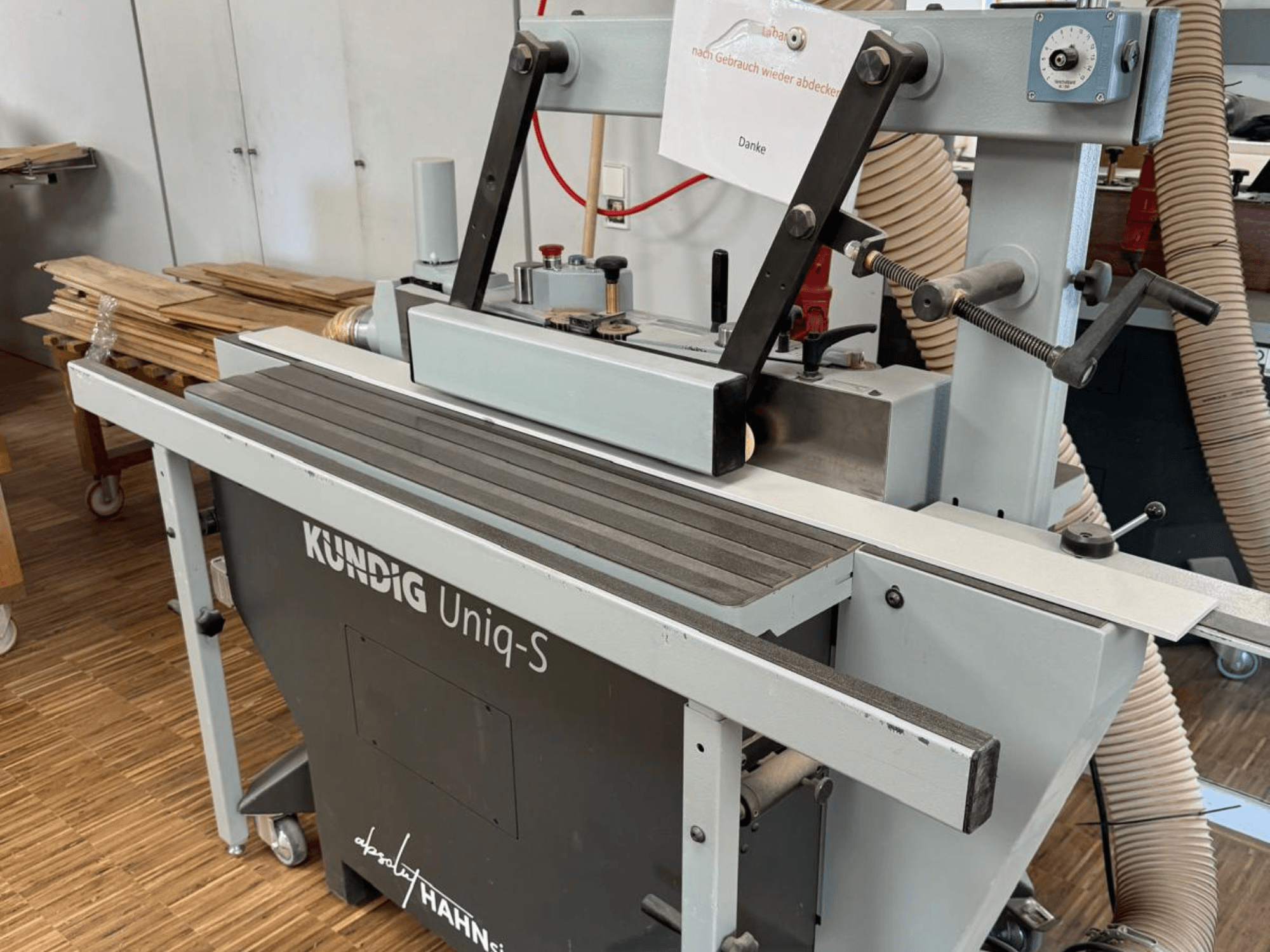

Belt sander manufactured in 2021. This Kundig UNIQ-S features a sanding belt length of 2000 mm and a width range of between 150 mm – 200 mm, making it suitable for solid wood edges, veneered edges, and curved parts. It includes a conveyor feed system with a variable feed speed of 3 – 15 m/min. If you are looking to get high-quality sanding capabilities, consider the Kundig UNIQ-S belt sander we have for sale. Contact us for further details.
Overview
- brand: Kundig
- year: 2021
- MODEL: UNIQ-S
- application type: Sanding
- Location: Germany
- machine type: Belt Sander
- control unit brand:
Technical Information - Kundig UNIQ-S
Dimensions
- Machine Length: 1150 mm
- Machine Weight: 460 kg
- Machine Width: 800 mm
Technical Specification
- Working Length: 2000 mm
- Working Width: 200 mm
Additional Information
Power supply: 3~ 400 V AC
Control voltage: 240 V AC
Frequency: 50 Hz
Max. current: 9.75 A
Rated power: 3.89 kW
Machine configuration: Oscillating edge belt sanding machine
Conveyor feed system integrated in machine stand
Suitable for solid wood edges
Suitable for veneered edges
Suitable for curved and rounded parts
Manual and automatic feeding capability
Oscillation of complete sanding unit
Conveyor belt width: 50 mm
Feed speed: continuously variable 3 – 15 m/min
Work table size: 1180 × 325 mm
Auxiliary table size: 400 × 500 mm
Tilting sanding unit: up to 45°
Main drive motor: 3 kW (4 HP)
Feed motor: 0.55 kW (0.75 HP)
Dust extraction connection: Ø 150 mm
Electrical motor data (feed motor):
Manufacturer: Bonfiglioli Riduttori
Ambient temperature: 40°C
Efficiency class: IE1
Power: 0.55 kW
Speed at 50 Hz: 1380 rpm
Voltage: 230/400 V Δ/Y
Current: 2.68 / 1.55 A
Power factor (cos φ): 0.74
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
