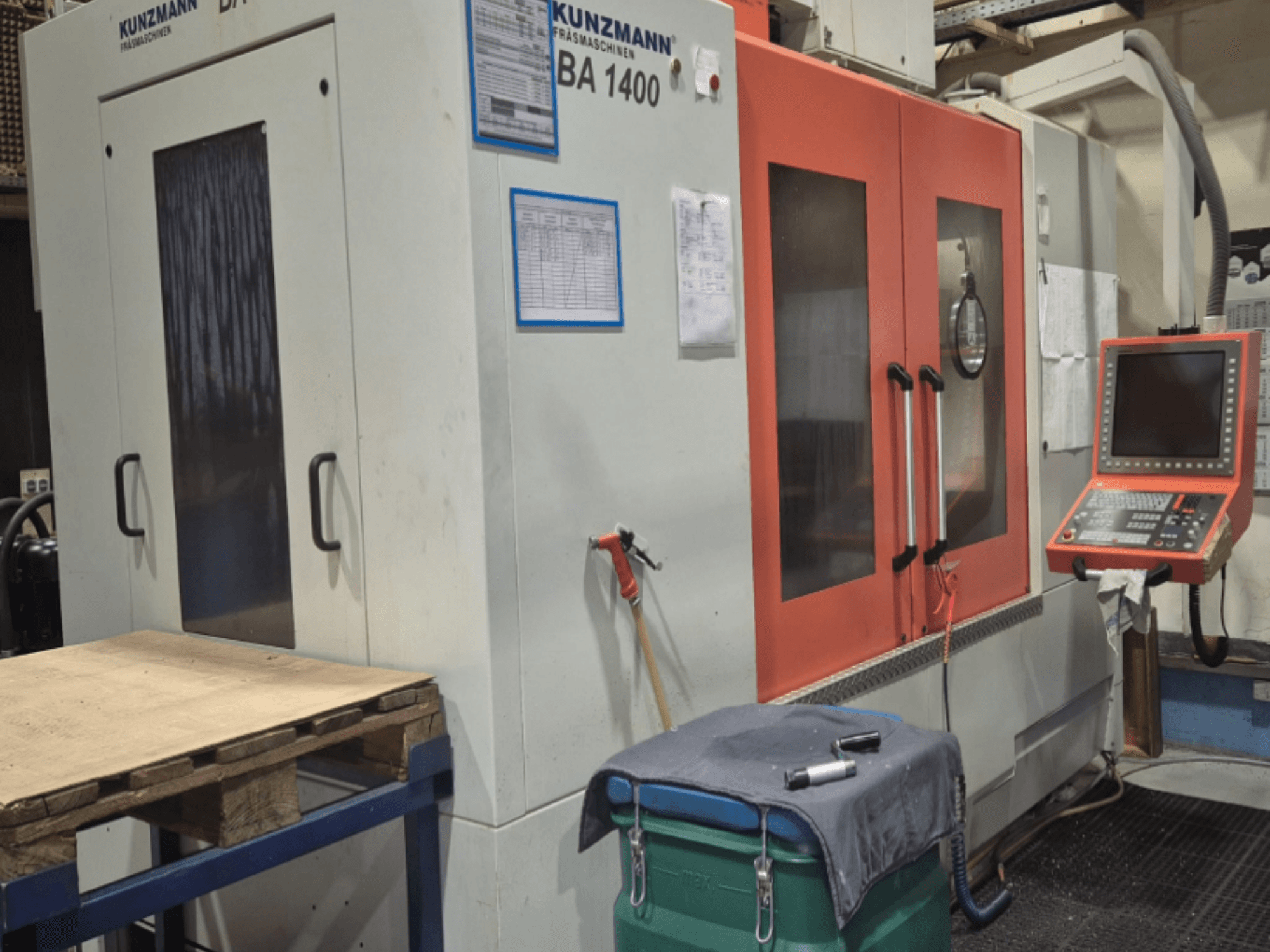

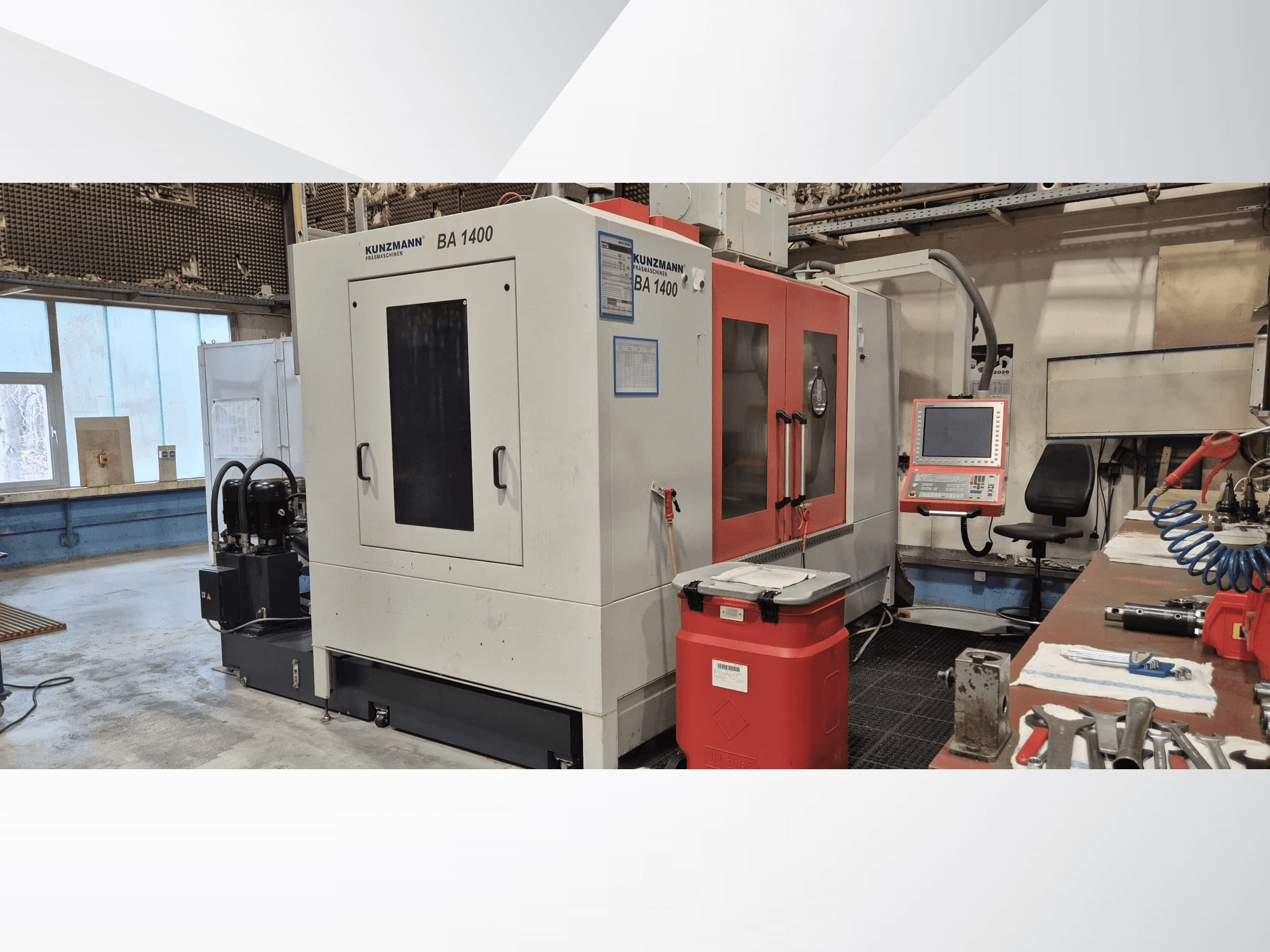

KUNZMANN - BA1400DE-MIL-KUN-2017-00001

Control Heidenhain TNC 640

Standard spindle SK40 (belt-driven)

Spindle taper SK40

Speed 10,000 rpm

Vertical spindle stepless adjustable 20–10,000 rpm

Power 28 kW

Power 100% duty cycle 10.0 kW

Power 40% duty cycle 14.0 kW

Power at 100% duty cycle 20.0 kW

Power at 40% duty cycle 25.0 kW

Torque at milling spindle 100% duty cycle 130 Nm

Torque at milling spindle 40% duty cycle 190 Nm

Torque at milling spindle 100% duty cycle 180 Nm

Torque at milling spindle 40% duty cycle 240 Nm

MAS-BT40 tool holder with pull stud DIN 69872 A

Tool changer 40 positions (chain magazine)

Max tool weight 160 kg

Tool change time 3 sec

Chip-to-chip time 8 sec

Table dimensions 1400 × 710 mm

Max workpiece weight 1500 kg

X-axis travel 1400 mm

Y-axis travel 700 mm

Z-axis travel 760 mm

Working area X-axis 1400 mm

Working area Y-axis 700 mm

Working area Z-axis 750 mm

Spindle to table distance 180–930 mm

Spindle center to column 760 mm

Feed rate X/Y/Z 10 m/min

Rapid traverse X/Y/Z 20 m/minBrushless digital servo motors on all axes

Chip conveyor with coolant tak (LU version)

Coolant through spindle up to 40 bar

Coolant flow rate 25 l/min at 40 bar

Automatic coolant fine filtration 40 µm

Rotating viewing window in front door

Oil mist extraction system with multi-stage filtration (H13 filter)

Electronic handwheel HR 510 FS with integrated buttons and emergency stop

Touch probe TS 460 with radio transmission

Automatic tool measurement Heidenhain TT 46

Measuring accuracy ≤ 15 µm

Max probe deflection 5 mm

Probing speed max 5 m/min

DXF converter software for 2D contour transfer

PC software teleservice for remote diagnostics and maintenance

Operating voltage 400 V 50 Hz

Power consumption 35 kVA

Control voltage 24 V

Machine weight approx. 8.5 t

Machine weight approx. 12000 kg

Machine dimensions approx. 4.20 × 2.45 × 3.09 m
