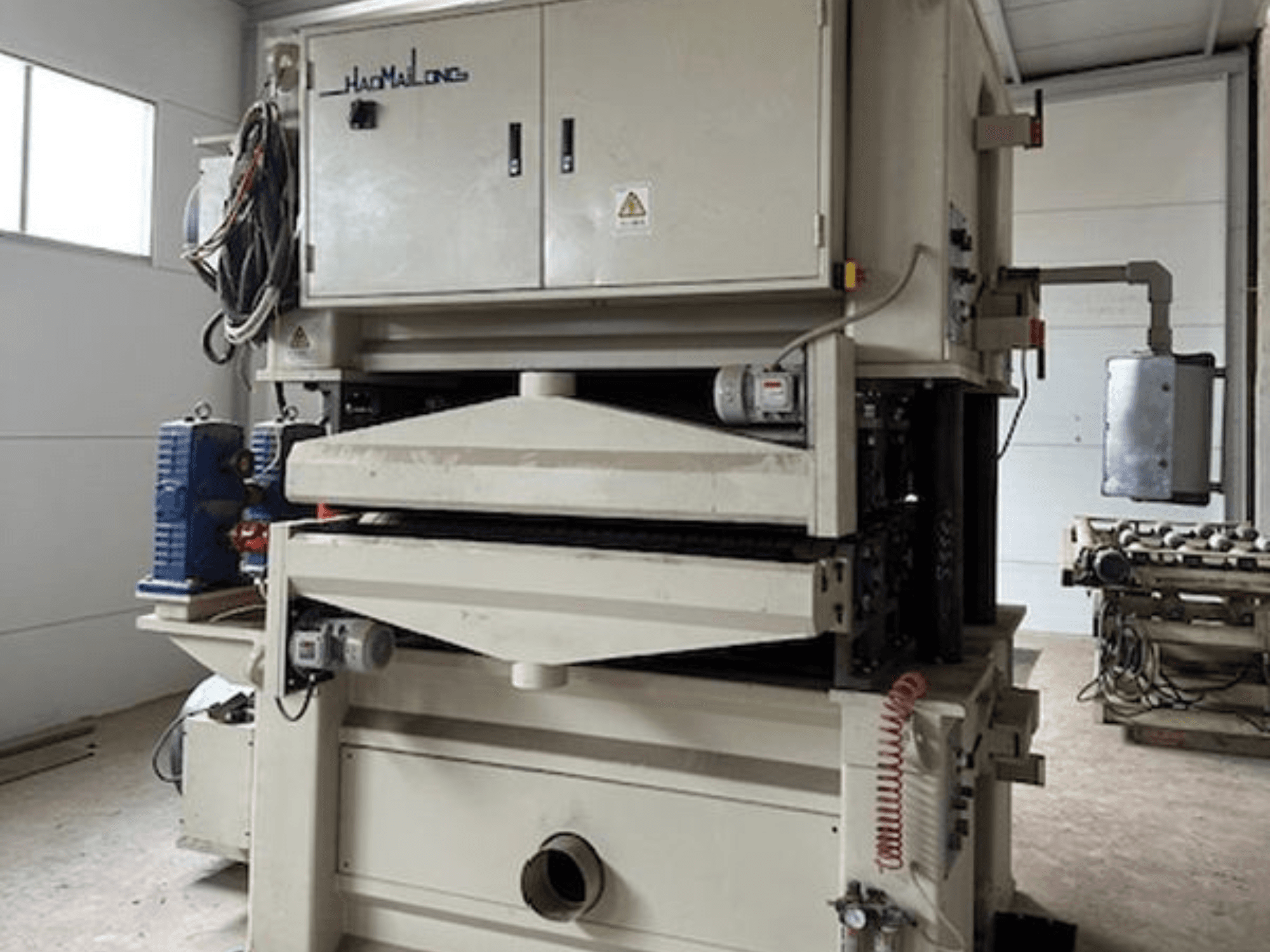

Belt sander manufactured in 2019. This Lingi Jianzhong BSG2613C features a maximum working width of 1300 mm and a processing thickness range of 5-80 mm. It includes a grinding belt dimension of 1350x2800 mm and operates at a speed of 31 m/s. If you are looking to get high-quality sanding capabilities, consider the Lingi Jianzhong BSG2613C machine we have for sale. Contact us for further details.
Overview
- brand: LINGI JIANZHONG
- year: 2019
- MODEL: BSG2613C
- application type: Sanding
- Location: Poland
- machine type: Belt Sander
Technical Information - LINGI JIANZHONG BSG2613C
Dimensions
- Machine Height: 3000 mm
- Machine Length: 3100 mm
- Machine Weight: 14500 kg
- Machine Width: 2100 mm
Technical Specification
- Working Width: 1300 mm
Additional Information
Condition: Not rebuilt, without warranty
Technical specifications:
Processing thickness: 5–80 mm
Minimum processing length: ≥ 780 mm
Machining accuracy: ±0.08 mm
Grinding belt dimensions: 1350 × 2800 mm
Grinding belt speed: 31 m/s
Roller diameter: 2 × Ø320 mm
Total power: 165 kW
Main motor power: 2 × 75 kW
Feed motor: 11 kW
Lift motor: 2 × 0.75 kW
Brush motor: 2 × 0.75 kW
Feed speed: 10–30 m/min
Operating air pressure: 0.5–0.8 MPa
Dust extraction requirement: 24,000 m³/h
Voltage: 380 V, 50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
