Lodi RTR S800 CNC
Lodi - RTR S800 CNC
2000
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Lodi RTR S800 CNC Grinding Machine

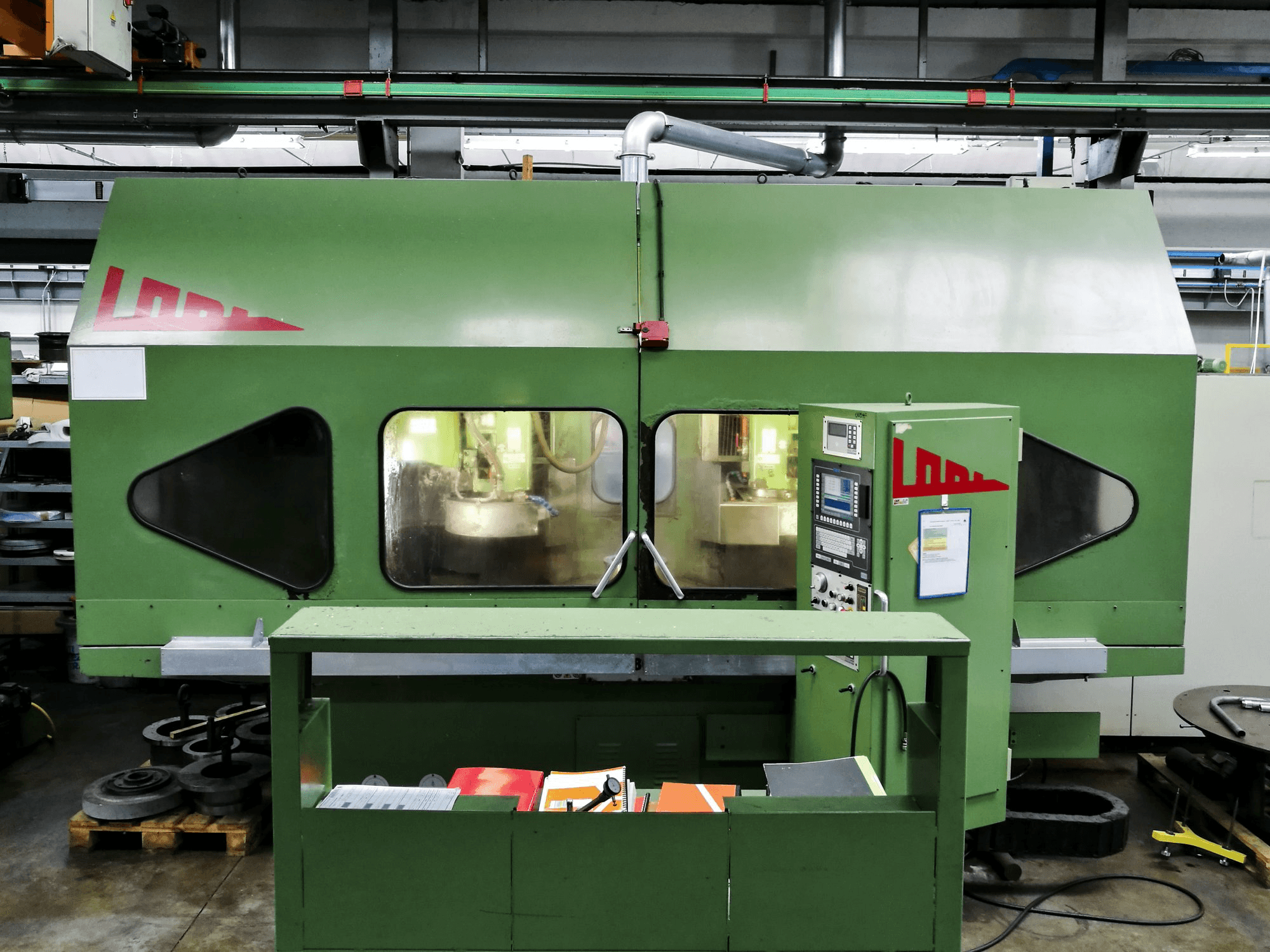

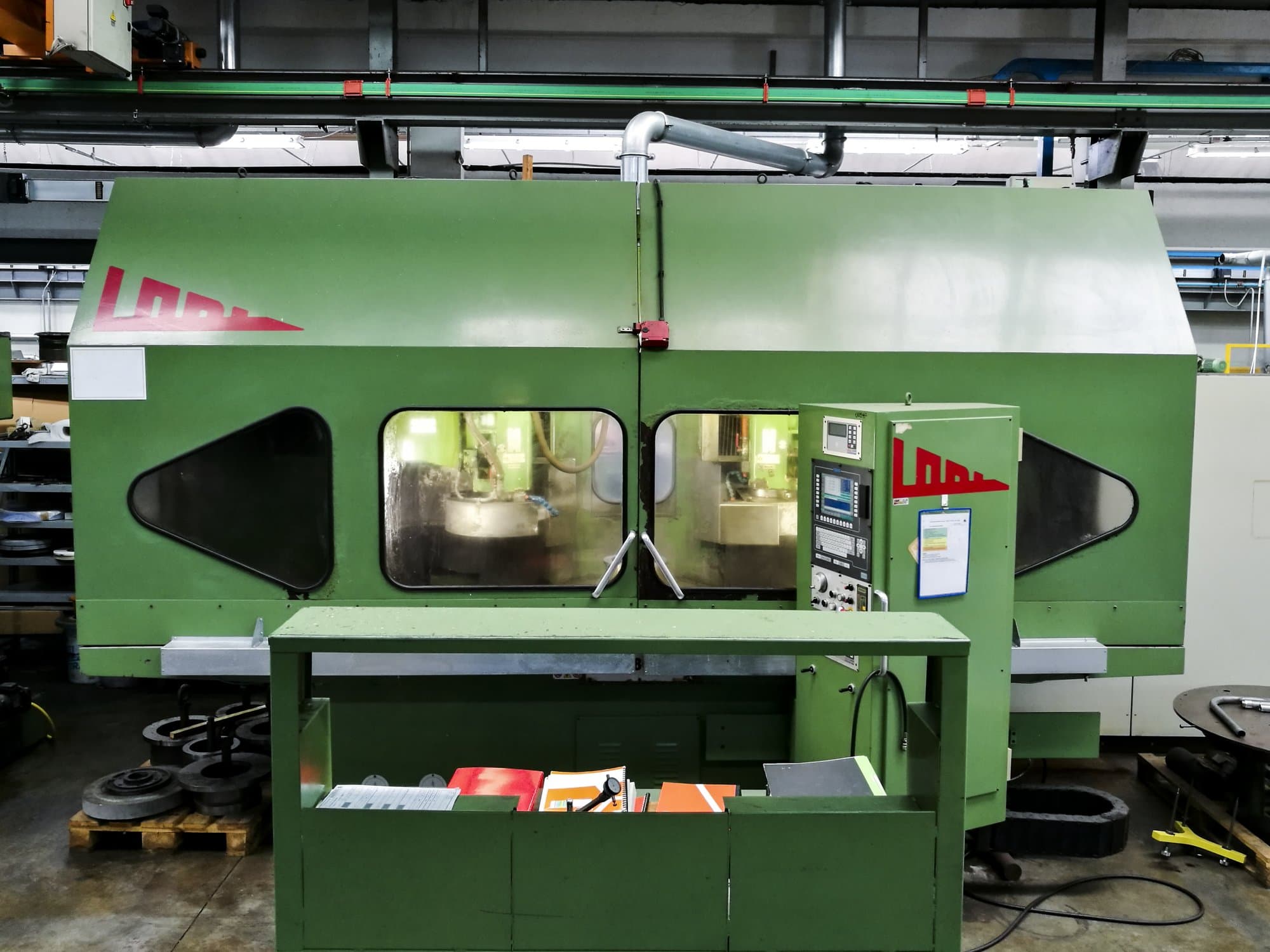

This Lodi RTR S800 CNC Grinding Machine was built in Italy in 2000. It is equipped with a Tecnel T2010 Control unit and two grinding wheels for a fluent working process. This equipment comes with an incorporated, wheel-shaping diamond tool for special piece production. In the past, this Lodi Grinding machine has been working mostly on steel parts for textile industry machinery.
Overview
- brand: Lodi
- year: 2000
- MODEL: RTR S800 CNC
- application type: Grinding
- Location: Italy
- machine type: Grinding machines
- availability: Sold
- control unit brand: TECNEL
- GINDUMAC ID: IT-GRI-LOD-2000-00001
Technical Information
General Data
- Measurements width: 6300 mm
- Measurements depth: 2300 mm
- Measurements height: 2950 mm
- Machine weight: 13500 kg
Control Unit
- Brand: Tecnel
- Model: T2010
Main drive
- Number of spindles: 2
- Spindle speed range: 2100 1/min
- Spindle motor power: 15 kW
Movement
- X-AXIS Movement: 4000 mm
- X-AXIS Rapid traverse: 3 m/min
- Y-AXIS Movement: 5000 mm
- Y-AXIS Rapid traverse: 5 m/min
- Z-AXIS Movement: 1000 mm
- Z-AXIS Rapid traverse: 0.5 m/min
- W-Axis Movement: 1000 mm
- W-Axis Rapid traverse: 3 m/min
Workpiece
- Workpiece drm: 1000 mm
Table
- Outer length: 800 mm
Tools
- Max tool diameter: 500 mm
- Max tool length: 203 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 55 kVA
- Lubrication tank: 25 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
