- ➤ Used LORENZ LS 424 - Shaper For Sale | gindumac.com

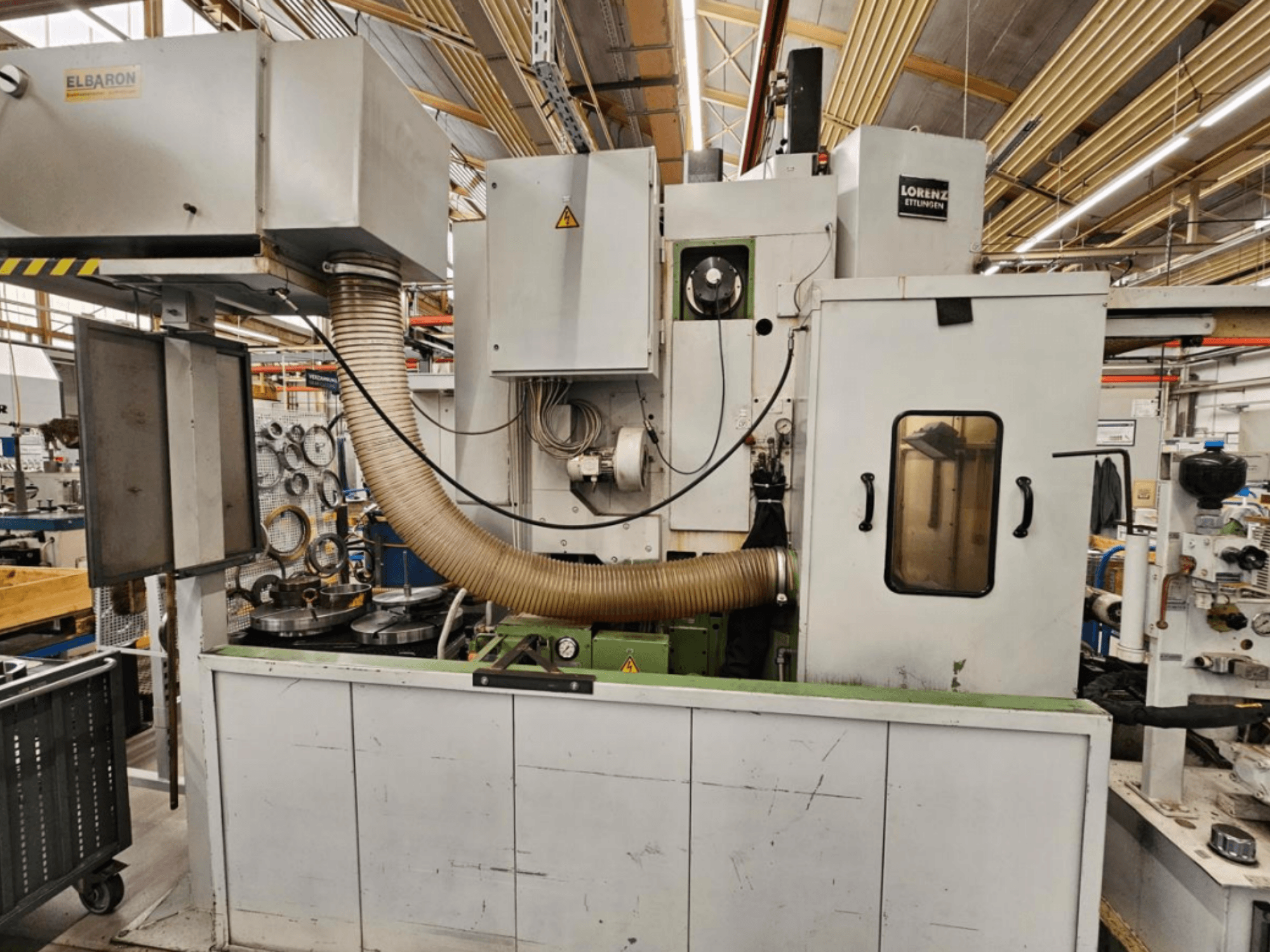

This 3-axis LORENZ LS 424 shaping machine was manufactured in 1990. It features a maximum wheel diameter of 420 mm and a stroke rate of 32 - 800 strokes/min. The machine has an impressive X-travel of 360 mm and a Z-travel of 154 mm, with a maximum table load of 1000 kg. If you are looking to get high-quality shaping capabilities, consider the LORENZ LS 424 machine we have for sale. Contact us for further details.
Overview
- brand: LORENZ
- year: 1990
- MODEL: LS 424
- application type: Shaping & Planing
- Location: Germany
- machine type: Shaping Machine
Technical Information - LORENZ LS 424
Dimensions
- Machine Height: 3400 mm
- Machine Length: 5300 mm
- Machine Weight: 9000 kg
- Machine Width: 3900 mm
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 360 mm
- Z-axis Travel: 154 mm
Additional Information
- Control Defect: Control unit reported as defective
- Wheel Diameter Max.: 420 mm
- Wheel Width: 120 mm
- Module Max.: 8
- Module Min.: 0.5
- Control Unit: BWO CNC
- Stroke Rate: 32 - 800 strokes/min (infinitely variable 25 - 800 strokes/min)
- Total Power Requirement: 50 kW
- Machine Elevation: 200 mm
- X-Travel: 360 mm
- Z-Travel: 154 mm
- L-Travel: 137 mm
- External Gear Cutting Max. Outer Diameter: 420 mm
- Internal Gear Cutting Max. Inner Diameter: 370 mm
- Workpiece Outer Diameter: 420 mm
- Max. Stroke Length: 130 mm
- Wiring Diagram: E8-01-001-013-0
- Additional Equipment: Straight Guide, Leveling Feet
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
